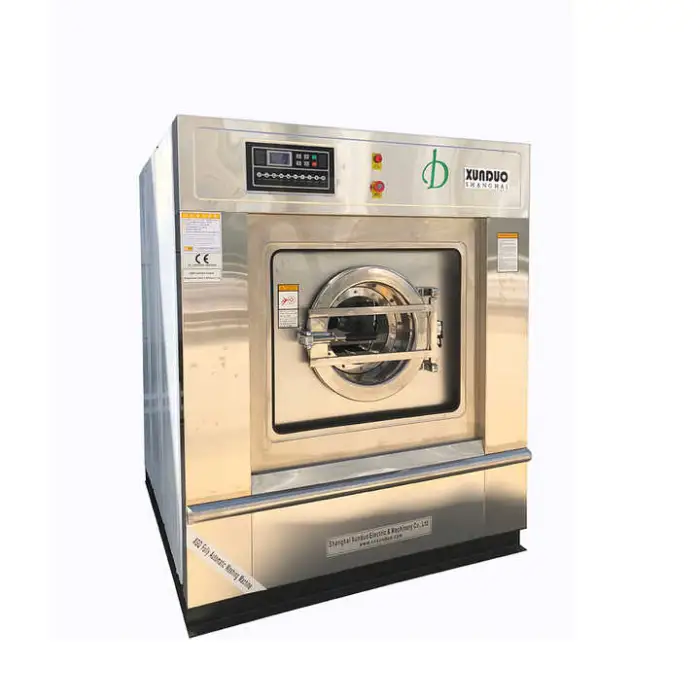

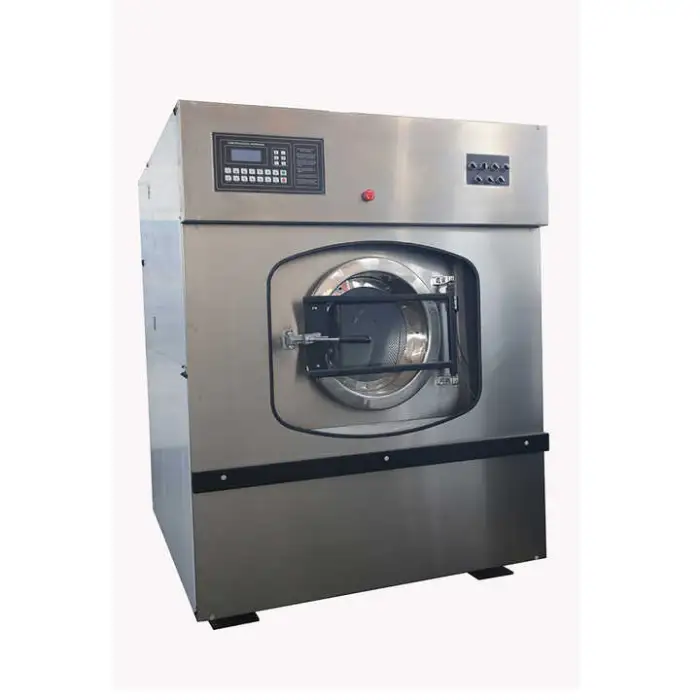

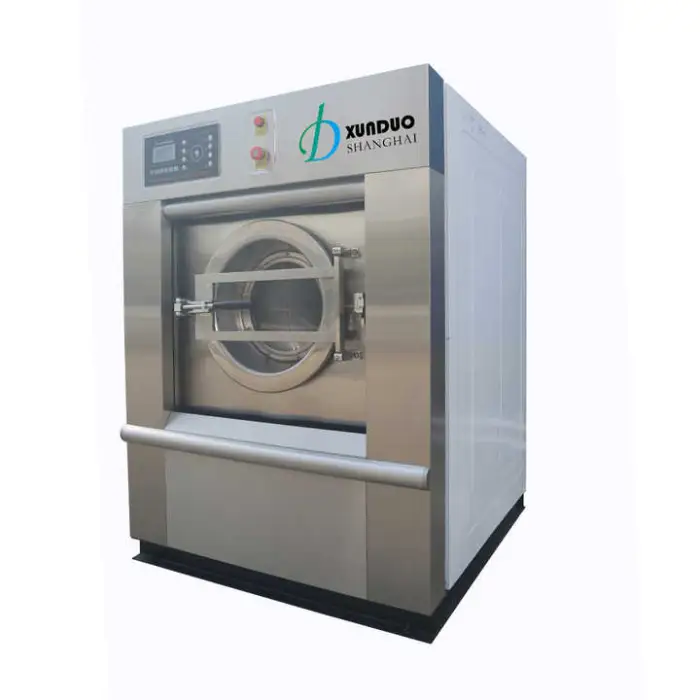

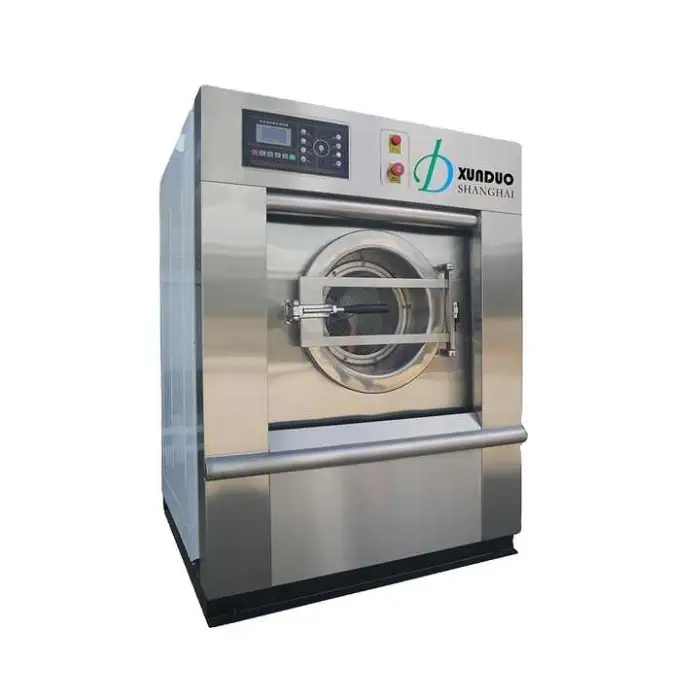

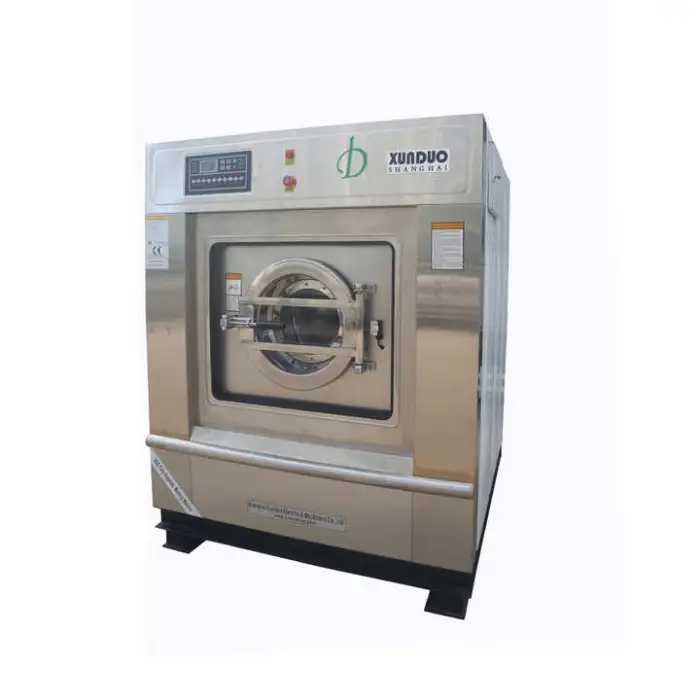

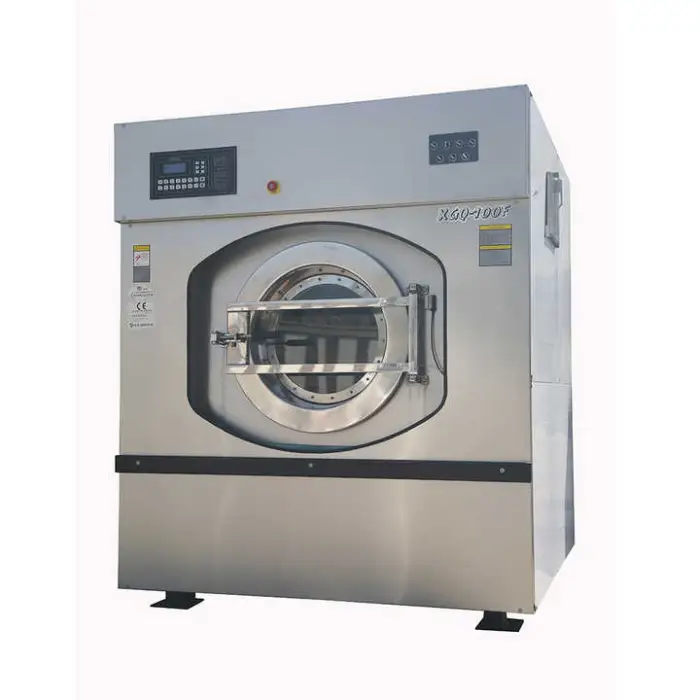

XGQ-100F Industrial Washer Extractor (100kg Capacity)
- Section : Machinery
- Category : Cleaning Equipment
- SKU : 62177837448
The XGQ-100F industrial washer extractor is a high-capacity, fully automatic laundry solution designed for hotels, hospitals, factories, and large-scale commercial laundry operations. With a washing capacity of up to 100kg, this robust and efficient machine combines advanced technology, user-friendly controls, and reliable performance to deliver superior washing and extracting results.
Specifications
| Parameter | Value |
|---|---|
| Model | XGQ-100F |
| Washing Capacity | 80–100 kg |
| Drum Size (mm) | Φ1200 × 850 |
| Drum Volume | 1010 L |
| Washing Speed | 36 rpm |
| Extracting Speed | 308/660 rpm |
| Rated Voltage | 220V / 380V / 415V |
| Motor Power | 7.5 kW |
| Inverter Power | 11 kW |
| Water Inlet Size | 2 inch |
| Steam Inlet Size | 1 inch |
| Electric Heating Power | 48 kW |
| Steam Pressure | 0.3–0.5 MPa |
| Air Pressure | 0.4–0.6 MPa |
| Machine Dimensions | 1770 × 1860 × 2100 mm |
| Net Weight | 3500 kg |
| Packaging | Fumigated wooden case |
Key Features
- Large Capacity: Supports 80–100kg per load with a drum volume of 1010L
- Fully Automatic Control: Microprocessor system with 5 standard and up to 25 programmable cycles
- Durable Construction: Stainless steel inner drum and outer panel ensure a long service life and excellent resistance to corrosion
- Suspension System: Full suspension design with shock absorbers and springs—no heavy foundation required
- Inverter Control: High-quality inverter system allows stepless speed adjustment for washing and extracting
- Precision Engineering: Imported bearings and built-out lubrication system for simplified maintenance
- Dual Heating Options: Available in electric (48kW) or steam (0.3–0.5MPa) heating options
- Safety Interlocks: Door interlock system ensures safe operation
Applications
- Ideal for commercial laundries.
- Perfect for hotels and resorts.
- Suitable for hospitals and healthcare facilities.
- Used in industrial settings for uniform and garment cleaning.
- Great for cleaning sports and gym equipment.
Choose our Industrial
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the washing capacity of the XGQ-100F?
The XGQ-100F supports a washing capacity of 80–100 kg per load with a drum volume of 1010 L.
2. What are the machine dimensions and weight?
Overall dimensions are 1770 × 1860 × 2100 mm and the net weight is 3500 kg.
3. What electrical supply and power specifications does it require?
Rated voltage options are 220 V / 380 V / 415 V. Motor power is 7.5 kW and inverter power is 11 kW. Electric heating option is 48 kW. Confirm the appropriate supply and phase with your electrical contractor.
4. What heating options are available?
The machine is available with electric heating (48 kW) or steam heating. Steam inlet requirements are 0.3–0.5 MPa.
5. What are the drum speeds (wash and extract)?
Washing speed is 36 rpm. Extracting speeds available are 308 rpm and 660 rpm, selectable via the inverter control for stepless adjustment.
6. What utility connections and sizes are required?
Water inlet size: 2 inch. Steam inlet size (if fitted): 1 inch. Required air pressure: 0.4–0.6 MPa. Ensure an appropriate industrial drain and utility hookups are available on site.
7. Does the XGQ-100F require a heavy concrete foundation?
No heavy foundation is required. The machine uses a full suspension design with shock absorbers and springs, allowing installation without a deep concrete pit in most installations. Local site conditions may still require minor anchoring or a level platform.
8. What type of control system and programmability does it have?
It uses a microprocessor control system with 5 standard programs and up to 25 programmable cycles, enabling customized wash profiles for different linen types.
9. What materials and construction features improve durability?
The XGQ-100F features a stainless steel inner drum and outer panel for corrosion resistance, imported bearings, and a built-out lubrication system to simplify maintenance and extend service life.
10. What safety features are included?
Key safety features include a door interlock system to prevent door opening during operation and a suspension system with shock absorbers to minimize vibration and movement during spin cycles.
11. What routine maintenance is recommended?
Routine checks include inspecting suspension components and shock absorbers, verifying bearing lubrication, checking inlet/discharge connections, and reviewing control panel error logs. For detailed schedules and procedures, follow the manufacturer's maintenance manual or contact your service provider.
12. What types of facilities and linen is this machine suitable for?
Ideal for commercial laundries, hotels and resorts, hospitals and healthcare facilities, industrial uniform and garment cleaning, and sports or gym equipment laundering—any high-volume laundry operation requiring up to 100 kg per load.
13. How is the machine packaged and what are shipping/unloading considerations?
The machine is packaged in a fumigated wooden case. With a net weight of 3500 kg, plan for appropriate lifting/unloading equipment (crane or heavy-duty forklift) and personnel to handle on-site positioning.
14. How does the inverter control benefit performance?
The high-quality inverter allows stepless speed adjustment for precise wash and extraction speeds, improved process control, gentler handling of fabrics, and better water extraction efficiency compared with fixed-speed drives.
15. Where can I get warranty information, spare parts, or service support?
Warranty terms, spare parts availability, and authorized service support vary by supplier and region. Contact your XGQ dealer or the manufacturer directly for specific warranty details, spare parts lists, and local service partners.
