High-Efficiency Pesticide Spraying Machine
- Section : Machinery
- Category : Sprayers
- SKU : 1600723760399

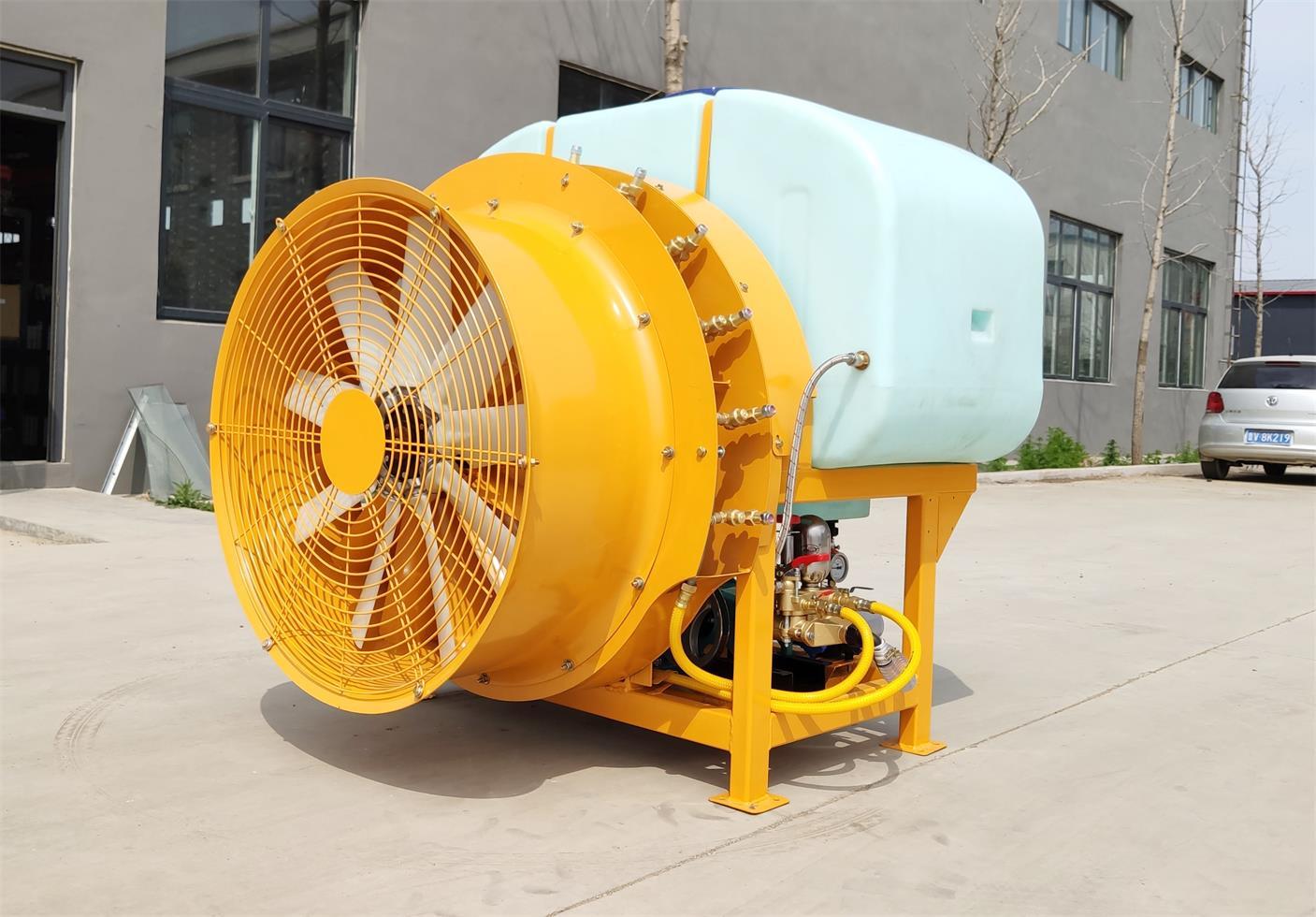

High-Efficiency Pesticide Spraying Machine
Introducing the High-Efficiency Pesticide Spraying Machine from Geetien/OEM! This advanced sprayer is designed to deliver exceptional productivity for all your pesticide application needs.
Key Features
High Productivity: Engineered for efficient performance, this machine ensures you can cover large areas quickly and effectively.
Core Components: Equipped with a powerful pump and PLC, it offers reliable operation and precise control during use.
Weight: The machine weighs 324.2 kg, providing stability during operation.
Diameter: Featuring a 10-inch diameter, it is suitable for various applications.
Application: Specifically designed for spraying pesticide liquid, it is ideal for agricultural use.

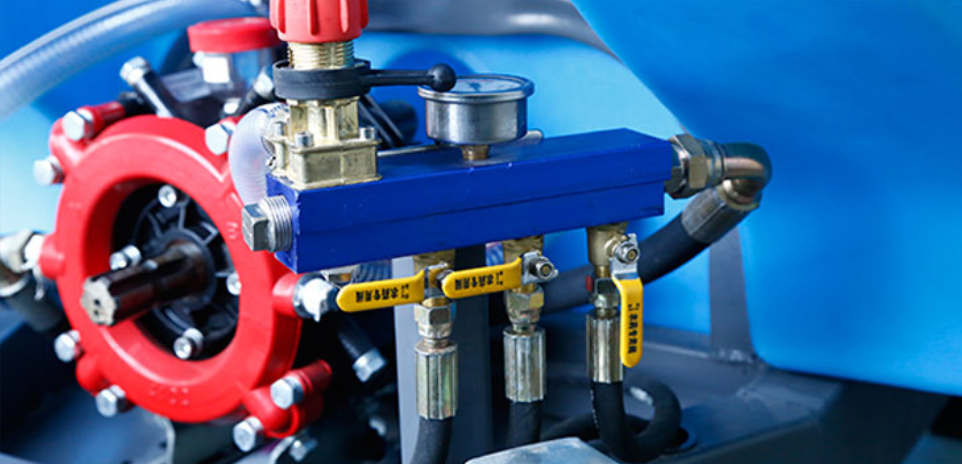

Sprayer Pump: The machine includes a 3-cylinder plunger pump, ensuring consistent pressure and performance.
Sprayer Range: Achieves a spraying height of 2-5 meters and a width of 6-10 meters, allowing for wide coverage.
Overall Size: The machine measures 136012001300 mm, making it compact yet efficient.

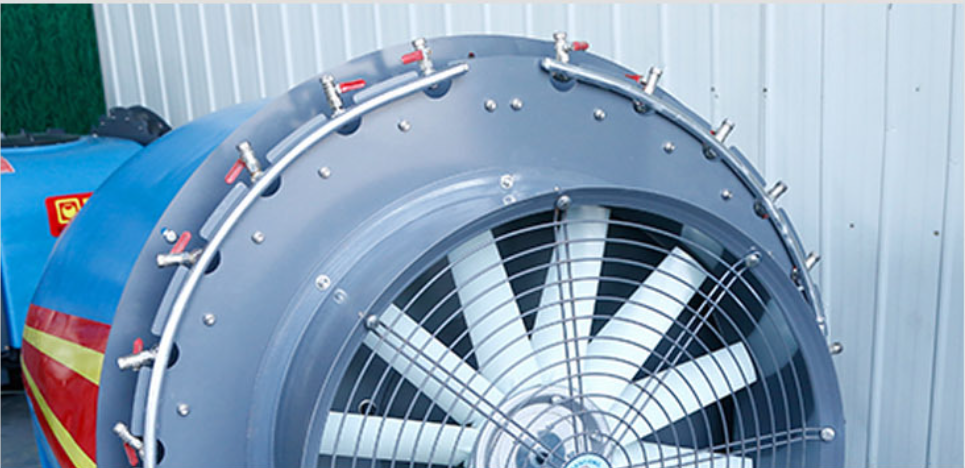

Fan Diameter: An 800 mm fan diameter enhances spraying efficiency and coverage.
Spray Control Type: Features sectional control with an independent switch, giving you flexibility in operation.
Work Pressure: Operates at a pressure range of 0.3-2.5 MPa, ensuring effective application.
Gearbox: The autonomous design of the gearbox contributes to smooth operation and longevity.
Work Width: Covers a width of 14-20 meters, maximizing your spraying efficiency.
Conclusion
The High-Efficiency Pesticide Spraying Machine (Brand: Geetien/OEM) is the perfect solution for anyone looking to enhance their pesticide application process. With its advanced features and robust design, you can achieve high productivity while ensuring effective spraying results. Invest in this reliable machine to improve your agricultural operations today!
Product Info Gallery
Manufacturing Technique
| Supporting power | Tractors over 40 hp |
| Fan speed | 1800r/pm |
| blade diameter | 1000mm |
| medicine pump | triple cylinder plunger pump |
| pump pressure | (0-4) mpa |
| flow | 100-120 (L-min) |
| medicine box capacity | 3000L |
| stirring method | return water stirring+negative pressure mixed flow stirring |
| filter method | tertiary filtration |
| air deflector type | D120 type rotary wind deflector |
| rectifier type | L8410 forced rectifier (8 fractions) |
| nozzle type | Three in one precision nozzle |
| dimensions (L)X(W)X(H) | 4200 x 1720 x 1910 mm |

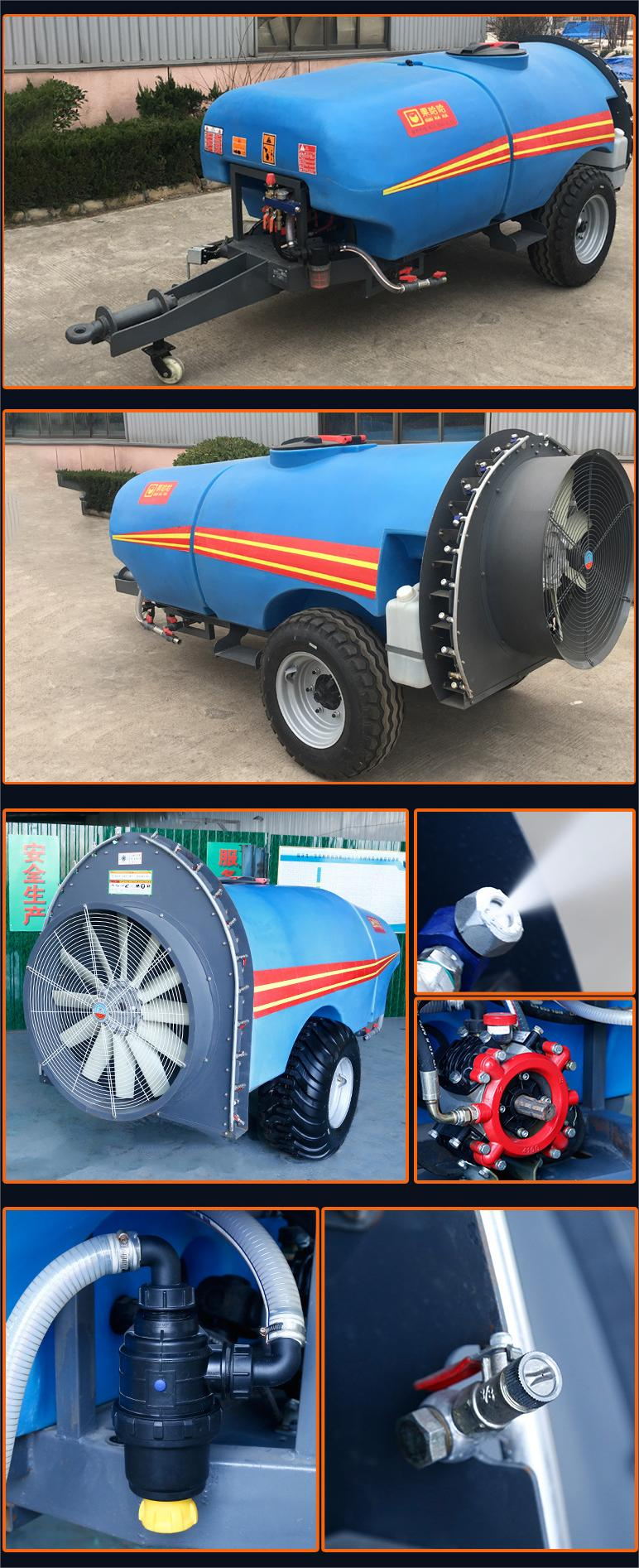

Product Description
Engine power, strong horsepower, sprayed water with a longer range and a wider coverage area.
The nozzle can be adjusted at will, and multiple nozzles are designed to spray more uniform, finer and more efficient.

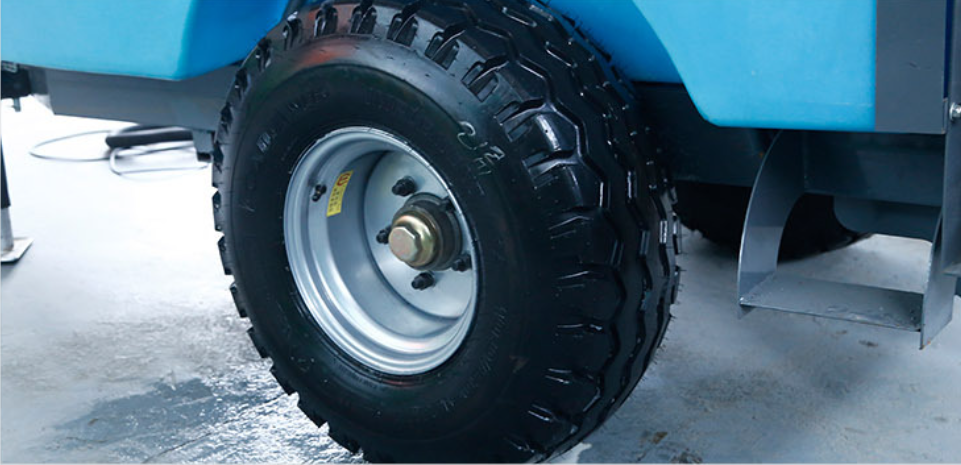

Heavy-duty rubber widened vacuum tyres, non - slip and wear - resistant.

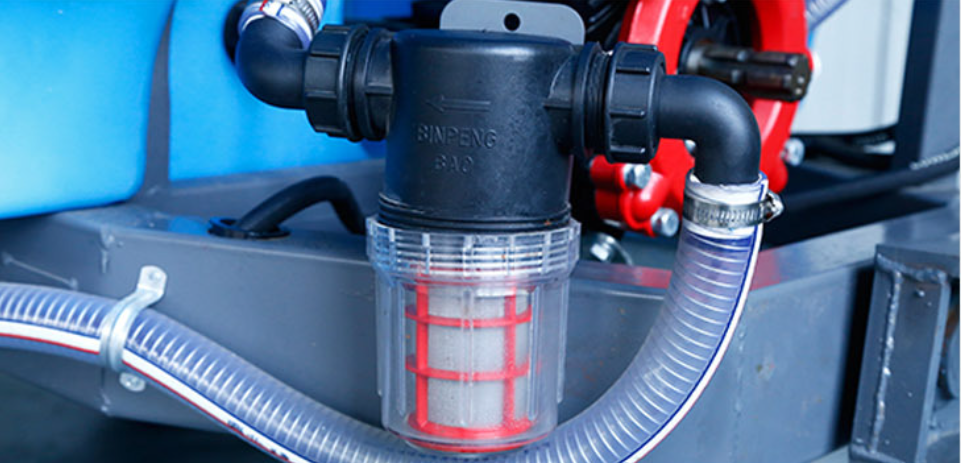

Filtration design, can filter out smaller debris, can protect the nozzle from clogging.
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the High-Efficiency Pesticide Spraying Machine designed for?
This machine is designed for efficient agricultural pesticide liquid application over large areas, providing broad coverage, adjustable spray patterns and precise control for orchards, fields and plantations.
2. What are the key performance specifications (coverage, height, width)?
Typical spray height is 2–5 meters and spray width per fan is 6–10 meters. Overall working width is stated as 14–20 meters depending on configuration and nozzle setup.
3. What power source and tractor requirement does it need?
The unit is driven by a tractor power take-off; recommended supporting power is tractors over 40 hp.
4. What pump does the sprayer use and what are its flow and pressure ratings?
It uses a triple (3-cylinder) plunger pump with flow about 100–120 L/min. Pump pressure is specified up to 0–4 MPa in some references; typical operating work pressure range is 0.3–2.5 MPa for normal spraying.
5. What is the tank capacity and stirring/filtration system?
Standard medicine (chemical) tank capacity is 3000 L. Stirring uses return-water stirring plus negative-pressure mixed-flow stirring. Filtration is a tertiary filtration system to protect nozzles from clogging.
6. What fan and nozzle features improve spray uniformity?
The machine has a large fan (800–1000 mm diameter depending on model) with variable-speed capability (e.g., 1800 rpm listed) and uses three-in-one precision nozzles. Nozzles are adjustable and multiple-nozzle design improves droplet fineness and uniform coverage.
7. How is spray control handled?
Spray control is sectional with independent switches, allowing you to open/close fan/nozzle groups for precise, zone-specific application. A PLC is included for reliable control and automation of operations.
8. What are the physical dimensions and weight?
Weight is approximately 324.2 kg. Two sets of dimensions are referenced in product materials: a compact listing (likely chassis dimensions) of roughly 1360 x 1200 x 1300 mm and a full mounted machine dimension of 4200 x 1720 x 1910 mm. Final size depends on configuration—confirm the exact model dimensions with the supplier before purchase.
9. Is the gearbox integrated or independent and how does that affect maintenance?
The gearbox is described as autonomous (independently designed), which generally simplifies maintenance and improves durability; follow the gearbox service schedule in the operator manual for lubrication and inspection intervals.
10. What tires and chassis durability features does the machine have?
It uses heavy-duty widened vacuum rubber tires that are slip- and wear-resistant, providing good stability and traction during field operations.
11. What safety features should operators follow when using this sprayer?
Operators should use appropriate personal protective equipment (PPE), keep bystanders away from spraying, follow chemical label directions, ensure proper pressure and nozzle selection, shut off sections when turning or transporting, and perform pre-operation checks of hoses, filters and seals.
12. How do I maintain and clean the nozzles and filter system?
Regularly rinse the tank and circulation lines after each use, remove and inspect nozzles for wear or clogging, clean filters and strainers (tertiary filtration stages) frequently, and replace worn nozzles to maintain droplet size uniformity and correct flow rates.
13. Can the sprayer be customized or ordered as OEM/brand Geetien?
Yes—the product is available under Brand Geetien and OEM configurations. Contact the manufacturer or authorized dealer to discuss customization options (tank size, fan diameter, nozzle packages, control systems) and lead times.
14. What spare parts and after-sales support are available?
Common spare parts include nozzles, filters, pump seals, hoses and gearbox components. Ask your supplier about spare parts kits, recommended service intervals, local service centers and warranty coverage when ordering.
15. How do I choose the right nozzle type and operating pressure for my application?
Select nozzle type and size based on desired droplet size, application rate and crop/target pest. Use the machine's pressure range (recommended 0.3–2.5 MPa for normal spraying) and pump flow to match the nozzle manufacturer's charts. For best results, consult the nozzle chart and perform field tests at various pressures.
