The 13 Inches Brush Ride on Floor Scrubber is designed for heavy-duty cleaning of large indoor areas such as workshops, warehouses, retail stores, parking garages, schools, and hospitals. It performs wet scrubbing with cold water and cleaning solution.
Key specs: 1800 W motor, weight 420 kg, dimensions 1850×1350×1500 mm, scrubbing width 1000 mm, squeegee width 1350 mm, two 500 mm disc brushes, solution tank 240 L, recovery tank 260 L, running time 3–4 hours, forward speed 0–9 km/h, working efficiency up to 9000 m²/h.
Clean-In-Place means certain tanks and internal fluid lines can be rinsed and cleaned without disassembling the equipment, simplifying maintenance of the solution and recovery systems.
The machine is offered with either maintenance-free lead-acid or lithium battery options. The listed battery capacity is 48V/150Ah, providing an operating time of approximately 3–4 hours per full charge depending on speed and working conditions.
Working efficiency is rated up to 9000 m²/h under optimal conditions. Forward speed is adjustable from 0 to 9 km/h; actual cleaned area per hour will depend on operator settings and overlap.
It is suitable for hard, flat surfaces commonly found in workshops and industrial environments—concrete, sealed concrete, industrial tile, and similar floor types. Avoid using on delicate or unsealed wooden floors unless approved brushes and detergents are used.
Inspect brushes and squeegees regularly for wear and debris. Replace brushes when bristles are worn or uneven. Clean the squeegee after each use and replace the rubber blades when you see streaking or loss of pickup. Follow the manufacturer's replacement intervals and use recommended parts.
After each use, empty and rinse both tanks. Use fresh water to flush sediment and cleaning chemical residues. For CIP-equipped systems, follow the machine’s CIP procedure to sanitize internal lines. Allow tanks to dry to prevent odors.
Yes. The ride-on design and straightforward controls make it user-friendly. Nonetheless, operators should receive basic training on safe operation, battery charging procedures, and routine maintenance to maximize performance and safety.
Wear appropriate PPE, ensure the floor area is clear of obstacles, follow rated load and speed limits, use caution on slopes, and follow battery-handling and charging guidelines. Never operate the machine if safety systems are faulty.
The machine weighs approximately 420 kg. Use appropriate lifting equipment, a ramp, or a vehicle with sufficient payload capacity for transport. Secure it properly during transit to prevent shifting.
Common consumables include disc brushes, squeegee blades, vacuum filters, and batteries (eventually). Replacement parts such as seals, hoses, and pump components may be required over time—contact the supplier for part numbers and availability.

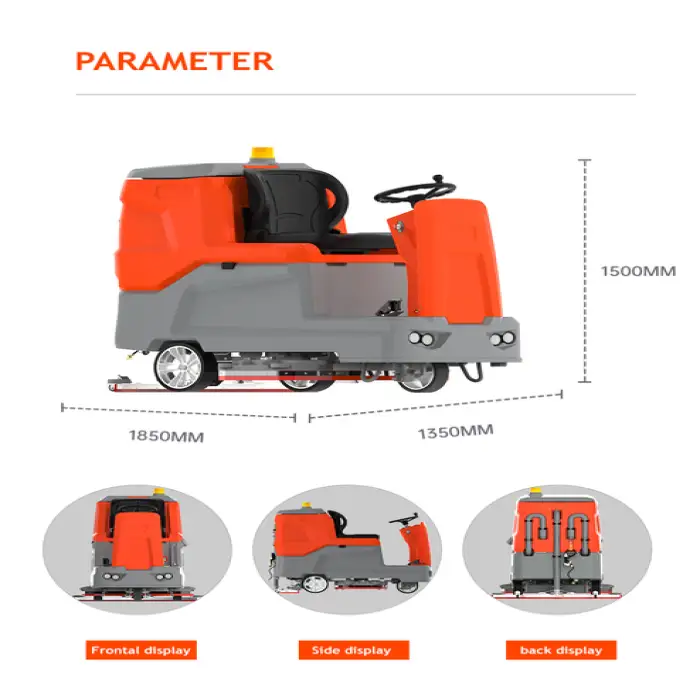

The machine dimensions are 1850×1350×1500 mm (L×W×H). With a width of 1350 mm it will not fit through a standard residential doorway (typically ~800–900 mm). Check facility door clearances and plan accordingly.
Warranty and after-sales support terms are seller- or distributor-dependent. Contact the vendor or manufacturer for specific warranty coverage, service plans, and local support options.
