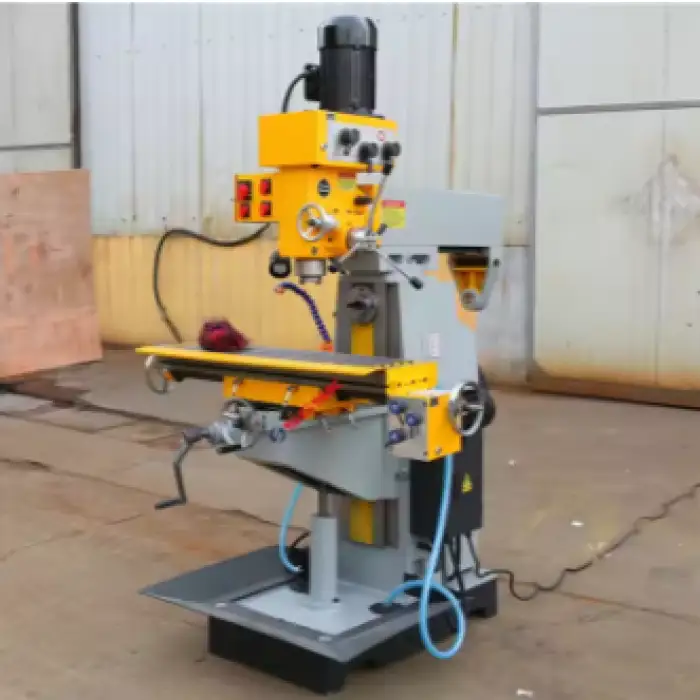

Micro Milling Drilling Machine ZX7550ZW Drilling And Milling Machine CE

0 Customer Reviews

  • Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
  • Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
  • Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
  • Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum drilling diameter of the ZX7550ZW?

The ZX7550ZW has a maximum drilling diameter of 50 mm.

2. What is the maximum end milling width that this machine can handle?

The maximum end milling width is 100 mm.

3. What is the spindle speed range for the ZX7550ZW?

The spindle speed range is 90-2000 RPM for vertical milling and 80-1300 RPM for horizontal milling.

4. What is the distance from the spindle nose to the table surface?

The distance from the spindle nose to the table surface is adjustable between 90-490 mm.

5. What is the maximum vertical milling diameter?

The maximum vertical milling diameter is 25 mm.

6. Can this machine handle tapping operations? If so, what is the maximum tapping diameter?

Yes, the ZX7550ZW can handle tapping operations with a maximum tapping diameter of M16.

7. What are the overall dimensions of the ZX7550ZW?

The overall dimensions are 1280 mm x 1285 mm x 2080 mm.

8. What is the weight of the ZX7550ZW machine?

The machine weighs between 900 kg and 1000 kg, depending on the configuration.

9. What type of spindle taper does this machine use?

The ZX7550ZW uses an MT4 spindle taper.

10. What is the table size of the ZX7550ZW?

The table size measures 1000 mm x 240 mm.

11. How much travel does the spindle have?

The spindle has a travel of 120 mm.

12. What is the maximum boring diameter that the ZX7550ZW can accommodate?

The maximum boring diameter is 120 mm.

13. What is the feed speed range of the table?

The table feed speed range is between 16 mm/min and 480 mm/min.

14. What is the motor power rating for the spindle?

The spindle motor power is rated at 1.5/2.2 kW for vertical and 2.2 kW for horizontal operations.

15. Is the ZX7550ZW CE certified?

Yes, the ZX7550ZW is CE certified, ensuring it meets safety and environmental standards.
