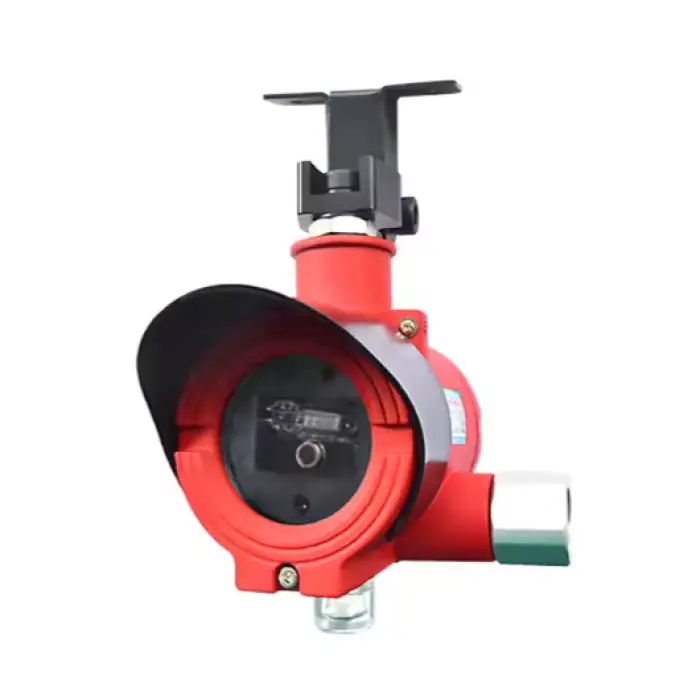

The S600-Ex Flame Detector uses a combined detection principle of infrared and ultraviolet light to quickly respond to flames.
The response time of the S600-Ex is less than 30 seconds, ensuring rapid detection of flames.
The S600-Ex operates on a power supply of 24V DC.
Yes, the S600-Ex is designed specifically for safety in hazardous environments and has an explosion-proof level of Ex dIIC T6 Gb.
The S600-Ex is constructed from durable cast aluminum, making it robust for tough conditions.
The sensitivity level of the S600-Ex is classified as Level 1.
The S600-Ex is suitable for industrial facilities, oil and gas operations, power plants, chemical processing plants, and warehouses that handle flammable substances.
The S600-Ex offers multiple signal output options including 4-20mA, RS485, and relay for easy integration.
The S600-Ex can operate effectively in ambient temperatures ranging from -10℃ to 55℃.
The overall dimensions of the S600-Ex are 145mm x 141mm x 113mm.
The S600-Ex has a pressure limit of 86KPa to 106KPa.
Yes, the S600-Ex is suitable for both industrial and commercial use, providing reliable fire safety.
The S600-Ex supports multiple signal outputs including 4-20mA, RS485, and relay, allowing for easy integration with existing systems.
Regular inspections and testing are recommended to ensure the S600-Ex remains operational and effective in detecting flames.
The S600-Ex is designed for use in harsh environments, making it suitable for outdoor applications, provided it is properly installed.
