High-Configuration 220V Programmable Industrial Aging for Test Chamber Electronic Salt Spray Corrosion for Test Equipment
- Section : Medical Supplies
- Category : Testing Instrument
- SKU : 1601557431617
High-Configuration 220V Programmable Industrial Aging Test Chamber for Electronic Salt Spray Corrosion Testing
The High-Configuration 220V Programmable Industrial Aging Test Chamber is designed for reliable testing of salt spray corrosion. This advanced equipment helps you assess the durability and corrosion resistance of various materials. With its user-friendly touch screen and customizable settings, it is ideal for industries looking for precise testing solutions.
Specifications
| Attribute | Details |
|---|---|
| Model | TC-Y-60, TC-Y-90, TC-Y-120, TC-Y-160 |
| Power | 1.3KW, 1.5KW, 2.3KW, 4.5KW |
| Voltage | AC220V±10% 50Hz / AC380V±10% 50Hz |
| Protection Class | IP65 |
| Warranty | 1 Year |
Key Features

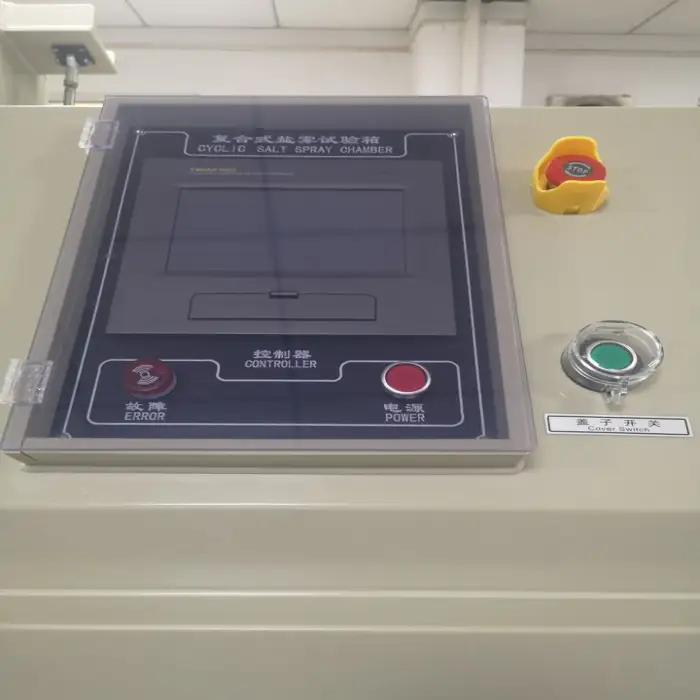

- 7-inch Liquid Crystal Touch Screen Controller for easy operation.
- Automatic Circulation Test for Salt Spray, Damp Heat, and Dryness.
- Supports continuous or periodic spraying modes.
- Fully customizable to meet specific testing needs.
- High-quality construction for reliable performance.
Applications
- Testing the corrosion resistance of metal coatings.
- Evaluating the durability of electronic components.
- Quality control in manufacturing processes.
- Research and development for new materials.
- Compliance testing for industry standards.
Specification
| Model | TC-Y-60 | TC-Y-90 | TC-Y-120 | TC-Y-160 |
| Internal dimensions(mm) | 600*500*500 | 900*600*500 | 1200*800*600 | 1600*1000*600 |
| External dimensions(mm) | 1800*1050*1250 | 2100*1150*1300 | 2580*1450*1400 | 3000*1650*1400 |
| Product name | Composite Salt spray test chamber |
| Brand | TIANCHENG |
| Place of origin | Guangdong,China |
| Spraying mode | Either Continuous or Periodic, Optional |
| Power | 1.3KW,1.5KW,2.3KW,4.5KW |
| Spraying mode | Continuous or periodic, either can be chosen. |
| Salt solution collection | Equipped with a standard funnel and a standard measuring cylinder |
| Salt solution filtration | A water quality filter is installed at the liquid suction pipe (to prevent the nozzle from being blocked and terminating the test). |
| Cabinet material | Imported corrosion - resistant, anti - aging and high - strength PVC board |
| Standard configuration | One set of round bar sample rack and one set of V-shaped sample rack, one nozzle, one funnel and one set of measuring cylinder. |
| Safety protection | Leakage protection, short-circuit protection, over-temperature protection, water shortage protection, end-of-test protection, over-current protection |
| Seal | It adopts a water-sealed structure, ensuring that there is no salt spray overflow. |
| Model | TC-Y-60、TC-Y-90、TC-Y-120、TC-Y-160 |
| Voltage | AC220V±10%50Hz/AC380V±10%50Hz |
| Customized | Accept customization |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the primary purpose of the High-Configuration 220V Programmable Industrial Aging Test Chamber?
The primary purpose of this test chamber is to conduct reliable tests for salt spray corrosion, helping to assess the durability and corrosion resistance of various materials.
2. What models are available for the High-Configuration 220V Programmable Industrial Aging Test Chamber?
The available models are TC-Y-60, TC-Y-90, TC-Y-120, and TC-Y-160, each varying in internal dimensions and power specifications.
3. What is the power requirement for the test chamber?
The power requirements vary by model, with options of 1.3KW, 1.5KW, 2.3KW, and 4.5KW depending on the selected model.
4. Is the test chamber easy to operate?
Yes, it features a 7-inch liquid crystal touch screen controller, making it user-friendly and easy to operate.
5. What types of tests can this chamber perform?
This chamber can perform automatic circulation tests for salt spray, damp heat, and dryness, supporting both continuous and periodic spraying modes.
6. What materials are suitable for testing in this chamber?
It is suitable for testing the corrosion resistance of metal coatings, evaluating the durability of electronic components, and quality control in manufacturing processes.
7. What safety features does the test chamber include?
The test chamber includes several safety features such as leakage protection, short-circuit protection, over-temperature protection, water shortage protection, end-of-test protection, and over-current protection.
8. What is the warranty period for the test chamber?
The test chamber comes with a one-year warranty.
9. Can the test chamber be customized for specific testing needs?
Yes, the test chamber supports customization to meet specific testing requirements.
10. What is the construction material of the test chamber?
The cabinet is made from imported corrosion-resistant, anti-aging, and high-strength PVC board.
11. How is the salt solution filtered in the test chamber?
The test chamber is equipped with a water quality filter installed at the liquid suction pipe to prevent any blockage in the nozzle during tests.
12. What type of sample racks are included with the test chamber?
The standard configuration includes one set of round bar sample rack and one set of V-shaped sample rack.
13. Where is the High-Configuration test chamber manufactured?
The test chamber is manufactured in Guangdong, China.
14. What is the protection class of this test chamber?
The protection class of the test chamber is IP65, ensuring resistance to dust and water ingress.
15. What are the internal dimensions of the TC-Y-120 model?
The internal dimensions of the TC-Y-120 model are 1200mm x 800mm x 600mm.
