ZD-120 Round Corner Paper Cutting Machine Paper Corner Cutter Machine Cardboard Corner Machine
- Section : Machinery
- Category : Paper Production Machinery
- SKU : 1600574794817

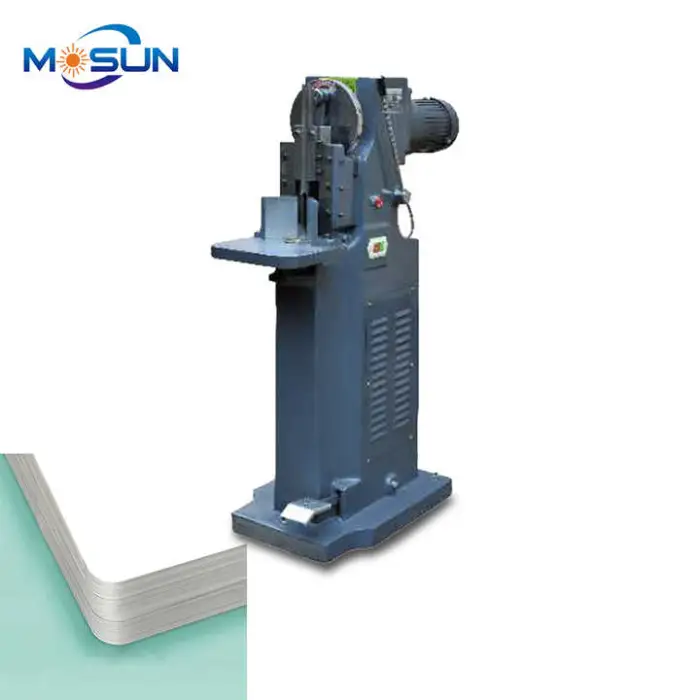

ZD-120 Round Corner Paper Cutting Machine
The ZD-120 Round Corner Paper Cutting Machine is a reliable tool for cutting rounded corners on paper, cardboard, and other materials. It is designed to be semi-automatic and easy to operate. With a high cutting speed, this machine is perfect for businesses that need to process large volumes quickly and efficiently.
Specifications
| Attribute | Details |
|---|---|
| Model | ZD-120 |
| Type | Die-cutting Machine |
| Max. Cutting Height | 110mm |
| Speed | 90 Times/Min |
| Power | 0.75KW |
| Voltage | 220V/380V |
| Dimensions (L*W*H) | 1050*550*1350mm |
| Weight | 270.000 KG |
| Automatic Grade | Semi-automatic |
Key Features
- High-speed cutting at 90 times per minute.
- Easy to operate with a user-friendly design.
- Durable construction with quality components.
- Supports various materials including paper and cardboard.
- Compact size for easy storage and use.
Applications
- Perfect for card making and craft projects.
- Ideal for printing companies needing corner cutting.
- Useful in packaging design and production.
- Great for schools and educational projects.
- Beneficial for small businesses and startups.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the ZD-120 Round Corner Paper Cutting Machine?
The ZD-120 is a semi-automatic die-cutting machine designed to cut rounded corners on paper, cardboard and similar materials. It offers high-speed operation and a compact footprint for applications such as cards, packaging and craft work.
2. What materials can the ZD-120 cut?
The machine supports paper and cardboard and can handle a range of similar sheet materials. For uncommon or thicker materials (plastics, laminates, dense board), test cuts are recommended and you should consult the supplier for compatibility.
3. What is the maximum cutting height or stack capacity?
Max cutting height (stack thickness) is 110 mm. Actual usable stack size can vary depending on material type and die; heavier/thicker materials may require smaller stacks for reliable cutting.
4. What is the cutting speed or throughput?
Rated speed is 90 cuts per minute. Theoretical maximum throughput is 90 × 60 = 5,400 cuts per hour, but real-world output will be lower due to loading/unloading, alignment and operator tasks.
5. What does 'semi-automatic' mean for this machine?
Semi-automatic generally means the operator loads and aligns the material manually, then initiates an automatic cutting cycle. The machine performs the cutting action automatically but does not fully automate feeding or stacking.
6. What are the machine's power and electrical requirements?
Power rating is 0.75 kW. Voltage options are 220V or 380V; the exact configuration depends on the version you order. Confirm phase (single‑ or three‑phase) and local electrical requirements with your supplier or installer.
7. What are the dimensions and weight of the ZD-120?
Dimensions are 1050 × 550 × 1350 mm (L × W × H). Net weight is approximately 270 kg, so plan for appropriate handling and installation space.
8. Is the ZD-120 portable?
No. Although relatively compact, the machine weighs about 270 kg and is intended for stationary installation rather than frequent relocation.
9. What corner radii can the machine produce? Can I change the radius?
Corner radius depends on the die tooling used. Dies can typically be swapped to produce different rounded-corner sizes. Contact the supplier for available die sizes or to order custom dies.
10. How do I operate the machine (basic workflow)?
Typical steps: prepare and align your stack, position it in the machine, secure or register the stack as required, start the cutting cycle (foot pedal or control button depending on configuration), then remove and inspect the finished pieces. Always follow the operator manual and safety guidelines provided by the manufacturer.
11. What routine maintenance does the ZD-120 require?
Regular maintenance includes cleaning debris from working areas, lubricating moving parts per the manual, inspecting and replacing worn dies or cutting tools, checking fasteners and electrical connections, and keeping the machine free from dust and adhesive buildup. Follow the manufacturer's maintenance schedule for intervals and procedures.
12. What safety precautions should operators follow?
Ensure operators are trained and follow the machine's safety manual. Keep hands and loose clothing away from the cutting area, disconnect power before servicing, use required guards and PPE, and ensure proper grounding and electrical protection. Confirm specific safety features (e.g., emergency stop) with the supplier.
13. Are spare parts, dies and service available?
Spare parts and replacement dies are typically available from the manufacturer or authorized dealers. For service, installation and parts, contact your supplier or local service center to confirm availability and lead times.
14. What business types and applications is the ZD-120 best suited for?
Ideal for card making, small- to medium-volume print shops, packaging design and production, schools or craft workshops, and startups needing reliable rounded-corner finishing. It excels where semi-automatic, high-speed corner cutting is required.
15. What are common troubleshooting tips if cutting quality or performance is poor?
Common issues and fixes: misalignment — recheck registration and clamp settings; incomplete cuts — reduce stack height or replace dull dies; inconsistent cycles — verify power supply and electrical connections; excess debris — clean working surfaces and dies. If problems persist, contact technical support or your service provider.
