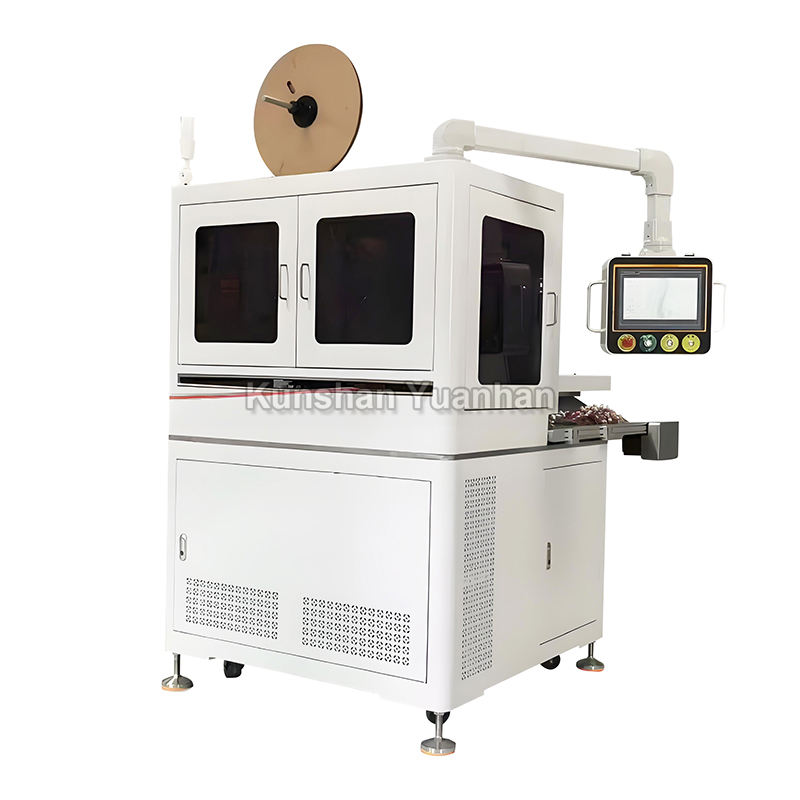

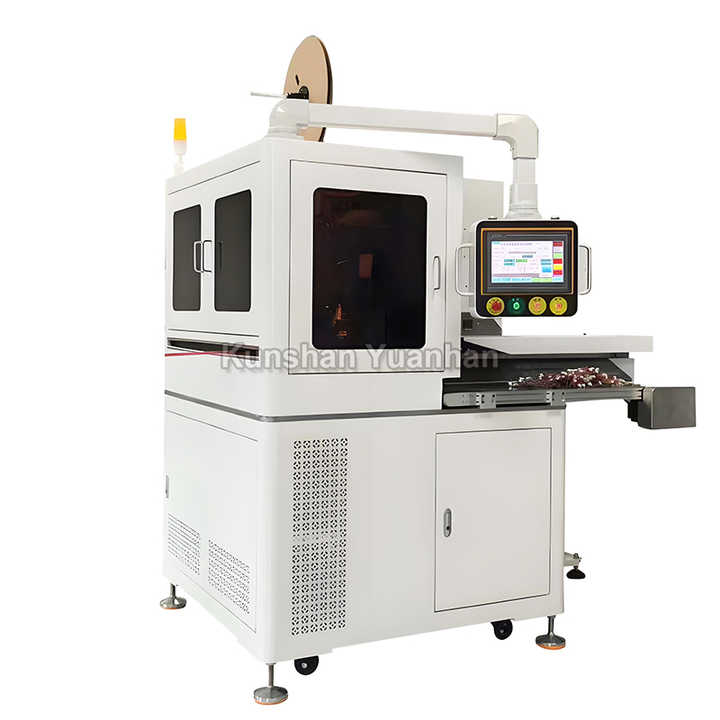

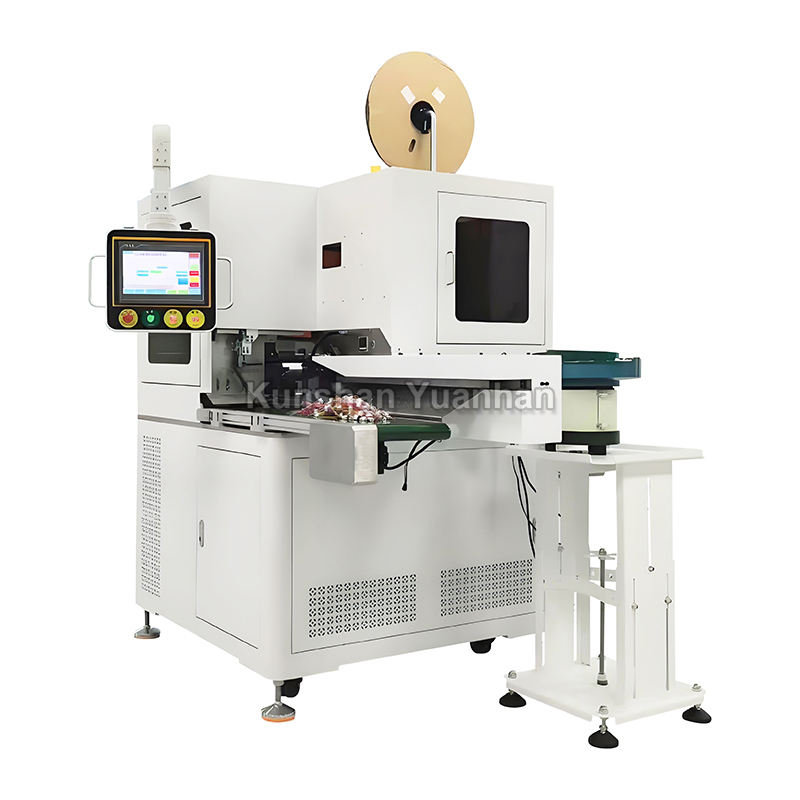

Wire Single End Crimping and Housing Connector Inserting Machine

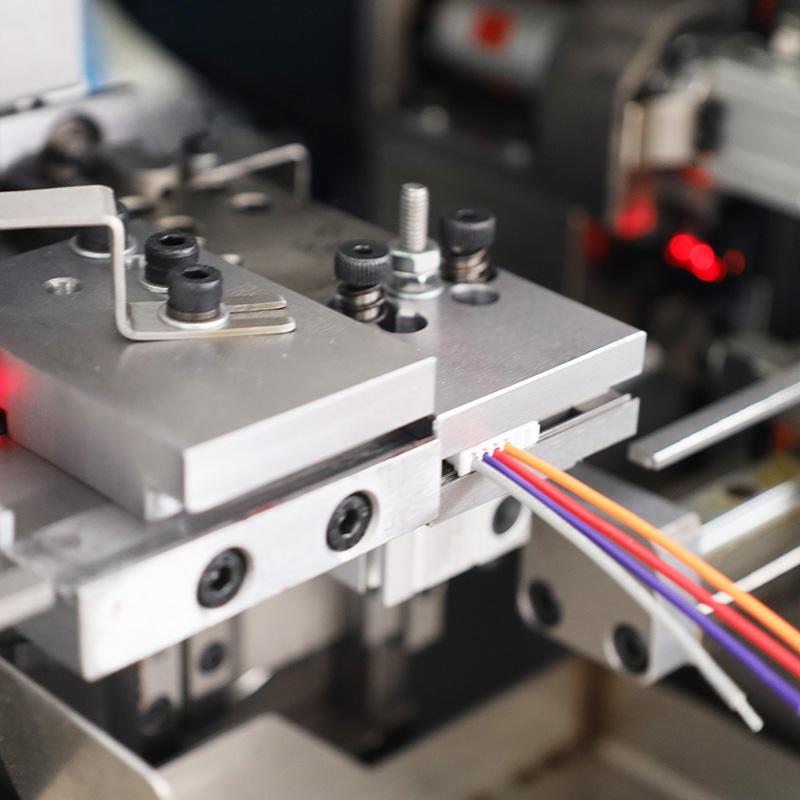

The Wire Single End Crimping and Housing Connector Inserting Machine is a powerful tool designed for efficient wire processing. This machine automates the tasks of cutting, stripping, crimping, and inserting terminals. It is perfect for businesses that require high-speed and precise wire assembly. With its advanced features and capabilities, this machine streamlines your production process, saving time and reducing errors.

Specifications

Attribute	Details
Model Number	YH-QMCJK01
Air Pressure	0.5~0.7 MPa
Length Accuracy	±(0.2%*L+1) mm
Length Range	30mm-700mm (set in 0.1mm units)
Main Functions	Wire cutting, stripping, crimping, inserting, half-stripping
Operating Mode	Automatic
Power Supply	50/60HZ 220V single phase
Power (W)	1 KW
Processing Capacity	4000-8000 PCS/H (depends on terminal shell and wire)
Processing Range	1.5-3.96 pitch (shell range 1Pin-20 Pin)
Processing Wire Number	AWG #20-#28 (outer diameter of wire ≤ 2.5mm)
Stripping Length	1~7mm at A end, 1~7 mm at B end
Weight (KG)	500
Single Gross Weight	290.000 kg
Single Package Size	115X68X151 cm

Key Features

High-speed processing of up to 8000 pieces per hour.
Automatic operation for efficiency and accuracy.
Versatile wire processing capabilities, including cutting and stripping.
Adjustable length settings for different wire sizes.
Compact design for easy integration into production lines.

Applications

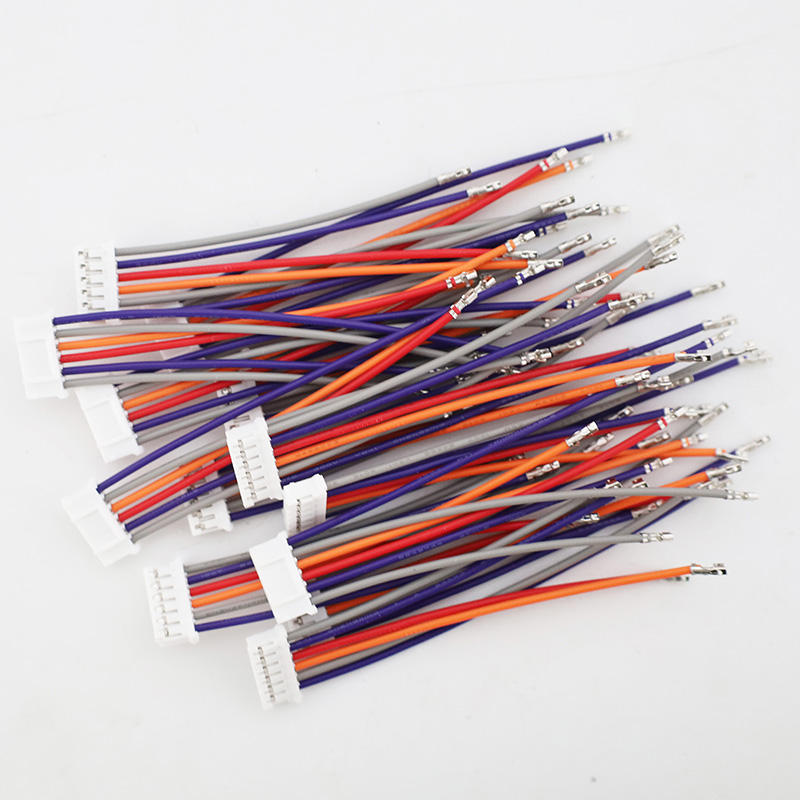

Wire harness manufacturing for electronics.
Automotive wiring assembly.
Electrical component assembly.
Telecommunications equipment production.
Custom wire processing for various industries.
