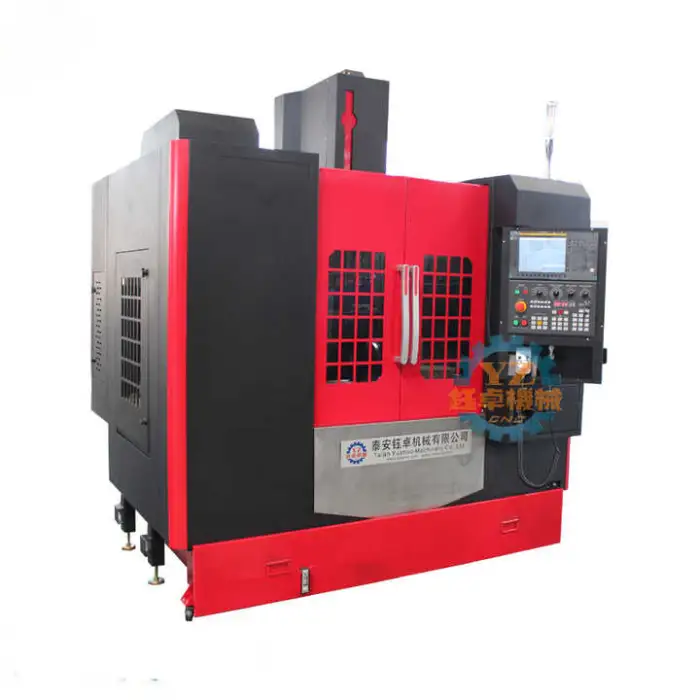

The VMC 650 has a table travel capacity of 650 mm in the X direction, 500 mm in the Y direction, and 500 mm in the Z direction.
The spindle speed range of the VMC 650 is from 20 to 8000 revolutions per minute (r.p.m).
The VMC 650 is equipped with a GSK CNC control system which provides advanced features for precision machining.
The VMC 650 weighs approximately 2800 kg.
The spindle motor power of the VMC 650 is 5.5 kW.
The VMC 650 operates on a voltage of either 220V or 380V.
The maximum table load capacity of the VMC 650 is 600 kg.
The VMC 650 is designed for medium-duty machining of metal parts and components, suitable for various industries including automotive and aerospace.
The VMC 650 boasts a positioning accuracy of 0.001 mm.
The repeatability of the VMC 650 is 0.01 mm in the X, Y, and Z axes.
Yes, the VMC 650 can be utilized for custom machining solutions across various industries.
The dimensions of the VMC 650 are 2500 mm in length, 2000 mm in width, and 2300 mm in height.
Yes, the VMC 650 has a high safety level designed to ensure secure operation during use.
The VMC 650 features a spindle taper of BT40.
The table size of the VMC 650 is 800 mm by 400 mm.
