Vibrating Fork Level Sensor for Water Monitoring and Control
- Section : Consumer Electronics
- Category : Measuring & Gauging Tools
- SKU : 1600105098200
Vibrating Fork Level Sensor for Water Monitoring and Control
Ensure precise and reliable water level monitoring with the Vibrating Fork Level Sensor for Water Monitoring and Control. Designed for a wide range of applications, this sensor is ideal for detecting liquid levels, powders, and particles. Its robust construction and advanced features make it a dependable choice for industrial and environmental use.
Key Features:
- Versatile Monitoring: Accurately measures liquid levels and detects powders or particles with densities greater than 0.1g/cm³.
- Wide Temperature Range: Operates effectively in environments from -40°C to +150°C and withstands storage conditions up to +85°C.
- Durable Construction: Made with SS304 and SS316 materials for long-lasting performance in harsh conditions.
- Flexible Power Supply: Compatible with 19–60V DC and 19–250V AC at 50/60Hz for convenience in various setups.
- Precise Switching Time: Activates in 2 seconds when submerged and in 3 seconds when empty for quick response.
- High Pressure Compatibility: Handles working pressures up to 40 bar, suitable for demanding applications.
- Low Power Consumption: Consumes less than 3W (DC) or 15W (AC) to optimize energy efficiency.
- Multiple Output Options: Supports relay output (AC250V/4A, DC60V/4A), NPN (400mA), and PNP (400mA) for integration with various control systems.
- Environmental Versatility: Works seamlessly in medium types such as liquids with viscosities up to 10000 mm²/s and densities over 0.7g/cm³.
Technical Specifications:
- Process Connection: G1-1/2" for easy installation.
- Electric Connection: M12×P1.0 connector ensures secure and reliable connectivity.
- Medium Type: Suitable for liquids, powders, and particles smaller than 10mm in size.
- Switching Accuracy: Designed to provide consistent performance in diverse applications.
Conclusion:
The Vibrating Fork Level Sensor for Water Monitoring and Control delivers precise and reliable level detection for industrial and environmental applications. Its rugged design and versatile functionality make it the perfect solution for effective water and material monitoring.
Product Info Gallery
| Power supply | 19…60VDC 19…250VAC 50/60Hz |
| Switching time | In the medium 2 seconds, Empty: 3 seconds |
| Environment Temp. | -40…+70°C |
| Shelf Temp. | -40…+85°C |
| Medium Temp. | -40…+150°C |
| Working Temp. | -1…+40bar |
| Medium type | Powder and particle =10mm，density>0.1g/cm³ Liquid，Viscosity =10000mm2/s, density >0.7g/cm³ |
| Process connect | G1-1/2" |
| Electric connect | M12×P1.0 Connector |
| Shell Material | SS304 |
| Fork material | SS304/SS316 |
Output | Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA |
| Power consumption | DC<3W, AC <15W |

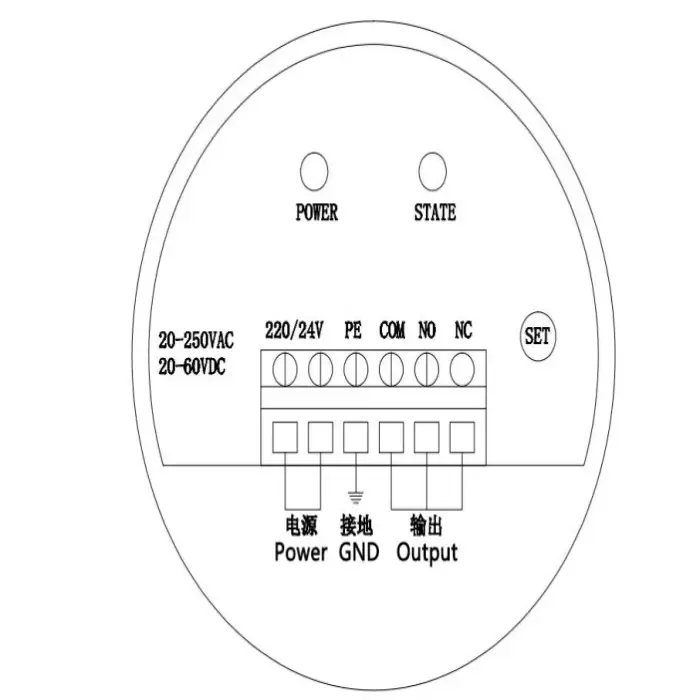

Wiring
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What types of materials can the Vibrating Fork Level Sensor detect?
The sensor is designed to detect liquids, powders, and particles, with a particle size of less than 10mm and a density greater than 0.1g/cm³.
2. What is the temperature range in which this sensor operates?
The sensor operates effectively in environments ranging from -40°C to +150°C, and can withstand storage conditions up to +85°C.
3. What materials are used in the construction of the sensor?
The sensor is made with durable SS304 and SS316 materials, ensuring long-lasting performance even in harsh conditions.
4. What power supply options are compatible with this sensor?
The sensor supports a flexible power supply of 19–60V DC and 19–250V AC at 50/60Hz, allowing for various setup configurations.
5. How quickly does the sensor respond when detecting levels?
The sensor activates in 2 seconds when submerged and in 3 seconds when empty, providing a quick response time.
6. What is the maximum working pressure that this sensor can handle?
The sensor can handle working pressures up to 40 bar, making it suitable for demanding applications.
7. How much power does the sensor consume?
The sensor consumes less than 3W when powered by DC and less than 15W when powered by AC, optimizing energy efficiency.
8. What output options does the sensor provide?
The sensor supports multiple output options including relay output (AC250V/4A, DC60V/4A), NPN (400mA), and PNP (400mA) for integration with various control systems.
9. Can this sensor be used in environments with high viscosity liquids?
Yes, the sensor is capable of working with liquids that have viscosities up to 10,000 mm²/s and densities over 0.7g/cm³.
10. What is the process connection type for installation?
The sensor features a G1-1/2" process connection for easy installation.
11. What type of electrical connection does the sensor use?
The sensor uses an M12×P1.0 connector for secure and reliable electrical connectivity.
12. Is the sensor suitable for outdoor use?
Yes, the sensor is designed for industrial and environmental applications, making it suitable for outdoor use in harsh conditions.
13. What is the switching accuracy of the sensor?
The sensor is designed to provide consistent performance and accurate switching in diverse applications.
14. Can this sensor be used for level monitoring in waste water?
Yes, the sensor is versatile and can be utilized for monitoring levels in waste water as well as other liquids and materials.
15. What is the warranty period for the Vibrating Fork Level Sensor?
Please refer to the manufacturer’s warranty policy for specific details regarding the warranty period for this product.
