The Complete Water Production Line Includes Blowing Water Treatment,Filling,Labelling and Wrapping Machine Model: CGF 32-32-10
- Section : Machinery
- Category : Packaging Line
- SKU : 1600258098222
Product Description
Factory price drinking water / small water bottle filling machines manufacbottleturer
bottle water filling machine
Introduction:
Our machine can be used to produce bottled mineral water, purified water, alcoholic beverage and other non-gas Liquid.
This Complete Water Bottling Plant Machine can be applied to all kinds of plastic machine such as PET, PE. Bottles size can vary
from 200ml-2000ml meanwhile few changeover is needed. Different models can satisfy various requirement of output from 1000 bottles/hour to 24000 bottles/hour.
This model of filling machine is designed for the low/middle capacity and small factory. It takes low buying cost, low water and electricity consumption and few space occupation into consideration at the beginning.
At the same time it can perfectly complete the function of washing, filling and capping. It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. The equipment is fitted with advanced
Mitsubishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating conditions of each section,which makes the operation of this equipment highly automatic and convenient.
Flow Chart1)water purification system
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis →
Ozone sterilizer → pure water tank
2) Bottle filling & packing system
Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1 machine→ Light check → Full-automatic labeling
machine → Ink jet machine →Full automatic packing machine→ warehouse
3).Bottle making system
pet preform→Autoloader→reheater →molding→ bottles water filling machine

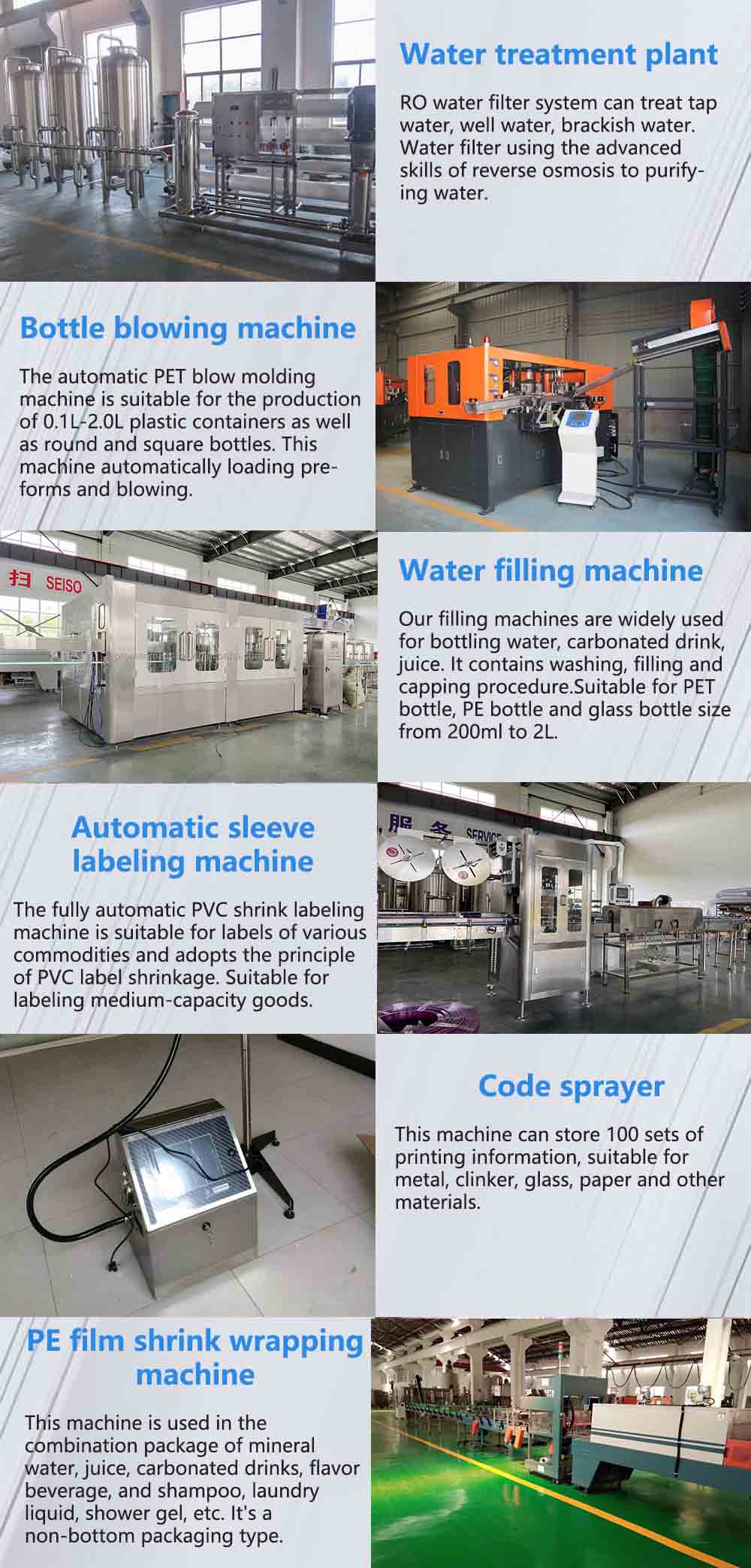

Complete Bottle Water Production Line Including Below Machines

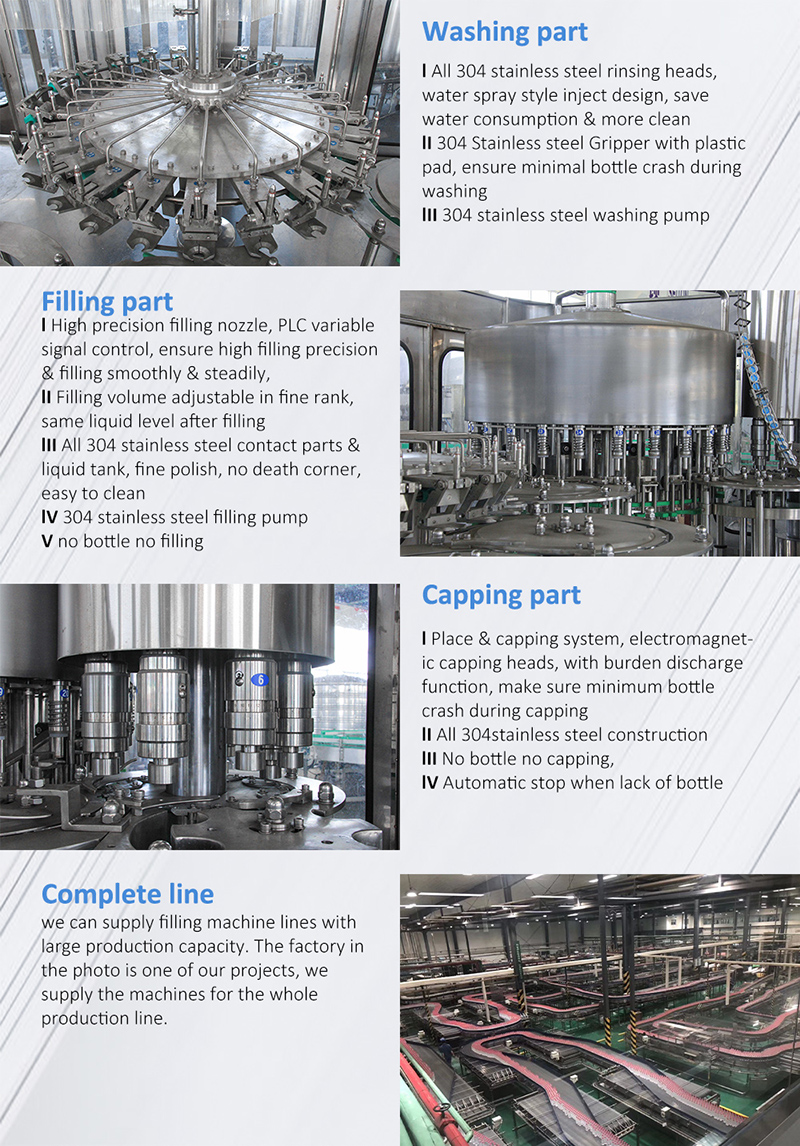

Feature of 3 In 1 Beverage Filling Machine:Bottled water filling machine
water filling machine
Technical Parameter
Bottled water filling machine
water filling machine
| model | CGF8-8-3 | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
| Number of rinsing head | 8 | 14 | 18 | 24 | 32 | 40 |
| Number of filling head | 8 | 12 | 18 | 24 | 32 | 40 |
| Number of capping head | 3 | 4 | 6 | 8 | 10 | 12 |
| (500m)Rated production capacity | 1000-2000 | 2000-4000 | 6000-8000 | 8000-12000 | 12000-16000 | 16000-20000 |
| (KW)Installed capacity | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 |
| LxWxH(mm)Overall size | 1900×1420×200 | 2200×1600×2300 | 2450×1900×2300 | 2750×2180×2400 | 4600×2300×2300 | 4550×2650×23 |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What types of liquids can the Complete Water Production Line handle?
The Complete Water Production Line can produce bottled mineral water, purified water, alcoholic beverages, and other non-gas liquids.
2. What is the production capacity of the CGF 32-32-10 model?
The CGF 32-32-10 model has a rated production capacity of 12,000 to 16,000 bottles per hour.
3. What bottle sizes can this machine accommodate?
This machine can handle bottle sizes ranging from 200ml to 2000ml with minimal changeover required.
4. What are the energy requirements for the machine?
The CGF 32-32-10 model has an installed capacity of 8.3 KW, making it energy-efficient for operations.
5. Is this machine suitable for small factories?
Yes, the CGF 32-32-10 model is designed for low to middle capacity, making it ideal for small factories.
6. How does the machine ensure sanitary conditions?
The machine improves sanitary conditions by integrating washing, filling, and capping functions in a single process.
7. What technology is used for operation control?
The equipment is fitted with an advanced Mitsubishi PLC for operation control, ensuring stability and reliability.
8. Does the machine require a lot of space?
No, the CGF 32-32-10 model is designed to occupy minimal space, making it suitable for smaller production areas.
9. What kind of maintenance is required?
The machine simplifies maintenance compared to older models, requiring periodic checks and basic upkeep to ensure optimal performance.
10. Can the machine produce bottles from different materials?
Yes, it can work with various plastic materials such as PET and PE.
11. What preprocessing steps are included in the water purification system?
The water purification system includes a source water tank, pumps, filters, an ion softening machine, reverse osmosis, and an ozone sterilizer.
12. Is the operation of this machine highly automated?
Yes, the operation is highly automated, utilizing photoelectric sensors to monitor the conditions of each section.
13. What is the overall size of the CGF 32-32-10 model?
The overall size of the CGF 32-32-10 model is 4550mm x 2650mm x 2300mm.
14. What additional equipment is included in the complete water production line?
The complete water production line includes a bottle blower, washing, filling & capping machine, labeling machine, inkjet machine, and packing machine.
15. How does the machine handle bottle filling and capping?
The machine features a 3-in-1 system that simultaneously washes, fills, and caps bottles, improving efficiency and reducing contamination risk.
