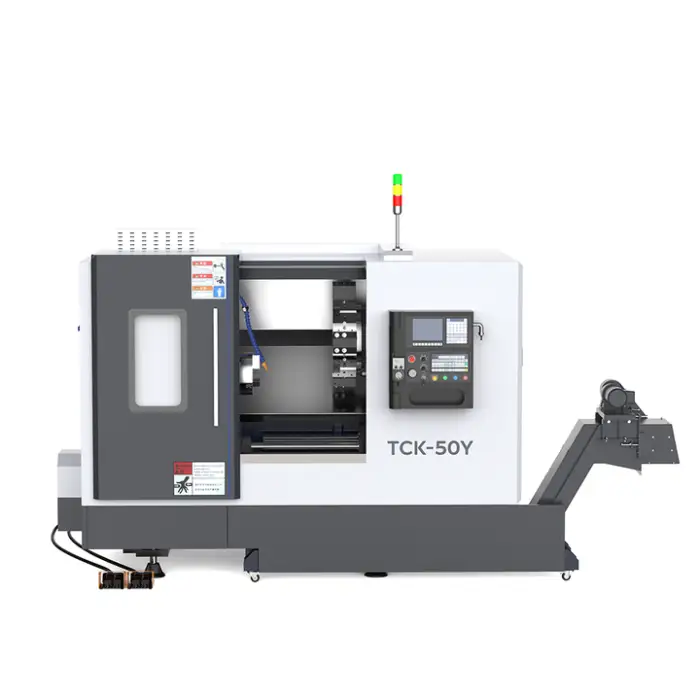

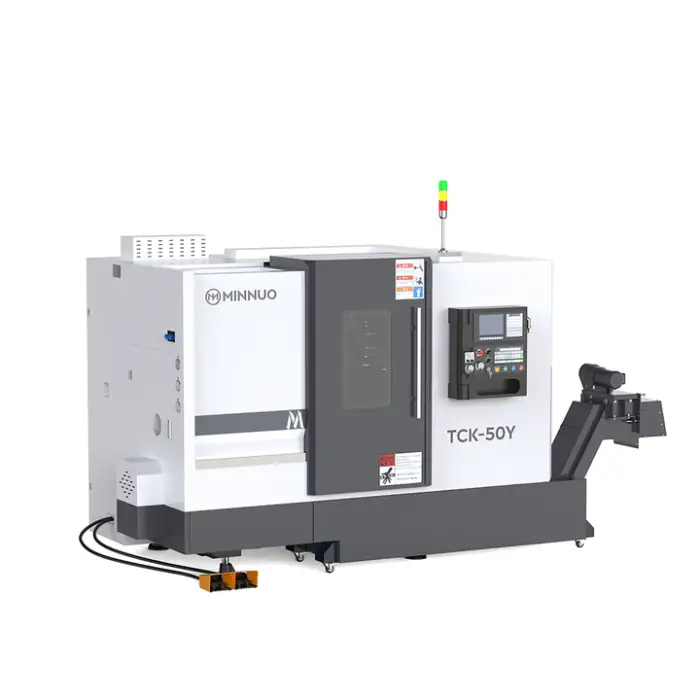

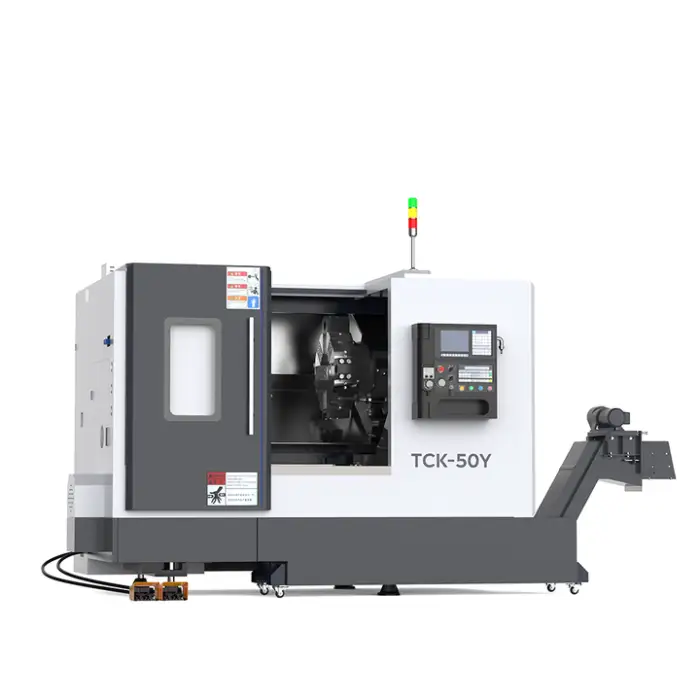

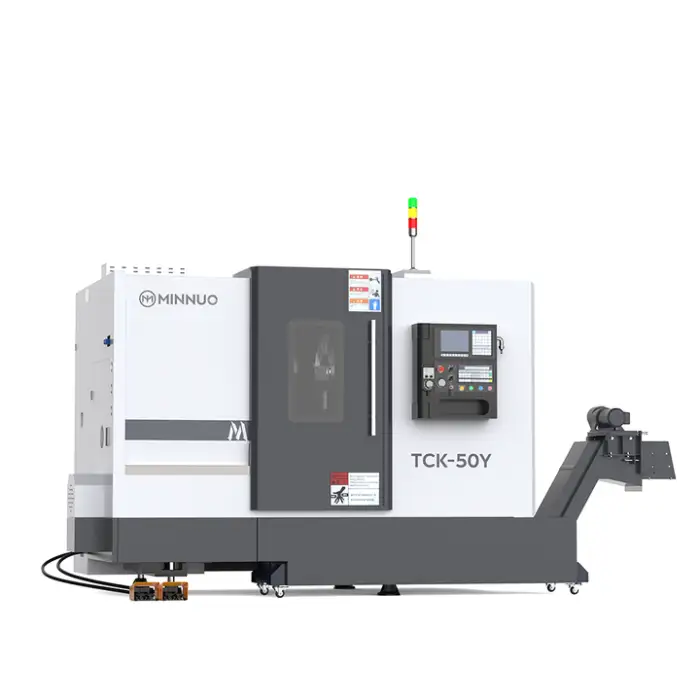

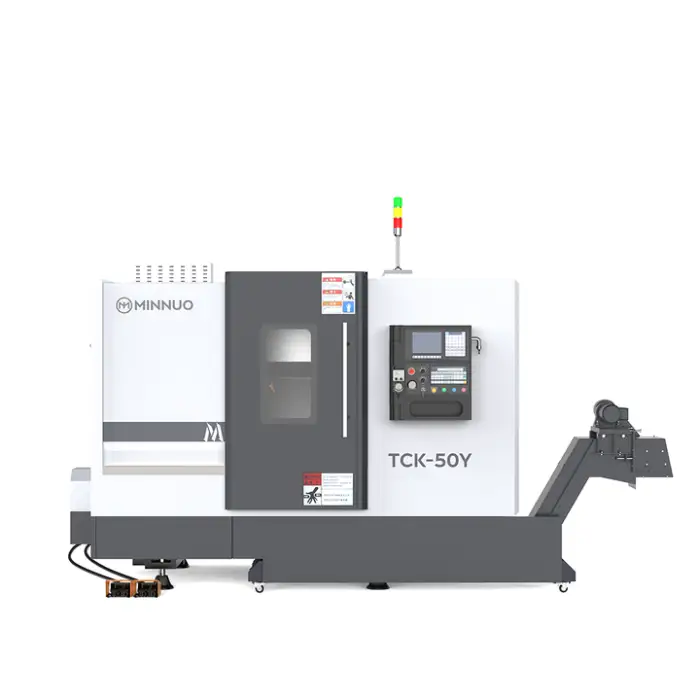

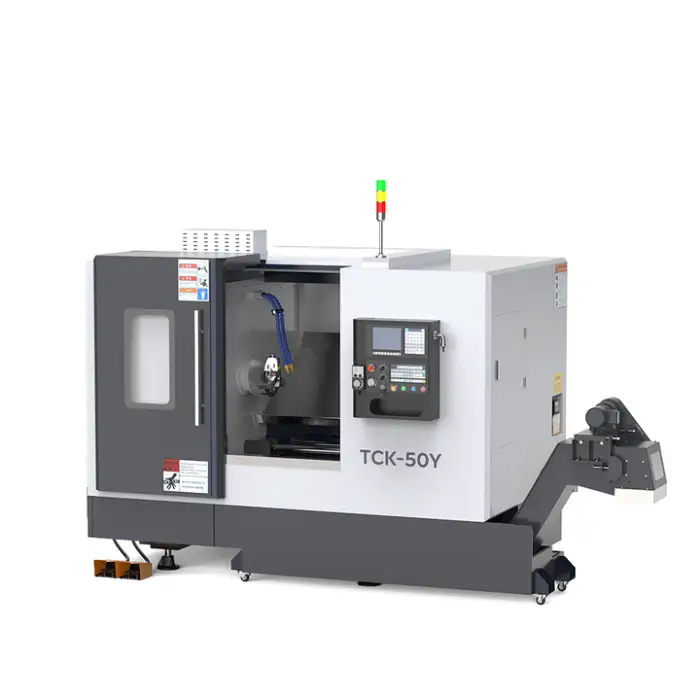

The TCK-50Y CNC Lathe Machine can handle a maximum workpiece length of 1850 mm.
The maximum weight capacity of the TCK-50Y CNC Lathe Machine is 1000 kg.
The TCK-50Y CNC Lathe Machine has a single spindle.
The TCK-50Y CNC Lathe Machine operates on a voltage of 220V/380V.
The TCK-50Y CNC Lathe Machine uses a Siemens CNC control system.
The positioning accuracy of the TCK-50Y CNC Lathe Machine is ±0.002 mm.
The repeatability for the TCK-50Y CNC Lathe Machine is ±0.003 mm for the X, Y, and Z axes.
The spindle speed range for the TCK-50Y CNC Lathe Machine is 1600 to 4800 RPM.
The TCK-50Y CNC Lathe Machine weighs 2800 kg.
The travel for the X axis is 320 mm, and the travel for the Z axis is 2000 mm.
The TCK-50Y CNC Lathe Machine uses a hard rail guide way type.
The rapid traverse speed for the X axis is 6 m/min, and for the Z axis, it is 8 m/min.
The TCK-50Y CNC Lathe Machine has 6 tool post stations.
The cutting torque of the TCK-50Y CNC Lathe Machine is 15.
The dimensions of the TCK-50Y CNC Lathe Machine are 2650 mm in length, 1700 mm in width, and 1820 mm in height.
