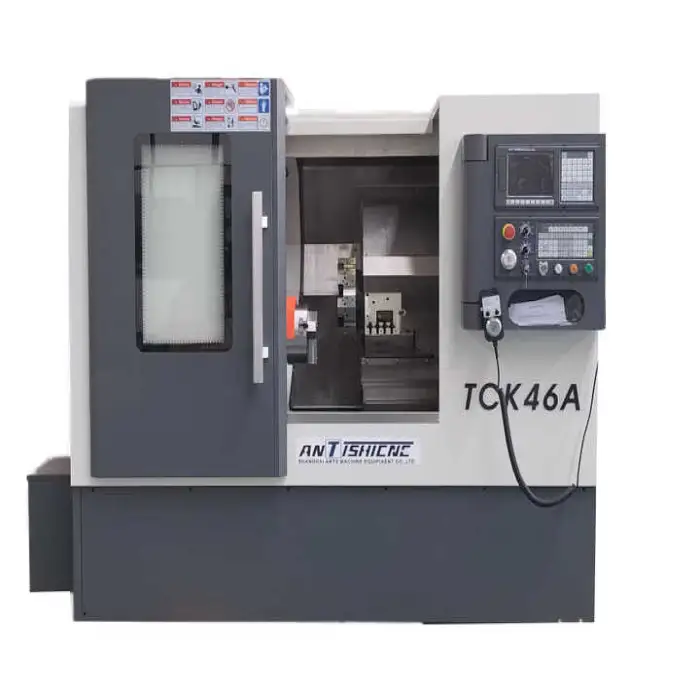

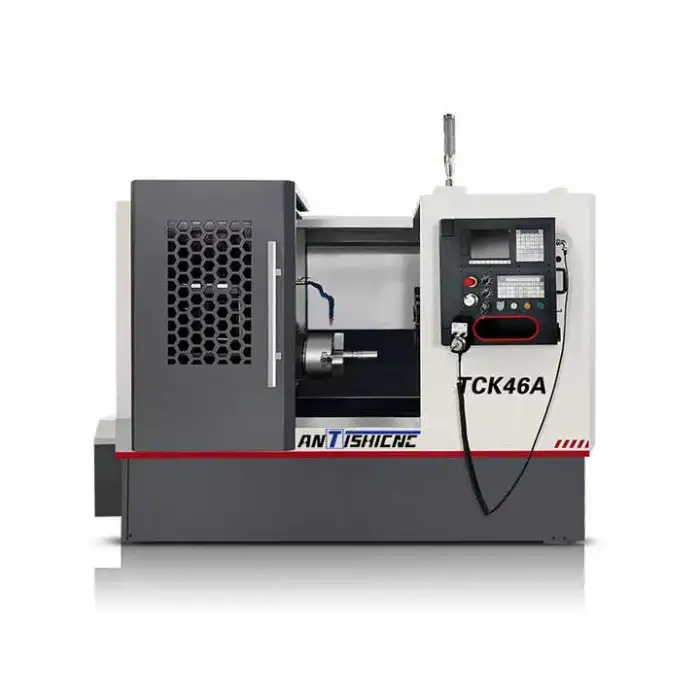

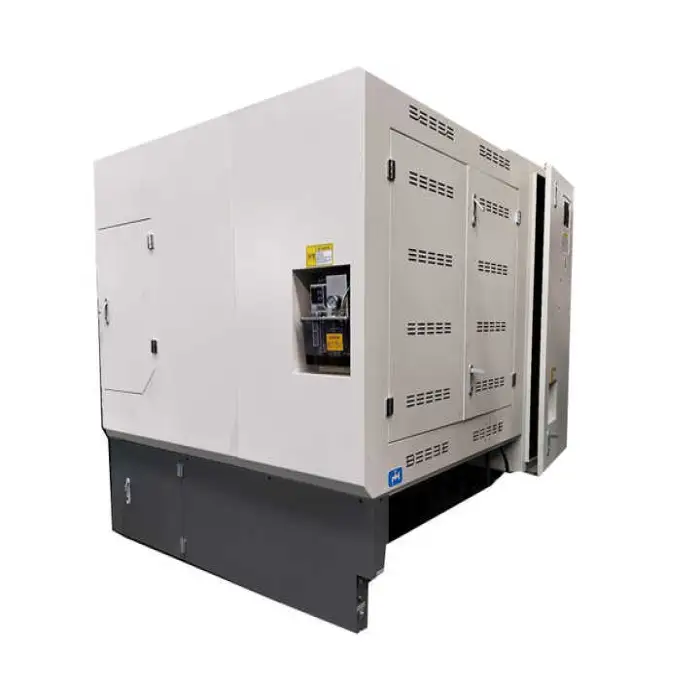

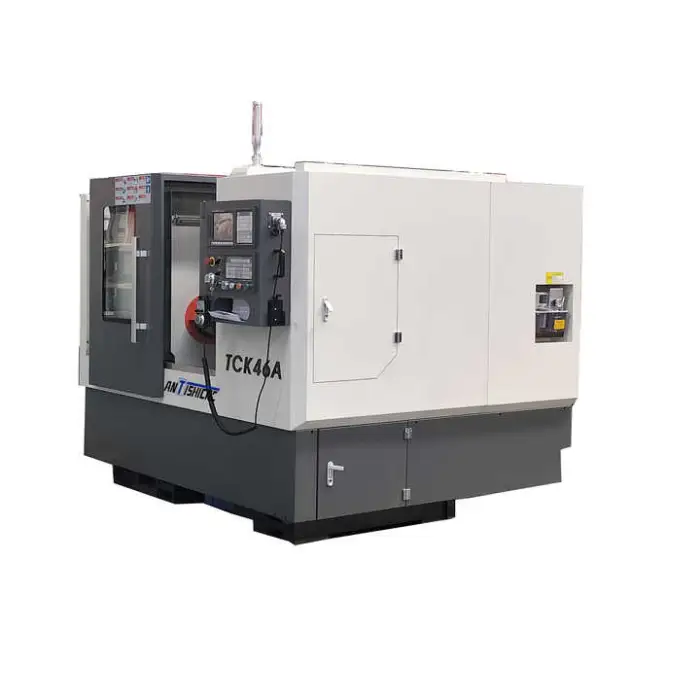

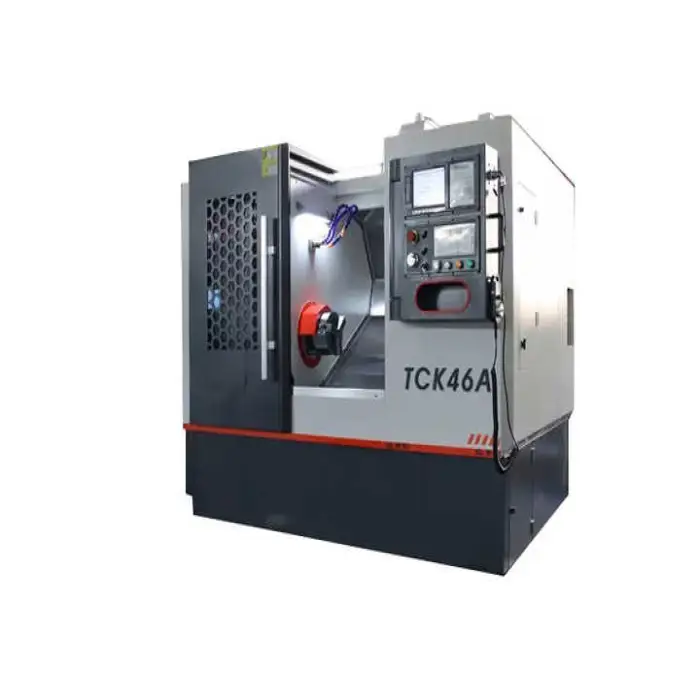

TCK46A Slant Bed CNC Lathe Machine

0 Customer Reviews

  • Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
  • Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
  • Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
  • Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum length of the workpiece that the TCK46A Slant Bed CNC Lathe Machine can handle?

The TCK46A Slant Bed CNC Lathe Machine can accommodate a maximum workpiece length of 400 mm.

2. What is the maximum weight of the workpiece that this lathe machine can support?

The maximum weight of the workpiece that the TCK46A can support is currently under inquiry.

3. What is the spindle motor power of the TCK46A?

The spindle motor power for the TCK46A Slant Bed CNC Lathe Machine is available in two options: 7.5 kW and 11 kW.

4. How many axes does the TCK46A CNC Lathe Machine have?

The TCK46A features 2 axes for enhanced machining capabilities.

5. What are the travel distances for the X and Z axes?

The travel distance for the X axis is 240 mm, while the Z axis can travel 400 mm.

6. What is the positioning accuracy of the TCK46A?

The positioning accuracy for the TCK46A is currently under inquiry.

7. What is the voltage requirement for the TCK46A Slant Bed CNC Lathe Machine?

The TCK46A operates at a voltage of either 220V or 380V.

8. How many tool post stations does the TCK46A have?

The TCK46A is equipped with 4 tool post stations.

9. What is the weight of the TCK46A CNC Lathe Machine?

The TCK46A has a weight of 180 kg.

10. What are the dimensions of the TCK46A?

The dimensions of the TCK46A are 2550 mm (length) x 2000 mm (width) x 2000 mm (height).

11. What brands are available for the CNC control system?

The TCK46A can come with a CNC control system from Fanuc, Siemens, or GSK.

12. What are the spindle speed options for the TCK46A?

The spindle speed for the TCK46A ranges from 125 to 3500 rpm across six speed settings.

13. What is the swing over bed measurement for the TCK46A?

The swing over bed measurement for the TCK46A is 460 mm.

14. Is there a machinery test report provided with the TCK46A?

Yes, a machinery test report is provided with the TCK46A Slant Bed CNC Lathe Machine.

15. What is the gross weight of the TCK46A when packaged?

The single gross weight of the TCK46A is 1500 kg.
