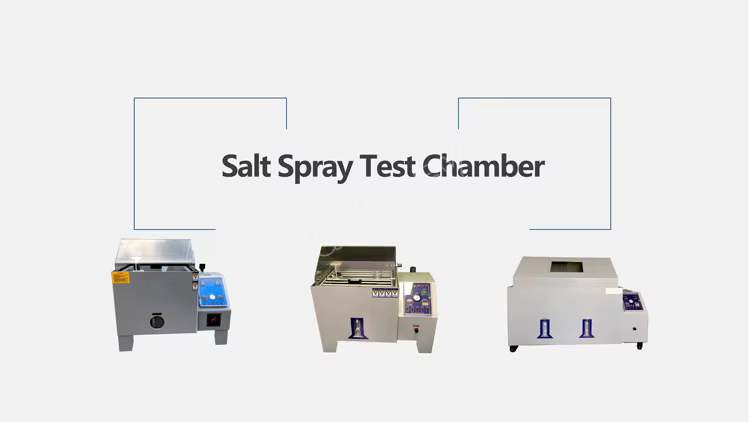

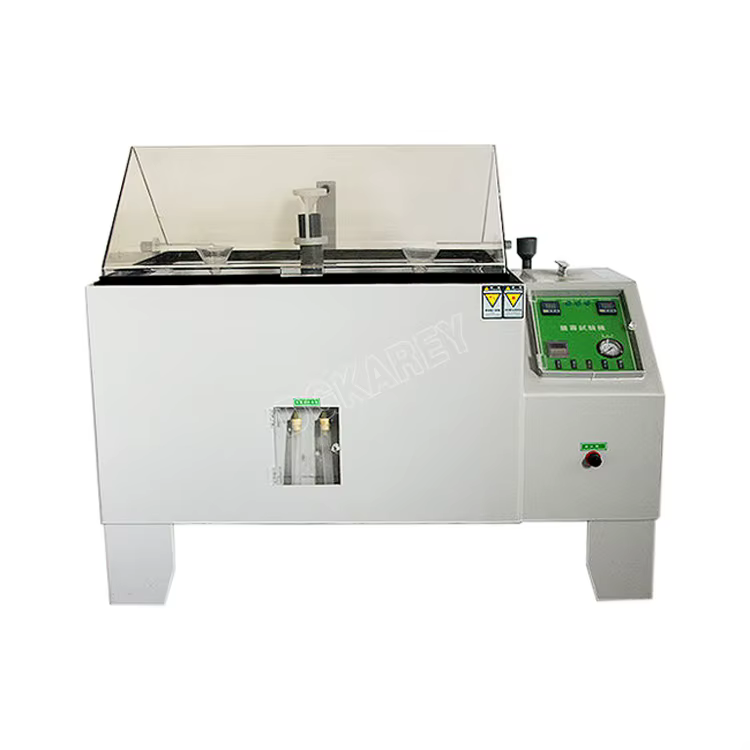

Salt Spray Testing Equipment Aging Chamber for Assessing Material Durability in Corrosive Environments
- Section : Medical Supplies
- Category : Testing Instrument
- SKU : 1601584283098
Salt Spray Testing Equipment Aging Chamber for Assessing Material Durability in Corrosive Environments
The Salt Spray Testing Equipment Aging Chamber is designed to evaluate the durability of materials in harsh, corrosive environments. This high-quality testing chamber simulates real-world conditions, ensuring that your materials can withstand salt spray and corrosion. With precise temperature and pressure controls, this equipment is essential for industries that prioritize material longevity and reliability.
Specifications
| Attribute | Details |
|---|---|
| Brine Tank Capacity | 15L, 25L, 40L |
| Brine Temperature | 35℃±1℃, 50℃±1℃ |
| Inner Box Size | 60x45x40, 90x60x50, 120x80x50 |
| Outside Box Size (cm) | 107x60x118, 141x88x128, 190x110x140 |
| Pressure Barrel Temperature | Salt Test (NSS ACSS) 47℃±1℃ / Corrosion Test (CASS) 63℃±1℃ |
| Single Gross Weight | 85.000 kg |
| Single Package Size | 125X85X55 cm |
| Spray Volume | 1.0~2.0ml/80cm2/h |
| Testing Room Capacity | 108L, 270L, 480L |
| Testing Room Temperature | Salt Test (NSS ACSS) 35℃±1℃ / Corrosion Test (CASS) 50℃±1℃ |
| Voltage | 220 V, 380 V |
| Power | 2000 W |
| Warranty | 2 Years |
Key Features
- High accuracy and reliability for testing material durability.
- Multiple brine tank capacities to suit various testing needs.
- Precise temperature control for accurate simulation.
- Robust construction for long-lasting use.
- Easy to operate with clear controls for testing parameters.
Applications
- Testing coatings and paints for corrosion resistance.
- Evaluating the durability of metals and alloys.
- Assessing the performance of automotive parts in corrosive conditions.
- Research and development in material science.
- Quality control in manufacturing processes.
Specification
| Model | KR-311A | KR-311B | KR-311C |
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing rooom temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the primary purpose of the Salt Spray Testing Equipment Aging Chamber?
The primary purpose of the Salt Spray Testing Equipment Aging Chamber is to evaluate the durability of materials in harsh, corrosive environments by simulating real-world conditions such as salt spray and corrosion.
2. What are the available brine tank capacities for this equipment?
The equipment is available in three brine tank capacities: 15L, 25L, and 40L.
3. What temperature ranges can be achieved for the brine and testing room?
The brine can be maintained at temperatures of 35℃±1℃ or 50℃±1℃, while the testing room can be set to 35℃±1℃ for salt tests and 50℃±1℃ for corrosion tests.
4. What is the significance of the pressure barrel temperature?
The pressure barrel temperature is crucial for accurately simulating corrosive conditions; it is set to 47℃±1℃ for salt tests (NSS ACSS) and 63℃±1℃ for corrosion tests (CASS).
5. How much does the equipment weigh?
The single gross weight of the Salt Spray Testing Equipment Aging Chamber is 85.000 kg.
6. What is the power rating of this equipment?
The Salt Spray Testing Equipment Aging Chamber has a power rating of 2000 W and operates at voltage options of 220 V and 380 V.
7. What is the warranty period for the equipment?
The equipment comes with a warranty period of 2 years, ensuring reliable performance and customer satisfaction.
8. Can this equipment be used for testing automotive parts?
Yes, the equipment is suitable for assessing the performance and durability of automotive parts in corrosive conditions.
9. What are the dimensions of the inner and outer boxes?
The inner box sizes are available in 60x45x40 cm, 90x60x50 cm, and 120x80x50 cm, while the outer box sizes are 107x60x118 cm, 141x88x128 cm, and 190x110x140 cm.
10. How much spray volume does the chamber provide?
The Salt Spray Testing Equipment Aging Chamber provides a spray volume of 1.0 to 2.0 ml per 80 cm² per hour.
11. Is the equipment easy to operate?
Yes, the equipment features clear controls for testing parameters, making it easy to operate and adjust settings as needed.
12. What types of materials can be tested with this equipment?
The equipment can be used to test coatings, paints, metals, alloys, and various materials to evaluate their corrosion resistance and durability.
13. What industries can benefit from this aging chamber?
Industries such as manufacturing, automotive, and material science research can benefit from this aging chamber for quality control and durability assessments.
14. How does this equipment ensure accuracy in testing?
The Salt Spray Testing Equipment Aging Chamber ensures accuracy through high precision temperature and pressure controls, which simulate real-world corrosive conditions.
15. Can this chamber be used for research and development purposes?
Yes, the chamber is suitable for research and development in material science, allowing for comprehensive material evaluations.
