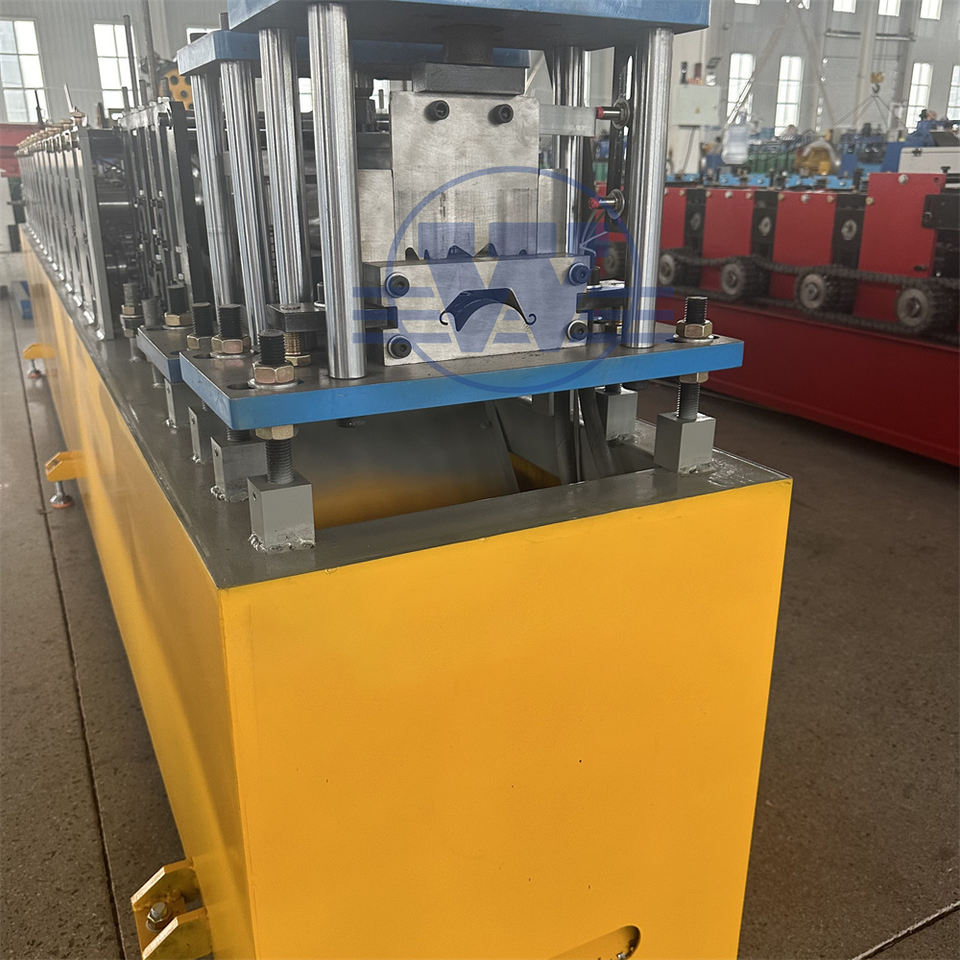

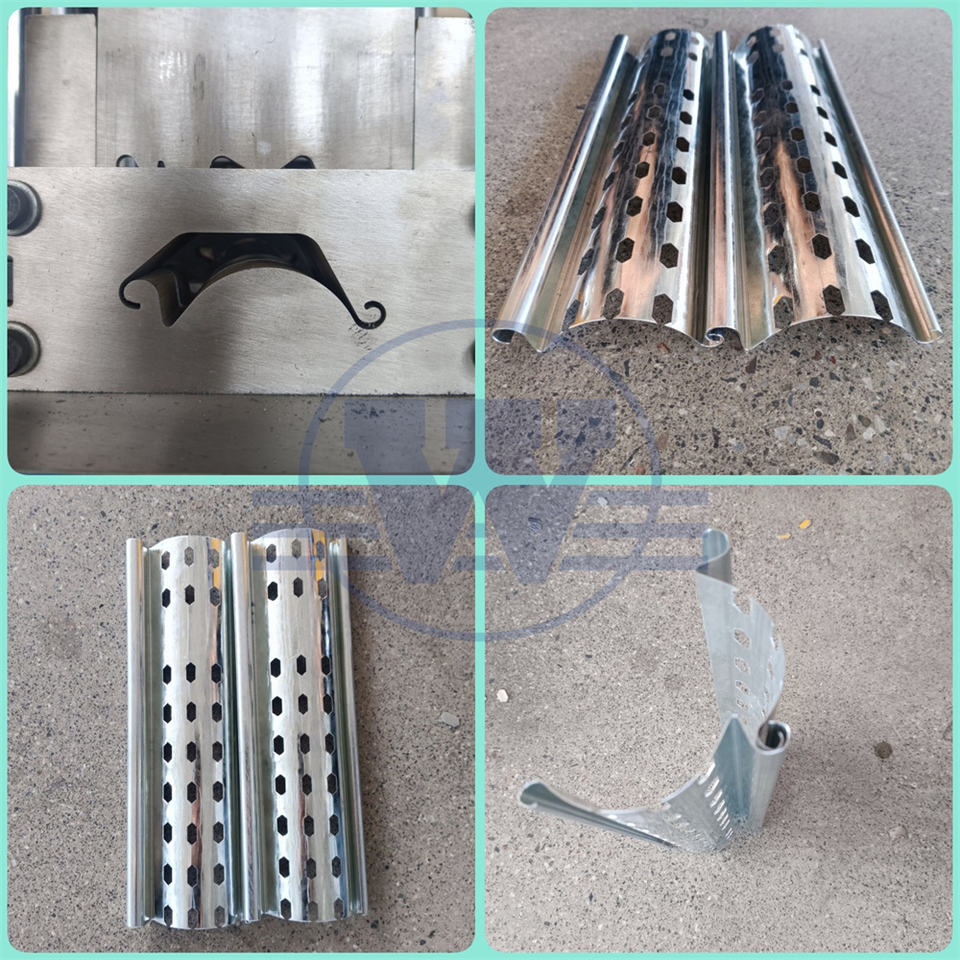

The Roller Shutter Making Machine is designed to efficiently produce metal steel shutter doors for various applications, including commercial and residential use.
The machine features a PLC control system, automatic hydraulic cutting, a 5T manual decoiler, and is built with high-quality materials. The dimensions are 5900*900*1500 mm and it can handle rolling thickness between 0.8 to 2 mm.
The machine weighs 3500 kg, ensuring robust construction and stability during operation.
The Roller Shutter Making Machine comes with a 2-year warranty, covering manufacturing defects and ensuring peace of mind for the users.
Yes, the machine is capable of creating custom shutter designs suitable for both commercial and residential properties.
The machine employs an automatic hydraulic cutting mechanism, which ensures precision and efficiency in the cutting process.
Yes, the machine features an easy-to-use PLC control system, making it accessible for operators with varying levels of experience.

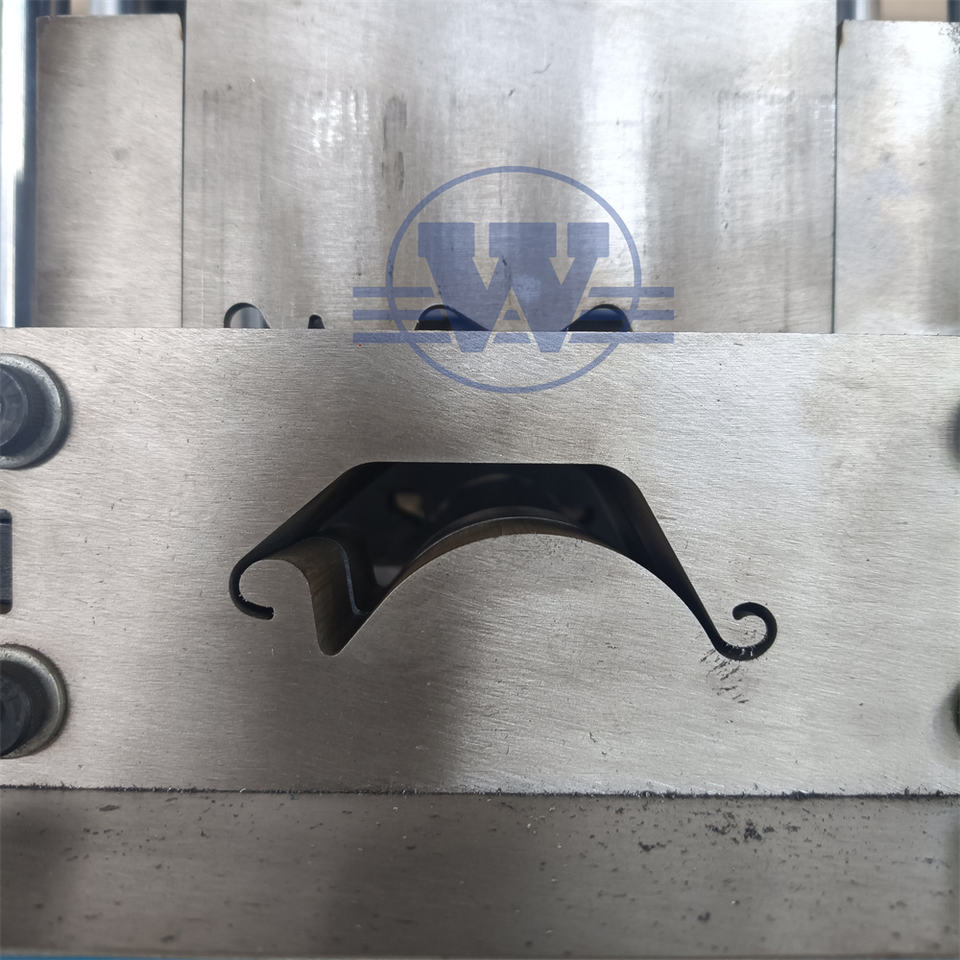

The cutting blade is made of GCr 12 high-grade steel, ensuring durability and longevity during operation.
The maximum feeding width for the Roller Shutter Making Machine is 124 mm.
Industries such as construction, retail, and warehousing can benefit from this machine by manufacturing strong and durable roller shutters for security and functionality.

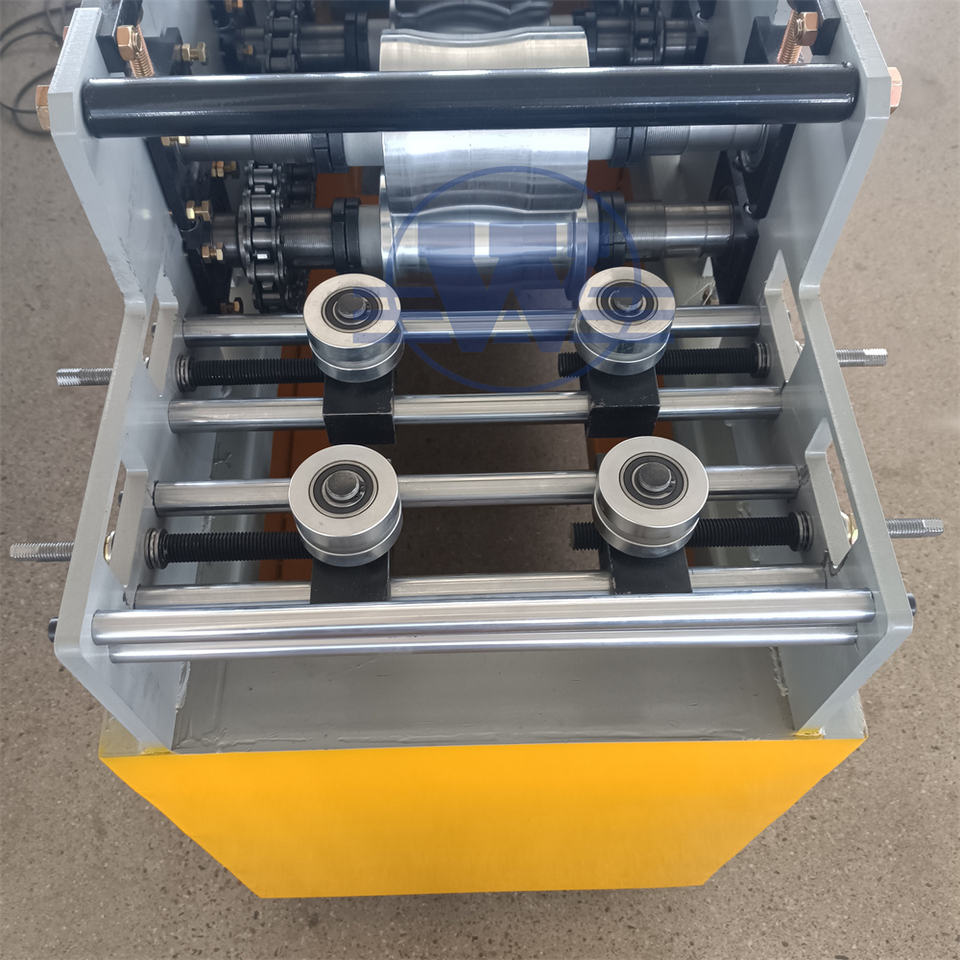

The machine includes a 5T manual decoiler with a braking function, which aids in the smooth feeding of the metal sheets into the rolling process.
The Roller Shutter Making Machine can roll metal sheets with a thickness ranging from 0.8 mm to 2 mm.
Yes, training and guidance on operating the machine are usually provided as part of the purchase agreement.
Regular maintenance includes checking the hydraulic system, lubricating moving parts, and ensuring that the PLC software is up to date to ensure optimal performance.
Absolutely, the machine is designed to produce strong and durable roller shutters, making it ideal for warehouses and other industrial applications.
