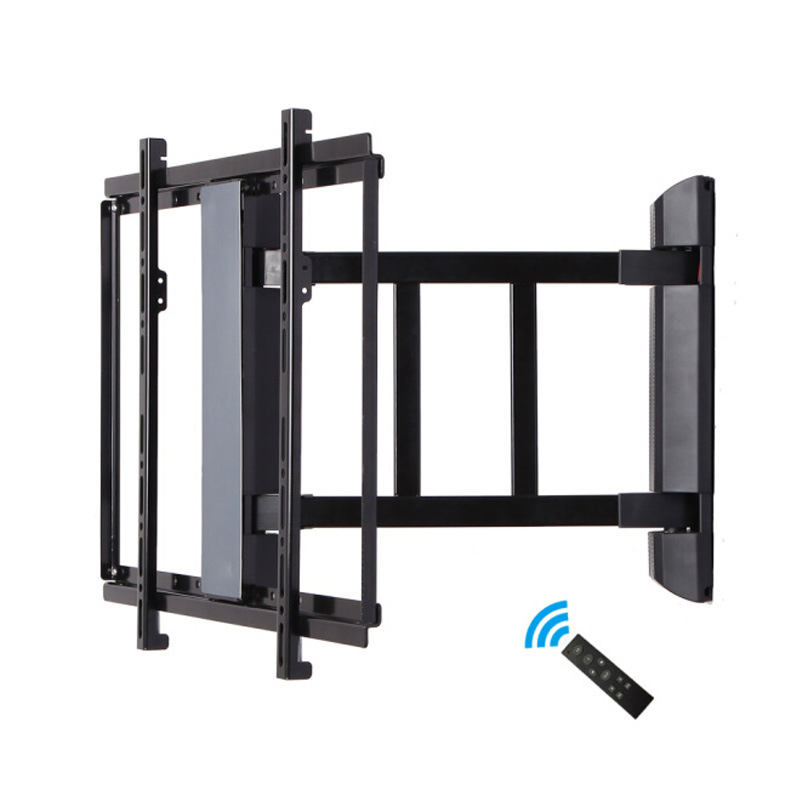

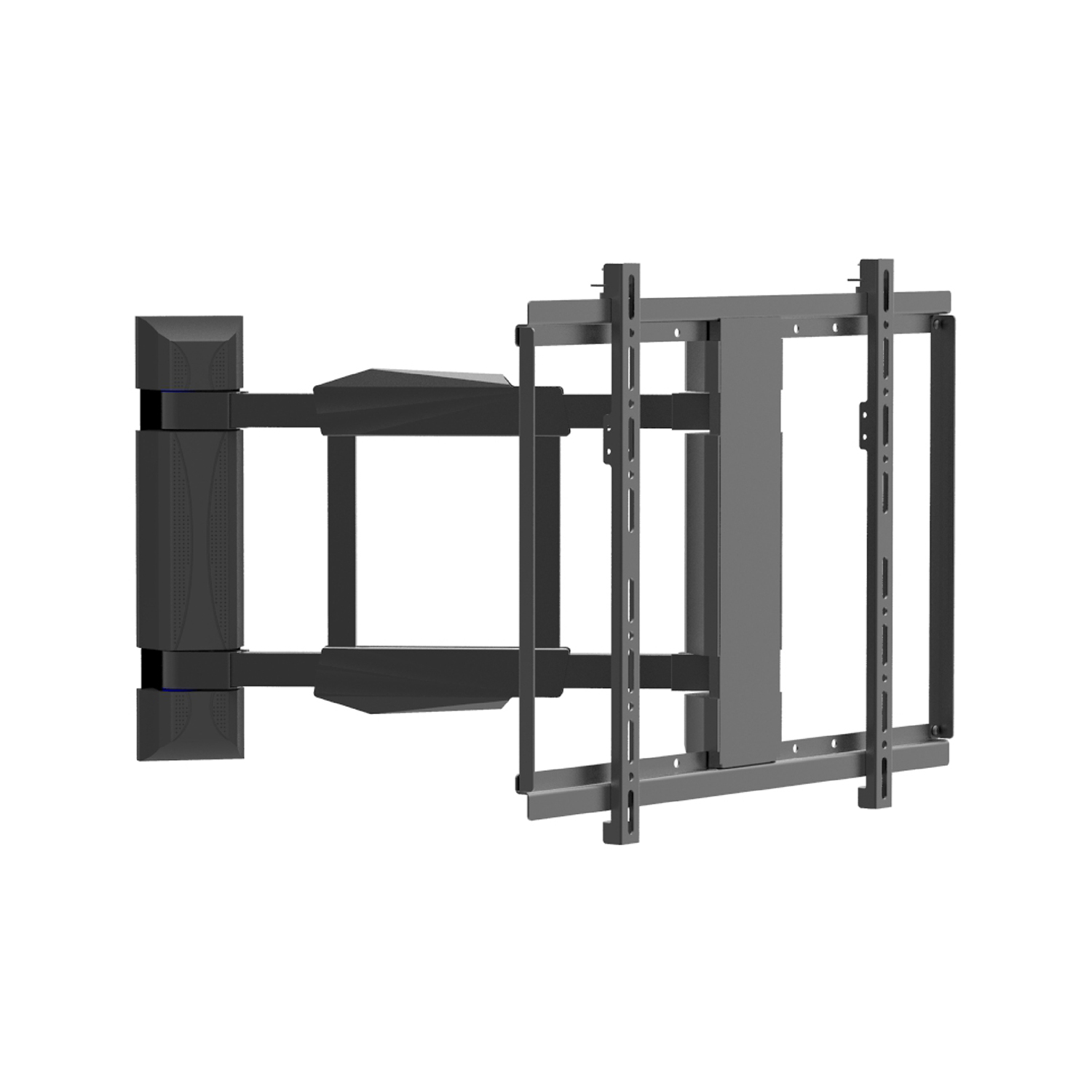

Remote control 32-70inch 180 degree Electric swing arm Full motion motorized TV wall mount
- Section : Consumer Electronics
- Category : Television, Home Audio, Video & Accessories
- SKU : 1600486591616
- Electric swing arm Full motion TV wall mount Intelligent remote control swivel arms TV wall bracket
Product Description
| Specification: | TV lift mechanism |
| Model No. | BST-R20,BSTRL21 |
| Main Material | Cold Rolled Steel |
| Color | Black |
| Finish | Electrostatic painting |
| TV Size | 32"-55",50"-70" |

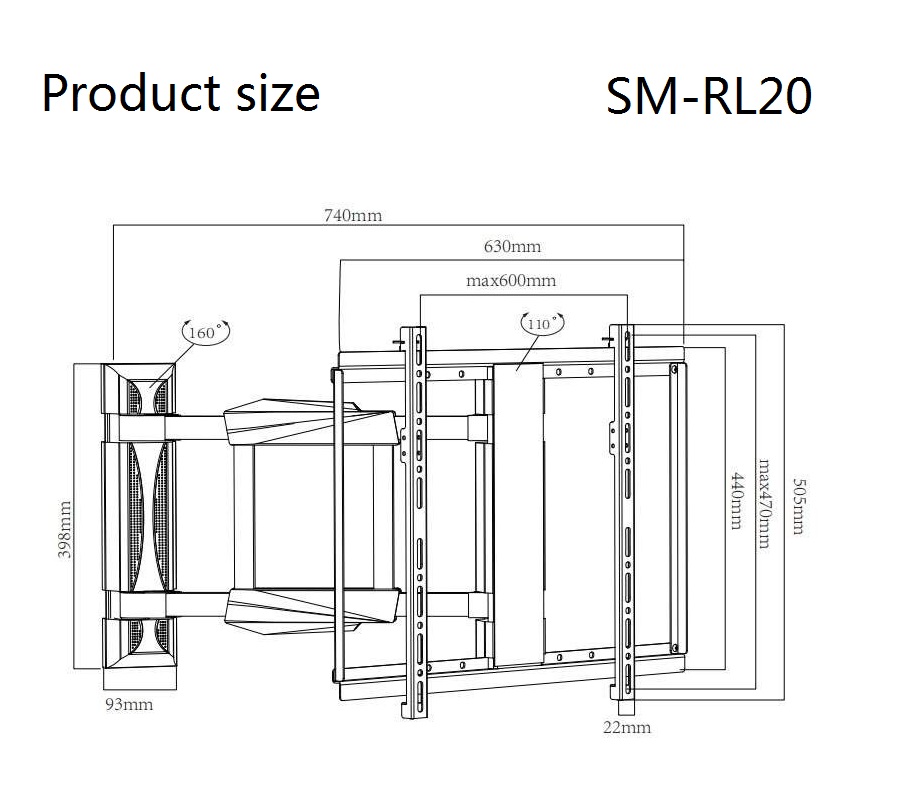

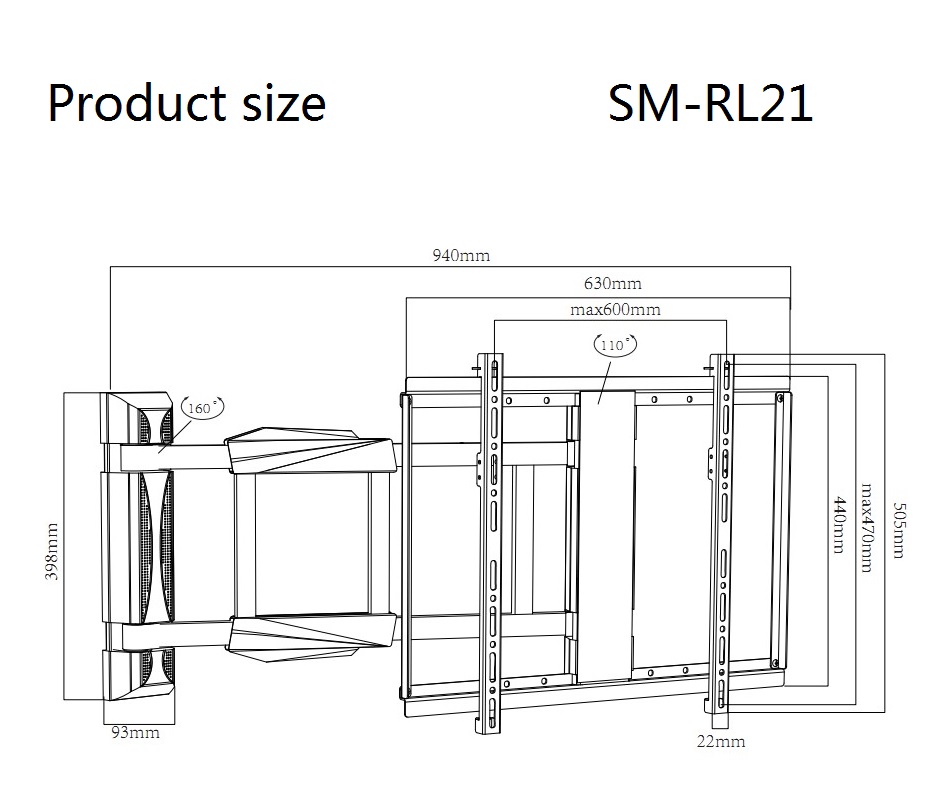

| Machine base plate size:: | 398*93mm |
| Unit Weight | 9.5kg |
| TV panel bracket size: | Max.900*430mm/Max. 1100*430 |
| VESA Compliant | 200x200-600*400mm |
| Flip Angle: | Left 70°,Right 70°(With memory function) |
| Power supply: | 220VAC, 50HZ |
| Working voltage: | DC12V,1A |
| MAX Load | 45 kgs/99lbs |
| Hardware | 1pc remote control, 1pc power cord, 1 bag screw. |
| English Manual | Included |
| Control mode | Remote control, |
| Strength Tested | 3time |
| Packing | 1 set/Neutral box |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What TV sizes and weights does this motorized wall mount support?
There are two compatible size ranges depending on model: 32"–55" and 50"–70". Maximum load capacity is 45 kg (99 lbs). Make sure your TV falls within the size range, VESA pattern and weight limit.
2. What VESA patterns and panel bracket dimensions are supported?
The mount supports VESA 200x200 up to 600x400 mm. TV panel bracket maximum dimensions are either 900x430 mm or 1100x430 mm depending on the bracket version—confirm which bracket your unit includes.
3. How far and how much does the mount swivel?
This is a full-motion electric swing arm with up to 180 degree movement and a flip (swivel) angle of 70° left and 70° right. It includes a memory function to return to saved positions.
4. What is included in the box?
Package includes the motorized swing arm assembly, 1 remote control, 1 power cord, 1 bag of screws/fasteners, and an English manual. Product is shipped 1 set per neutral box.
5. What are the power requirements?
Power input is 220 VAC, 50 Hz. The mount uses a 12 V DC working voltage at up to 1 A. If your local mains voltage differs (for example 110 V), you will need a suitable step-up/step-down transformer or contact your vendor for compatible model/options.
6. Is remote control operation the only control method?
The product is designed for remote-control operation. The supplied remote controls swivel/lift functions and the memory feature. For any manual override or pairing details, refer to the included English manual or contact the seller.
7. What are the physical dimensions and weight of the unit?
The machine base plate measures 398 x 93 mm. Unit weight is approximately 9.5 kg. Confirm bracket variant for panel bracket dimensions (900x430 mm or 1100x430 mm).
8. Can this mount be installed on any wall type?
It can be installed on solid, load-bearing walls and studs. For drywall, concrete, brick or plasterboard, use appropriate anchors and fasteners rated for the mount's weight. If in doubt, mount to a wood/metal stud or seek professional installation.
9. What tools and hardware are needed for installation?
Typical tools: electric drill, masonry bits (if drilling concrete), stud finder, level, socket/wrench set, Phillips screwdriver and measuring tape. The package includes a basic screw bag, but you may need heavier anchors or bolts depending on wall type—these are not always included.
10. Is the mount suitable for curved TVs?
It will work with curved TVs provided the TV's VESA pattern, bracket dimensions and weight are compatible. Check your TV's specifications against the mount's VESA and weight limits before purchasing.
11. Is motorized tilt supported (up/down tilt)?
The product specification lists motorized swivel/wing movement (left/right up to 70° each side) and a 180° swing arm. A motorized tilt (up/down) is not specified—if tilt is required, confirm with the seller or review the manual for any manual tilt capability.
12. Are there safety or durability tests?
The description notes the mount was strength-tested 3 times. Still, safe operation depends on correct installation and not exceeding the 45 kg load limit. Keep the area clear during operation and avoid forcing the arm if obstructed.
13. Can I use this mount outdoors or in humid environments?
The mount has an electrostatic paint finish and cold-rolled steel construction, but it is designed for indoor use. Outdoor or high-humidity installations are not recommended unless you confirm environmental suitability with the seller.
14. What if my TV is slightly outside the listed size range?
TV size rating is a guideline; the critical factors are VESA compatibility and weight. If your TV weight and VESA pattern fall within the mount's limits, it may fit even if the diagonal size differs. If unsure, contact the vendor with your TV model and measurements.
15. Is there a warranty or technical support?
Warranty and after-sales support details are not specified in the product description. Please check with the seller or retailer for warranty terms, service, and technical support contact information before purchase.
