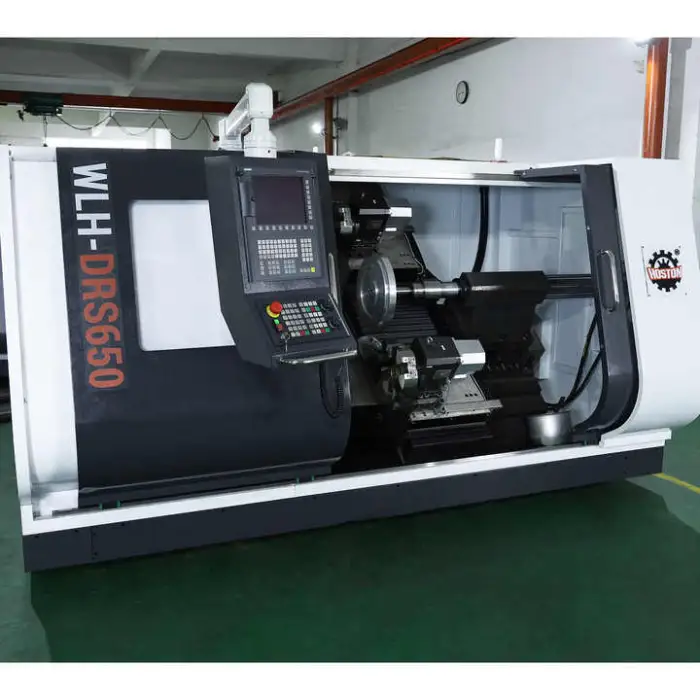

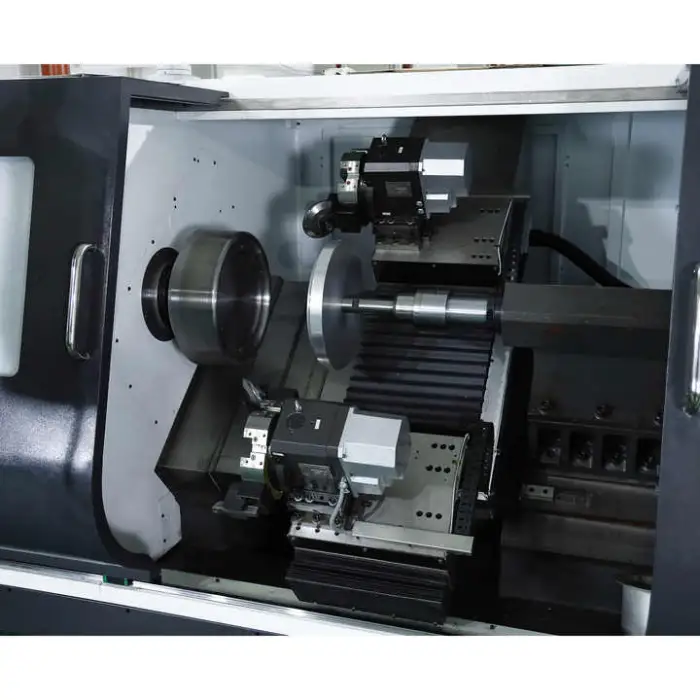

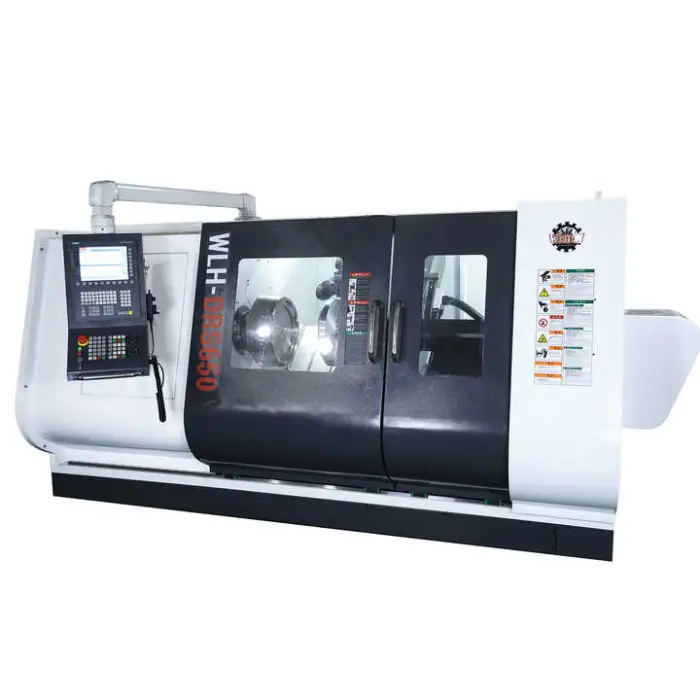

The maximum length of workpiece that can be used with the Reel Metal Flow Forming Wheels Combustor Chamber Tailpipe Nozzle Spinning Lathe CNC Metal Spinning Machine is 600 mm.
This machine can handle workpieces with a maximum weight of 30 kg.
The machine is equipped with a Siemens CNC control system, which provides automatic controls for ease of use.
The machine operates on 3 axes, allowing for complex machining operations.
The spindle speed range for this machine is from 25 to 2500 r.p.m.
The positioning accuracy of the machine is 0.015 mm.
The machine is equipped with 8 tool post stations.
The total weight of the Reel Metal Flow Forming Wheels Combustor Chamber Tailpipe Nozzle Spinning Lathe CNC Metal Spinning Machine is 4000 kg.

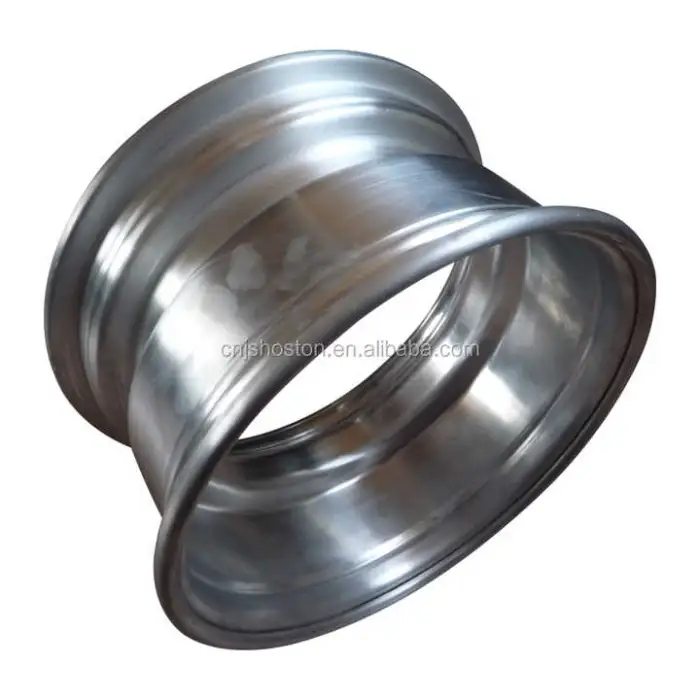

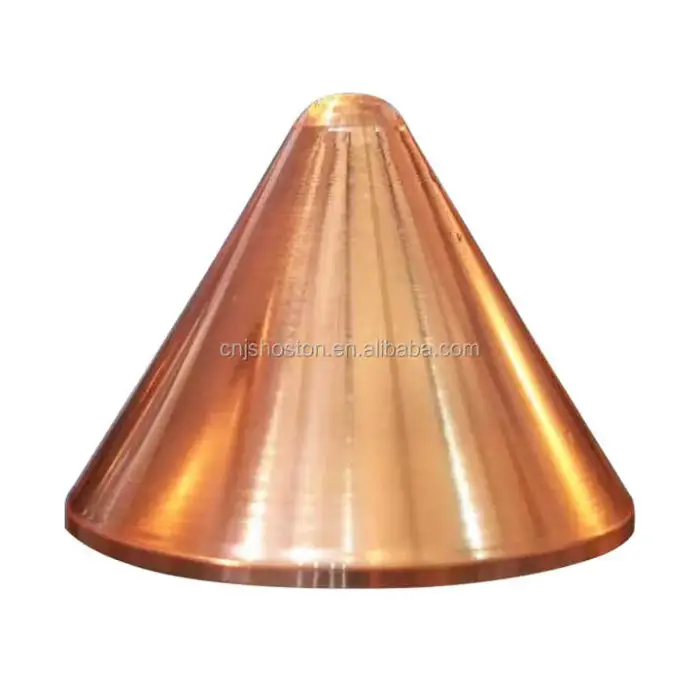

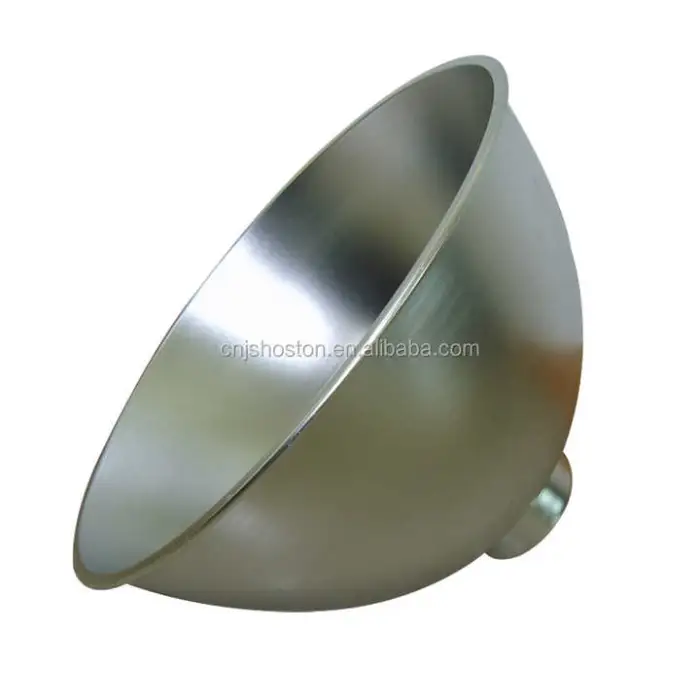

This machine is suitable for various industries, including manufacturing components for lighting fixtures and producing housewares.
The machine requires a power supply of 15 kW and can operate at voltages of 220V, 380V, or 415V.
The cutting torque capacity of the machine is 100 N.m.
The travel distance on both the X and Z axes is 750 mm.
Yes, it offers high precision machining with excellent positioning accuracy and repeatability.
The dimensions of the machine are 2800 mm in length, 1800 mm in width, and 1800 mm in height.
This machine is manufactured by Hoston.
