MSLBA51 Full Automatic Chemistry Analyzer For Efficient Biochemical Testing
- Section : Medical Supplies
- Category : Clinical Analytical Instruments
- SKU : 62013588202-1678350066
MSLBA51 Full Automatic Chemistry Analyzer for Efficient Biochemical Testing
The MSLBA51 Full Automatic Chemistry Analyzer is a high-performance instrument designed to streamline biochemical analysis. With advanced features such as automatic sample dilution and high throughput, this analyzer delivers accurate results for a wide range of laboratory testing needs.
Key Features
- High Throughput: Capable of performing up to 200 tests per hour, and up to 400 tests per hour with ISE, allowing for fast and efficient laboratory processing.
- Wide Sample Volume Range: The analyzer accommodates sample volumes ranging from 2μL to 45μL, with precise control in increments of 0.1μL, providing flexibility for different testing requirements.
- Automatic Sample Dilution: Features both pre-dilution and post-dilution capabilities for more accurate results, making it easier to handle a variety of sample types.
- Rotating Tray for Cuvettes: The reaction rotor can hold up to 40 reusable cuvettes, ensuring continuous operation and reducing the need for frequent cuvette replacements.
- Reusable Cuvettes: Cuvettes with an optical length of 5mm are designed for easy cleaning and reuse, helping to lower operational costs.
- Adjustable Reaction Volume: The system allows for reaction volumes between 100μL and 360μL, providing flexibility in test protocols.
- Optimal Operating Temperature: The analyzer operates at a consistent 37℃, ideal for biochemical reactions, ensuring stable and reliable results.
- Compact and Efficient Design: With a weight of 79 kg and compact dimensions of 690mm (length) x 580mm (depth) x 595mm (height), the MSLBA51 is space-efficient while providing high testing capacity.
The MSLBA51 Full Automatic Chemistry Analyzer is an ideal solution for laboratories looking to automate and streamline their biochemical testing processes. With its high throughput, precision, and advanced features, it ensures efficient operation while delivering accurate and reliable results.
Product Info Gallery

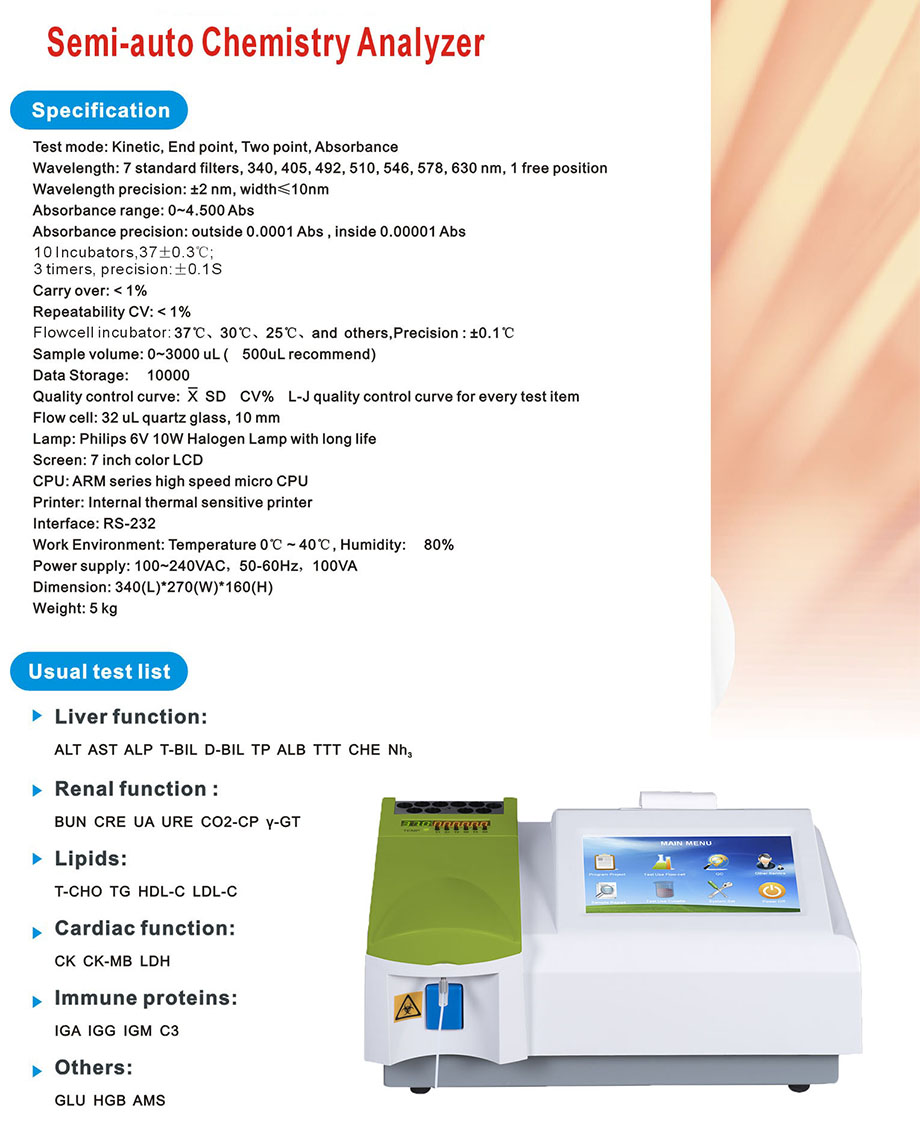

Product Parameter
| Test mode | Kinetic, end point, two point, absorbance |
| Wavelength | 7 standard filters, 340, 450, 492, 510, 546, 578, 630nm, 1 free position |
| Wavelength precision | ±2 nm, width ≤10nm |
| Absorbance range | 0~4.5Abs |
| Absorbance precision | outside 0.0001Abs, inside 0.00001Abs |
| Carry over | ＜1% |
| Data Storage | 10000 |
| Screen | 7 inch color LCD |
| CPU | ARM series high speed micro CPU |
| Printer | Internal thermal sensitive printer |
| Interface | RS-232 |
| Work environment | Temperature 0℃~40℃， humidity: 80% |
| Power supply | 100-240VAC, 50-60Hz, 100VA |
| Dimension | 340*270*160 |
| Weight | 5 kg |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the testing throughput of the MSLBA51?
The MSLBA51 performs up to 200 tests per hour in standard mode and can reach up to 400 tests per hour when used with an ISE module.
2. What sample volume range does the analyzer support?
It accepts sample volumes from 2 μL to 45 μL with precise dispensing control in 0.1 μL increments.
3. Does the MSLBA51 provide automatic sample dilution?
Yes. The analyzer features both pre-dilution and post-dilution functions to handle high-concentration samples and expand assay dynamic range automatically.
4. How many cuvettes does the reaction rotor hold and are they reusable?
The rotating reaction rotor holds up to 40 reusable cuvettes. The cuvettes have a 5 mm optical path length and are designed for easy cleaning and reuse to reduce operational costs.
5. What reaction volume range is supported?
Reaction volumes are adjustable between 100 μL and 360 μL to accommodate different assay protocols.
6. What is the operating temperature of the system?
The analyzer maintains a stable operating temperature of 37℃, optimized for biochemical reactions.
7. What are the physical dimensions and weight of the MSLBA51?
The main analyzer is compact: 690 mm (length) × 580 mm (depth) × 595 mm (height) and weighs approximately 79 kg.
8. Which wavelengths and optical specifications are available?
The MSLBA51 has seven standard filter wavelengths (340, 450, 492, 510, 546, 578, 630 nm) plus one free position. Wavelength precision is ±2 nm with bandwidth ≤10 nm.
9. What test modes does the instrument support?
Supported test modes include kinetic, end point, two-point, and direct absorbance measurements.
10. What is the absorbance performance and carry-over?
Absorbance range is 0–4.5 Abs. Absorbance precision is as good as 0.00001 Abs internally and 0.0001 Abs externally. Carry-over is less than 1%.
11. How is data displayed, stored and exported?
The analyzer features a 7-inch color LCD, internal thermal printer, and stores up to 10,000 results. It provides an RS-232 interface for data transfer to LIS or external systems.
12. What are the environmental and power requirements?
Operating environment: 0℃ to 40℃ with up to 80% relative humidity. Power supply: 100–240 VAC, 50–60 Hz.
13. What routine maintenance and cleaning are required?
Regular maintenance includes daily cleaning of reusable cuvettes and fluid paths, periodic reagent and waste line checks, and scheduled calibration/QC. Follow the user manual for specific cleaning agents and maintenance intervals.
14. What sample types are compatible with the MSLBA51?
The analyzer is compatible with common clinical sample types such as serum, plasma and urine. Always confirm sample suitability and pre-treatment requirements according to the assay/reagent instructions.
15. How can I get installation, training or technical support for the MSLBA51?
Installation, user training, validation assistance and after-sales support are provided by the manufacturer or authorized distributors. Contact your supplier for scheduling, warranty details and service packages.
