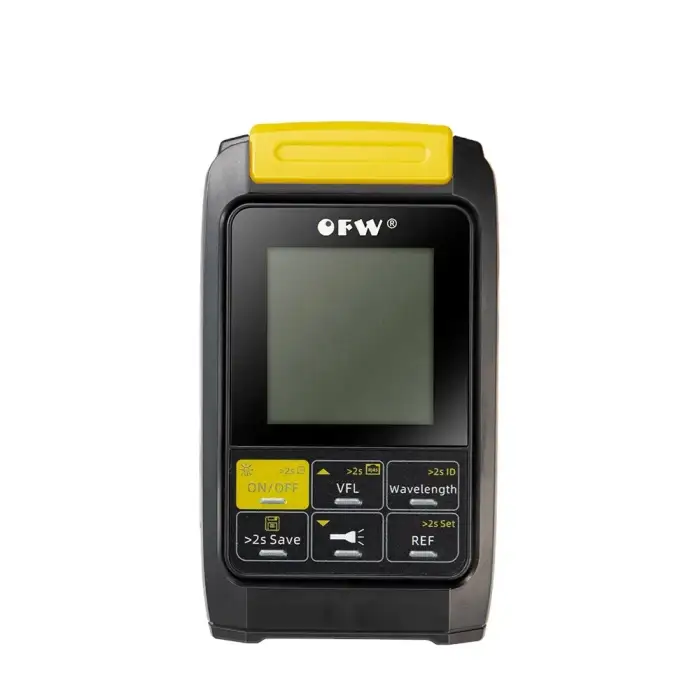

The Mini 4 in 1 Optical Power Meter is designed for testing optical fiber networks, locating faults in fiber optic cables, measuring power levels in FTTH networks, and verifying network performance in LAN setups.
Key features include 4 in 1 functionality for various testing needs, an easy-to-read display for quick results, a compact and portable design, a wide wavelength response for different fiber types, and accurate measurements with a resolution of 0.01dB.
The optical power meter can test distances ranging from 5km to 30km.
It can be used for FTTH networks, Wireless LAN, Wired LAN, POE, 4G, and 3G.
The wavelength response range is between 700nm and 1700nm.
The calibrated wavelengths include 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm.
The display range is from -70dBm to +10dBm and -50dBm to +30dBm.
The accuracy of the measurements is ±0.2dB.
The visual fault locator emits a visible light signal that helps to identify breaks or faults in the optical fiber cables.
The VFL has three power settings: 1mW, 20mW, and 30mW.
The device supports modulation test frequencies of 270Hz, 330Hz, 1kHz, and 2kHz.

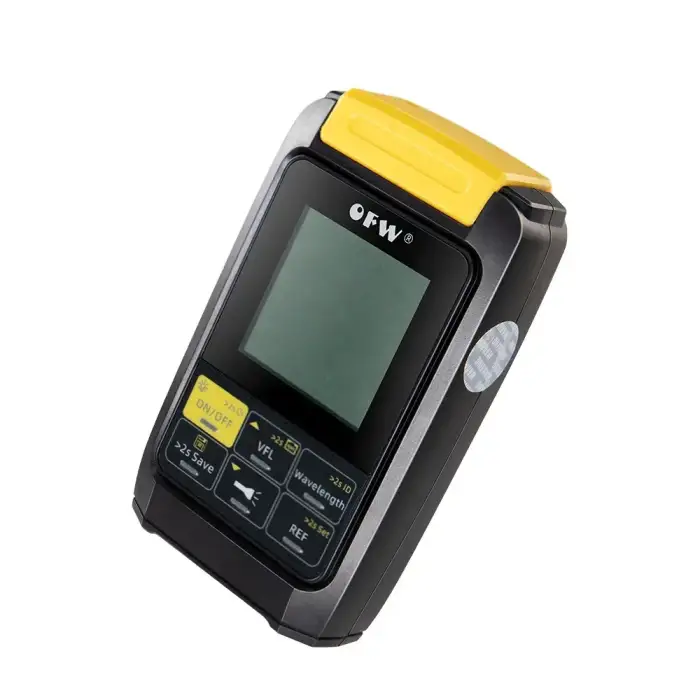

Yes, the optical power meter has a compact and portable design, making it easy to carry for field testing.
Yes, it is suitable for both professional and personal use in fiber optic installations.

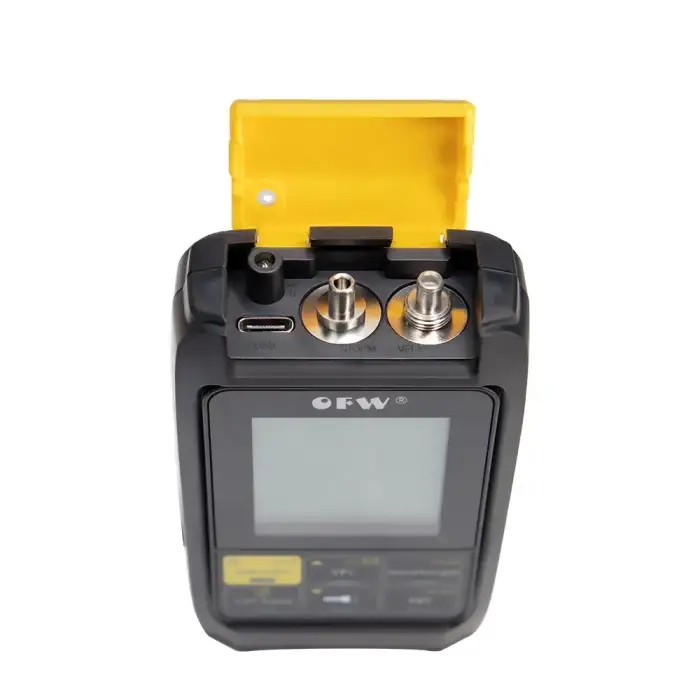

The optical power meter uses a 2.5mm universal connector for both OPM and VFL.

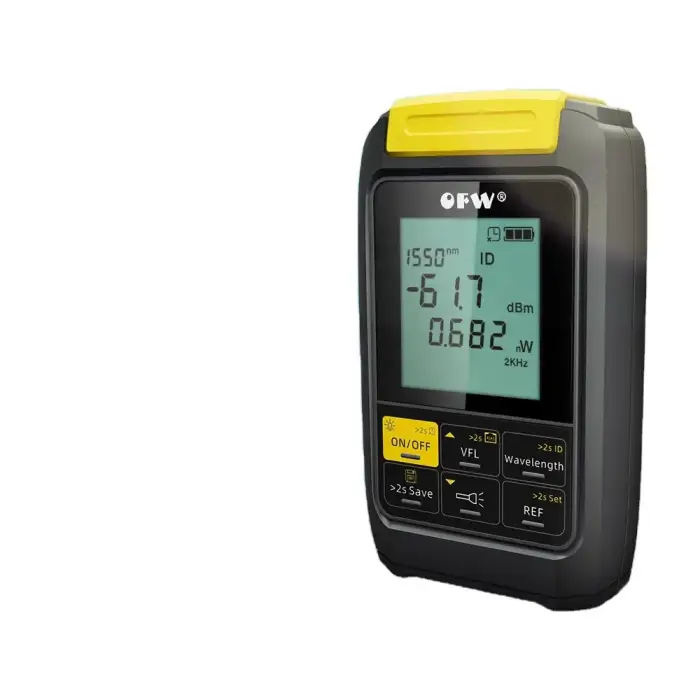

The device features an easy-to-read display that shows power levels in dBm, allowing you to quickly assess the performance of the optical fiber network.
