| Quantity | Price |
|---|

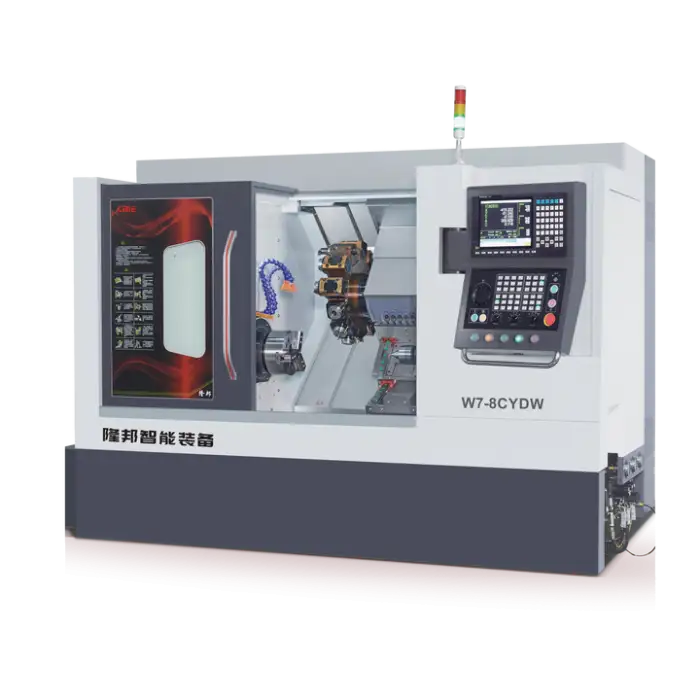

The Machine Automatic Slant Bed Lathe is a powerful tool designed for precision turning. This CNC lathe offers high accuracy and efficiency for various machining tasks. With its advanced features and robust build, it is perfect for heavy-duty applications. Whether you need to create intricate parts or perform straightforward tasks, this lathe will meet your needs effectively.
| Attribute | Details |
|---|---|
| Max. Length of Workpiece (mm) | 550 |
| Machining Capacity | Heavy Duty |
| Spindle Motor Power (kW) | 11 |
| No. of Spindles | Single Phase |
| Number of Axes | 5 |
| Travel (X Axis) (mm) | 250 |
| Travel (Z Axis) (mm) | 550 |
| Positioning Accuracy (mm) | ±0.003 |
| Repeatability (X/Y/Z) (mm) | ±0.003 |
| Voltage | 380V |
| Tool Post Stations | 12, 15 |
| Weight (kg) | 4200 |
| Width of Bed (mm) | 35 |
| Dimensions (L*W*H) | 3100*1700*1900 mm |
| Brand Name | LBI |
| Model Number | W7-8CYDWI |
| CNC Control System | FANUC/Syntek |
| Tailstock Form | Hydraulic |
| Lubrication Form | Grease |
| Hydraulic System | 7 Channels |
| Fixture | Hydraulic Chuck |
| Coolant Pump Power | 700W |
| Rapid Feedrate | 22 m/min |
| Max. Live Tool Speed | 4000 rpm |
| Condition | New |
| Year | Latest |
| Selling Units | Single item |
| Single Package Size | 60X10X10 cm |
| Single Gross Weight | 10.000 kgProduct Info Gallery
1. What is the maximum length of workpiece that can be machined on this lathe?The maximum length of the workpiece that can be machined on this lathe is 550 mm. 2. What is the spindle motor power of the Machine Automatic Slant Bed Lathe?The spindle motor power of this lathe is 11 kW. 3. How many axes does this CNC lathe have?This CNC lathe has a total of 5 axes. 4. What is the positioning accuracy of the lathe?The positioning accuracy of the lathe is ±0.003 mm. 5. What type of CNC control system does this lathe use?The lathe uses either a FANUC or Syntek CNC control system. 6. What is the weight of the Machine Automatic Slant Bed Lathe?The weight of the lathe is 4200 kg. 7. What is the maximum live tool speed for this lathe?The maximum live tool speed for this lathe is 4000 rpm. 8. What is the rapid feedrate of this machine?The rapid feedrate of the machine is 22 m/min. 9. What is the lubrication form used in this lathe?This lathe uses grease for lubrication. 10. What is the hydraulic system configuration of the lathe?The hydraulic system of the lathe consists of 7 channels. 11. Does this lathe come with a hydraulic chuck?Yes, this lathe features a hydraulic chuck as its fixture. 12. What are the dimensions of the Machine Automatic Slant Bed Lathe?The dimensions of the lathe are 3100 mm (L) x 1700 mm (W) x 1900 mm (H). 13. What is the travel distance on the X and Z axes?The travel distance on the X axis is 250 mm, and on the Z axis, it is 550 mm. 14. Is the Machine Automatic Slant Bed Lathe suitable for heavy-duty applications?Yes, this lathe is designed for heavy-duty machining tasks. 15. What is the condition of the Machine Automatic Slant Bed Lathe?The lathe is brand new. 00 Overall Rating
