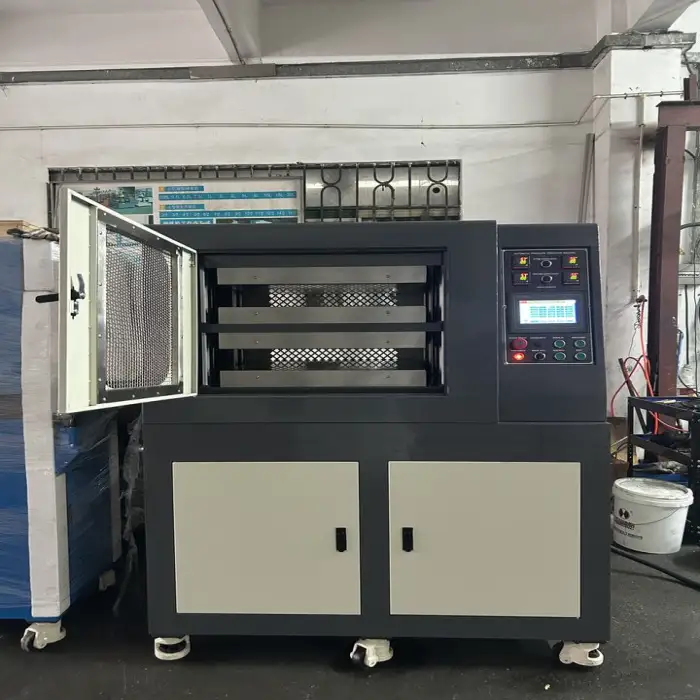

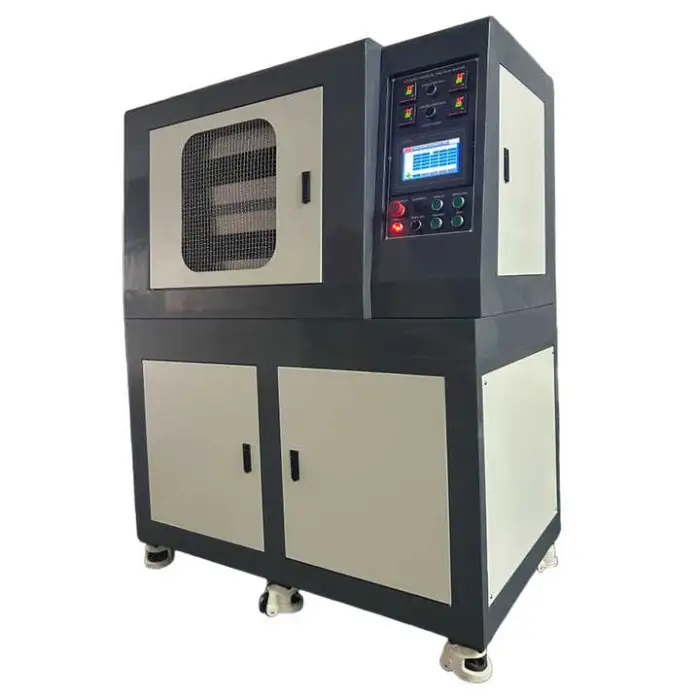

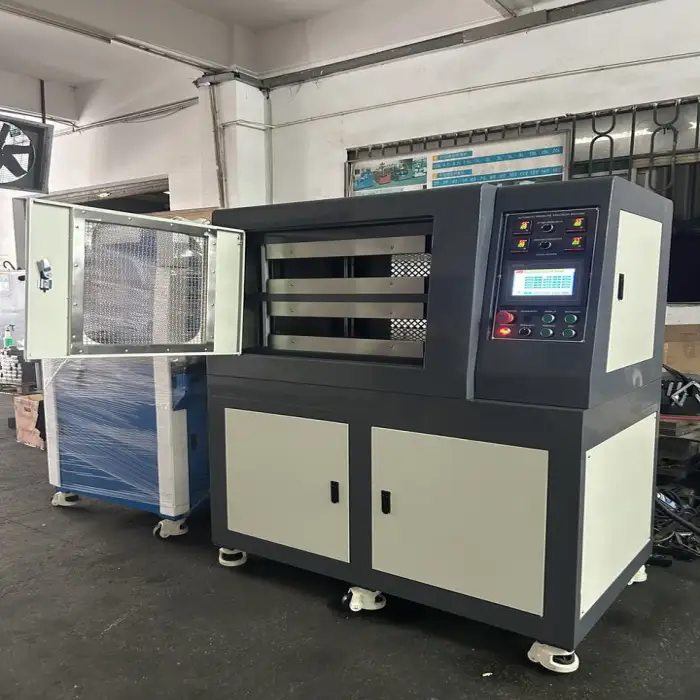

The main purpose of the Hydraulic Vacuum Vulcanization Machine is to efficiently mold and cure rubber and silicone materials using advanced technology, ensuring high-quality production in the rubber industry.
The machine is equipped with a powerful motor that has a power rating of 10.6HP.
The machine can handle a maximum pressure of 350kg/sq.cm, which is monitored by an accurate pressure gauge.
The temperature range for this machine is from room temperature up to 300℃.
The LED timer allows for precise molding time management, with a time range from 0.1 seconds to 99 minutes and up to 9.9 hours.
The dimensions of the machine are 1000mm in length, 500mm in width, and 1500mm in height.
The machine weighs 600.000 kg.
The machine requires an AC power supply of 380V.
Yes, the Hydraulic Vacuum Vulcanization Machine comes with a 24-month warranty.
This machine is suitable for manufacturing rubber sheets, curing silicone materials, producing tire components, and creating molded rubber parts for automotive and industrial applications.
Yes, the Hydraulic Vacuum Vulcanization Machine is suitable for small to medium scale rubber processing operations.
Key features include high efficiency with a 10.6HP motor, accurate pressure control, a wide temperature range, an LED timer, and a robust construction for durability.
The combination of advanced technology, precise control over pressure and temperature, and a powerful motor ensures high-quality production and excellent performance.
This machine is specifically designed to process rubber and silicone materials.
The maximum oil cylinder stroke length is 200mm.
