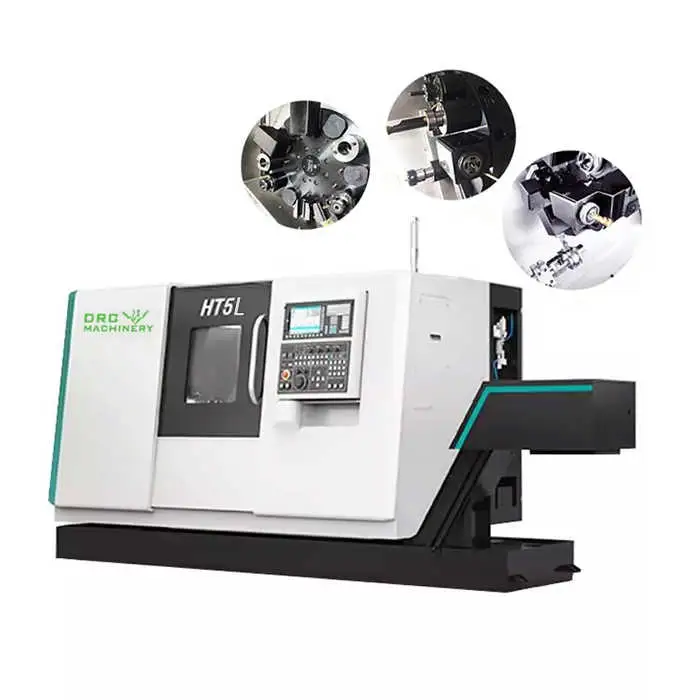

The High Stability CNC Turning Center HT5L can handle a maximum workpiece length of 800 mm.
The spindle motor power of the HT5L CNC lathe is available in two options: 11 kW and 15 kW.

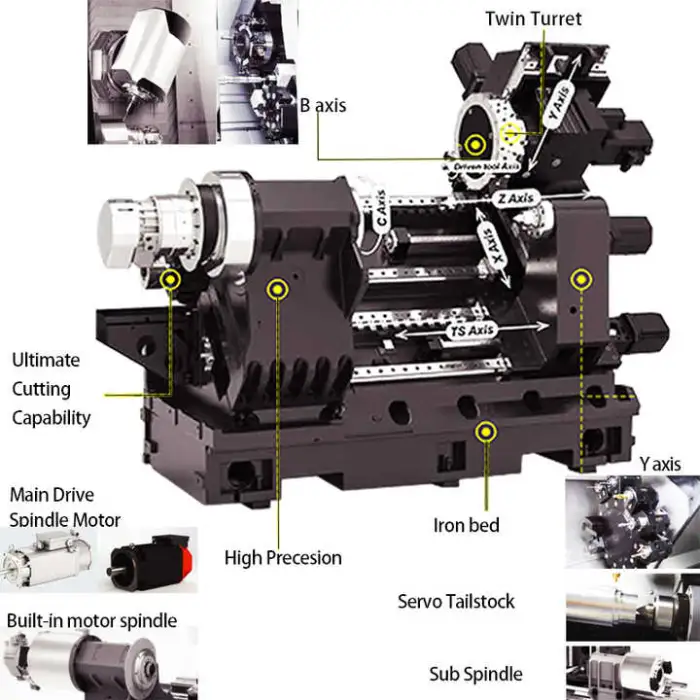

The HT5L CNC lathe features 7 axes for enhanced machining capabilities.
The positioning accuracy of the HT5L CNC lathe is ±0.008 mm.
The HT5L CNC lathe uses the FANUC control system, specifically the FANUC 0iTF + MGi.
The HT5L CNC lathe weighs approximately 4000 kg.
The HT5L CNC lathe operates at a voltage of 220V.

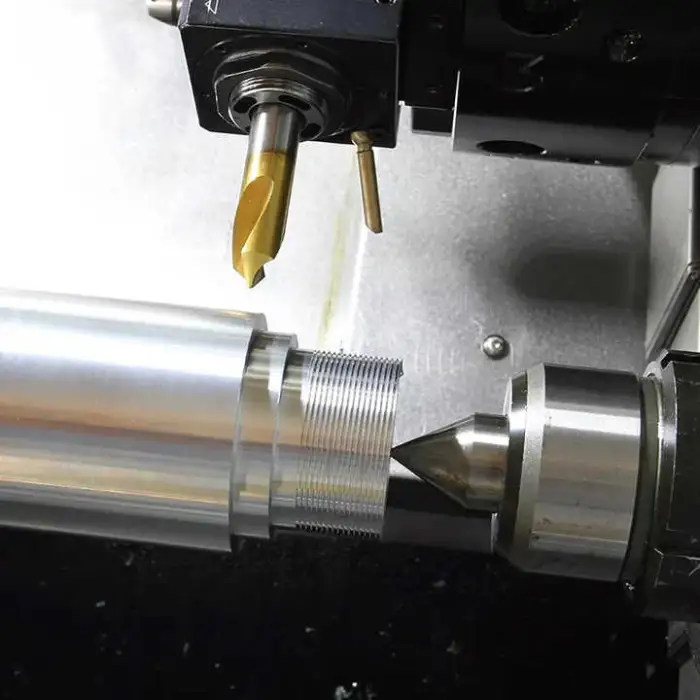

The HT5L CNC lathe can perform various machining operations, including turning, milling, and other machining tasks.
The maximum cutting diameter for the HT5L CNC lathe is 390 mm.
The speed range of the HT5L CNC lathe is up to 4500 rpm.
Yes, the HT5L CNC lathe comes with a machinery test report provided.
The HT5L CNC lathe features 12 tool post stations.
The width of the bed on the HT5L CNC lathe is 576 mm.
The dimensions of the HT5L CNC lathe are approximately 4080 mm in length, 1850 mm in width, and 1800 mm in height.
Yes, the HT5L CNC lathe is designed for heavy cutting and offers high rigidity and precision.
