The GMC2514 has a maximum load capacity of 4.5 tons, while the GMC3014 can support up to 5.5 tons.
The spindle speed for both models ranges from 1 to 8000 rpm, with a maximum speed of 6000 rpm for the GMC2514 and 8000 rpm for the GMC3014.
The GMC2514 GMC3014 features a fast tool change time of only 3 seconds.

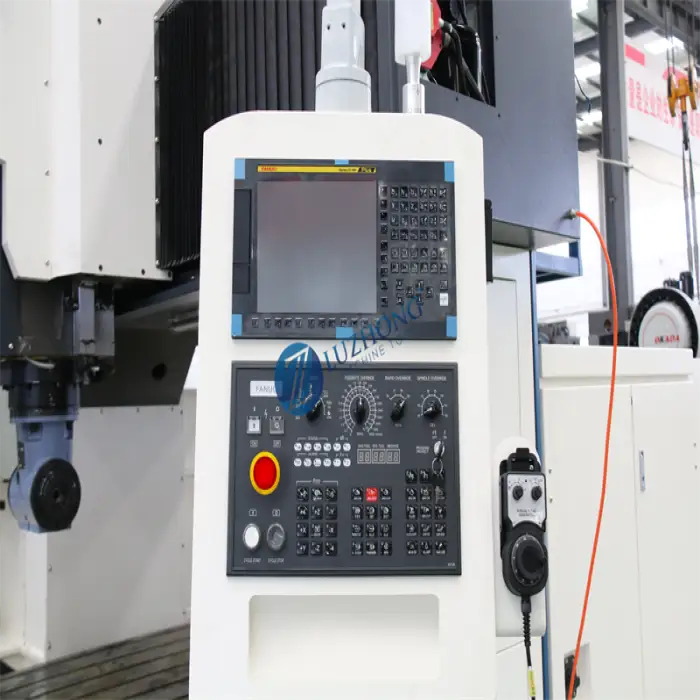

The GMC2514 GMC3014 milling machine is compatible with GSK, SIEMENS, and FANUC control systems.

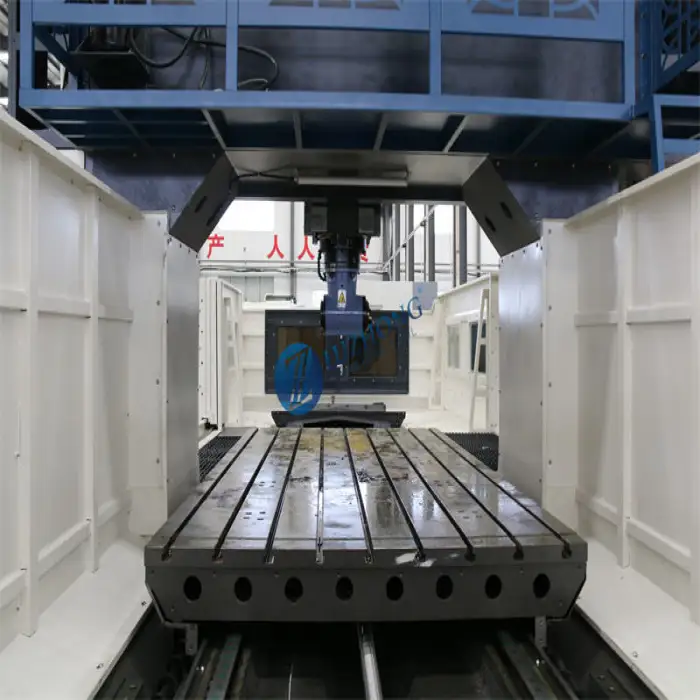

The GMC2514 has a table size of 1200 x 2600 mm, while the GMC3014's table size is 1200 x 3100 mm.
The GMC2514 GMC3014 comes with a warranty period of 13 months.
The GMC2514 weighs approximately 18.5 tons, and the GMC3014 weighs about 20 tons.
This machine is ideal for machining complex parts in aerospace, manufacturing precision components for automotive applications, creating molds and dies, producing intricate designs for medical equipment, and custom machining for specialized industrial applications.
The cutting feed speed for both models is 10 m/min.
The repeat positioning accuracy is ±0.005 mm for both the GMC2514 and GMC3014.
Yes, the GMC2514 GMC3014 is designed for heavy-duty machining tasks and can support large workpieces up to 5500 kg.
The rapid traverse speed for both the X and Y axes is 15 m/min.
The maximum distance between the spindle nose and table surface is between 150 mm and 950 mm.

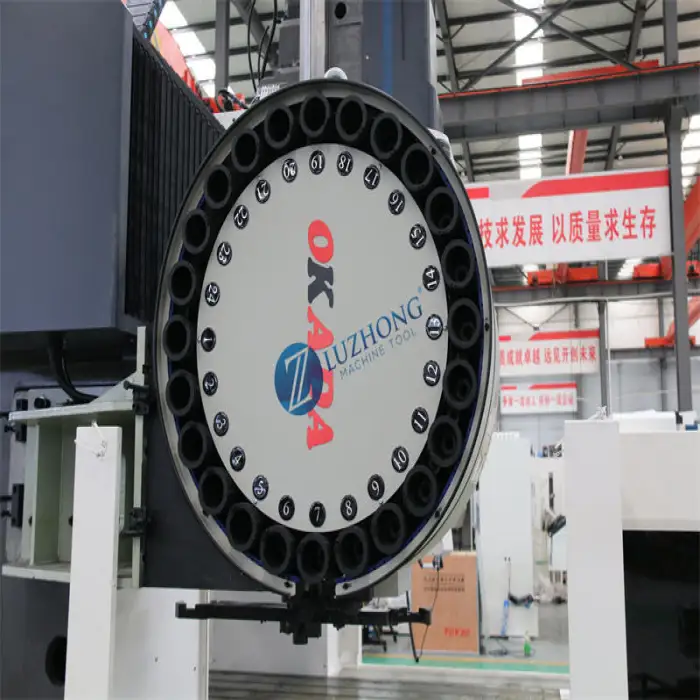

Both models feature an arm-type tool magazine with a capacity of 24 tools.
The overall dimension of the GMC3014 is 6600 x 3200 x 3700 mm.
