Computerized Electronic Universal Tensile Compress Testing Equipment Universal Material Testing Machine
- Section : Consumer Electronics
- Category : Testing Equipment
- SKU : 1601132559453

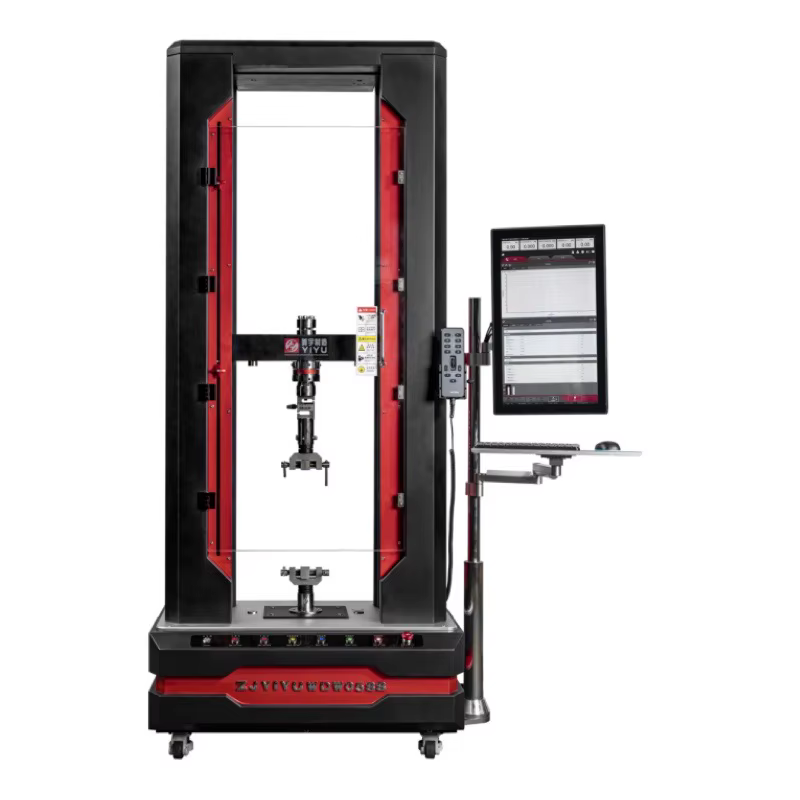

Computerized Electronic Universal Tensile Compress Testing Equipment Universal Material Testing Machine
The Computerized Electronic Universal Tensile Compress Testing Equipment is a state-of-the-art machine designed for testing materials. With its hydraulic working principle and precise measurements, this universal material testing machine is perfect for laboratories and industries. It helps ensure that materials meet the required standards for strength and durability.
Specifications
| Attribute | Details |
|---|---|
| Capacity | 20KN |
| Display | PC software |
| Material | Thick Steel |
| Precision | Class 0.5 |
| Result | Direct reading |
| Selling Units | Single item |
| Single Gross Weight | 700.000 kg |
| Single Package Size | 110X60X208 cm |
| Standard | BS, ASTM |
| Working Principle | Hydraulic extension force |
| Brand Name | YIYU |
| Warranty | 1 year |
| Model Number | WDW-20 |
Key Features
- High capacity of 20KN for various material tests.
- Easy-to-use PC software for displaying results.
- Constructed with durable thick steel for longevity.
- High precision with a class 0.5 rating.
- Direct reading results for quick assessments.
- Compliant with BS and ASTM standards.
Applications
- Testing tensile strength of materials.
- Evaluating compressive strength in construction materials.
- Quality control in manufacturing processes.
- Research and development in material science.
- Educational purposes in engineering laboratories.
| Model | WDW-05SS | WDW-20SS | WDW-50SS | WDW- 100SS | WDW-200SS |
| Maximum test force | 5KN | 20KN | 50KN | 100KN | 200KN |
| Accuracy grade | 0.5 Grade | 0.5 Grade | 0.5 Grade | 0.5 Grade | 0.5 Grade |
| Host structure form | gantry type | gantry type | gantry type | gantry type | gantry type |
| Test force measurement range | 0.4% to 100%F•S | 0.4% to 100%F•S | 0.4% to 100%F•S | 0.4% to 100%F•S | 0.4% to 100%F•S |
| Test force indication accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Test force resolution | ±500000 yards | ±500000 yards | ±500000 yards | ±500000 yards | ±500000 yards |
| Deformation measurement range | 1% to 100%F•S | 1% to 100%F•S | 1% to 100%F•S | 1% to 100%F•S | 1% to 100%F•S |
| The accuracy of deformation indication is | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Deformation resolution | ±500000 yards | ±500000 yards | ±500000 yards | ±500000 yards | ±500000 yards |
| Displacement indication accuracy | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% |
| Displacement resolution | 0.04μm | 0.04μm | 0.04μm | 0.04μm | 0.04μm |
| Force control rate adjustment range | 0.005 ~ 10% F•S/s | 0.005 ~ 10% F•S/s | 0.005 ~ 10% F•S/s | 0.005 ~ 10% F•S/s | 0.005 ~ 10% F•S/s |
| Force control speed control accuracy | Force control rate < 0.05% F•S/s: ±0.5% Force control rate ≥0.05% F•S/s: ±0.3% | Force control rate < 0.05% F•S/s: ±0.5% Force control rate ≥0.05% F•S/s: ±0.3% | Force control rate < 0.05% F•S/s: ±0.5% Force control rate ≥0.05% F•S/s: ±0.3% | Force control rate < 0.05% F•S/s: ±0.5% Force control rate ≥0.05% F•S/s: ±0.3% | Force control rate < 0.05% F•S/s: ±0.5% Force control rate ≥0.05% F•S/s: ±0.3% |
| Elongation rate adjustment range | 0.005 ~ 10% FS/s | 0.005 ~ 10% FS/s | 0.005 ~ 10% FS/s | 0.005 ~ 10% FS/s | 0.005 ~ 10% FS/s |
| Elongation rate control accuracy | Elongation rate < 0.05% F•S/s: ±0.5% Elongation rate ≥0.05% F•S/s: ±0.3% | Elongation rate < 0.05% F•S/s: ±0.5% Elongation rate ≥0.05% F•S/s: ±0.3% | Elongation rate < 0.05% F•S/s: ±0.5% Elongation rate ≥0.05% F•S/s: ±0.3% | Elongation rate < 0.05% F•S/s: ±0.5% Elongation rate ≥0.05% F•S/s: ±0.3% | Elongation rate < 0.05% F•S/s: ±0.5% Elongation rate ≥0.05% F•S/s: ±0.3% |
| The displacement rate adjustment range | 0.001 ~ 800mm/min | 0.001 ~ 800mm/min | 0.001 ~ 800mm/min | 0.001 ~ 800mm/min | 0.001 ~ 800mm/min |
| The displacement rate control accuracy | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Constant force, constant deformation, constant displacement control range | 0.5% ~ 100% F.S | 0.5% ~ 100% F.S | 0.5% ~ 100% F.S | 0.5% ~ 100% F.S | 0.5% ~ 100% F.S |
| Constant force, constant deformation, constant displacement control precision | Set value < 10% F•S/s: ±0.5% Set value ≥10% F•S/s: ±0.3% | Set value < 10% F•S/s: ±0.5% Set value ≥10% F•S/s: ±0.3% | Set value < 10% F•S/s: ±0.5% Set value ≥10% F•S/s: ±0.3% | Set value < 10% F•S/s: ±0.5% Set value ≥10% F•S/s: ±0.3% | Set value < 10% F•S/s: ±0.5% Set value ≥10% F•S/s: ±0.3% |
| Maximum movement distance of the beam | 1100mm (excluding fixtures) | 1100mm (excluding fixtures) | 1100mm (excluding fixtures) | 1050mm (excluding | 1050mm (excluding |
| Effective test width | 430mm | 430mm | 430mm | 575mm | 575mm |
| Host dimensions | 1150mm x600 mm x2080 mm | 1150mm x600 mm x2080 mm | 1150mm x600 mm x2080 mm | 1230mm x700 mm x2360mm | 1230mm x700 mm x2360mm |
| Power | 220V±10% 50Hz 750W | 220V±10% 50Hz 750W | 220V±10% 50Hz 750W | 220V±10% 50Hz 1300W | 220V±10% 50Hz 1500W |
| Machine weight | 700KG | 700KG | 700KG | 1200KG | 1200KG |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum capacity of the Computerized Electronic Universal Tensile Compress Testing Equipment?
The maximum capacity of the equipment is 20KN.
2. What materials can be tested using this machine?
The machine can test a variety of materials, including metals, plastics, and composites, specifically designed for tensile and compressive strength testing.
3. Is the testing equipment compliant with any standards?
Yes, the equipment is compliant with BS and ASTM standards.
4. What type of display does the equipment use?
The machine uses PC software for displaying results, providing easy access to data.
5. What is the precision rating of this testing machine?
The testing machine has a precision rating of Class 0.5.
6. How is the machine powered?
The machine operates on a hydraulic working principle, using hydraulic extension force for testing.
7. What is the warranty period for this product?
The product comes with a 1-year warranty.
8. Can this machine be used for educational purposes?
Yes, it is suitable for educational purposes in engineering laboratories.
9. What is the gross weight of the machine?
The single gross weight of the machine is 700.000 kg.
10. What are the dimensions of the packaging?
The single package size is 110X60X208 cm.
11. Is the machine easy to operate?
Yes, the machine is designed to be user-friendly, with easy-to-use PC software for displaying results.
12. What applications can this machine be used for?
Applications include testing tensile strength, evaluating compressive strength, quality control in manufacturing, and research and development in material science.
13. What is the construction material of the machine?
The machine is constructed with durable thick steel for enhanced longevity.
14. How quickly can I get results from the tests?
The machine provides direct reading results for quick assessments.
15. What is the model number of this testing equipment?
The model number of this testing equipment is WDW-20.
