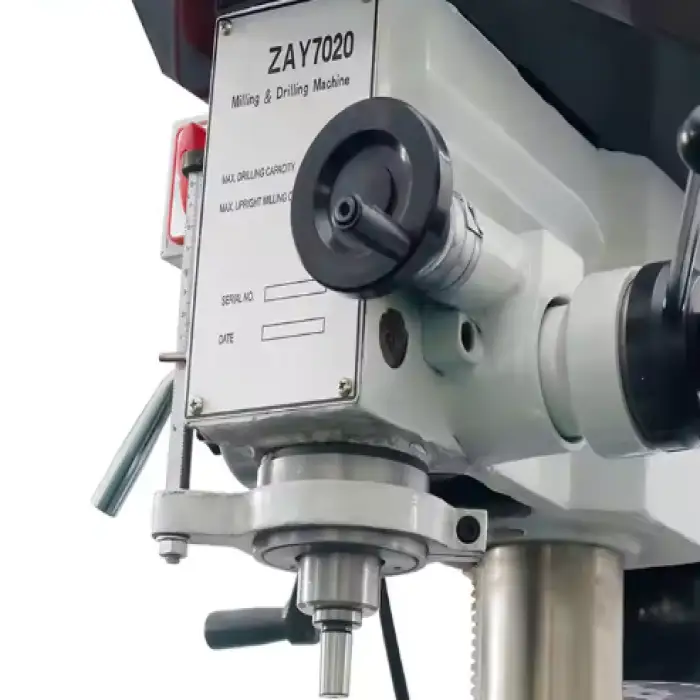

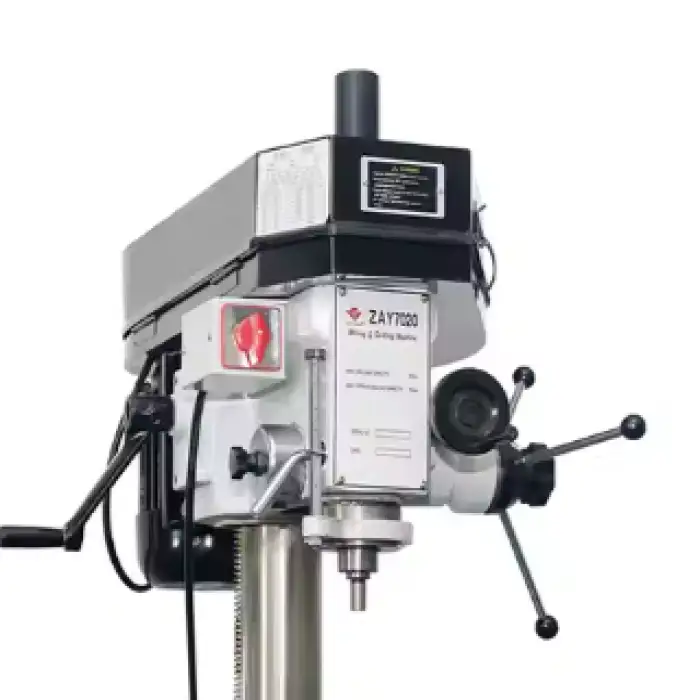

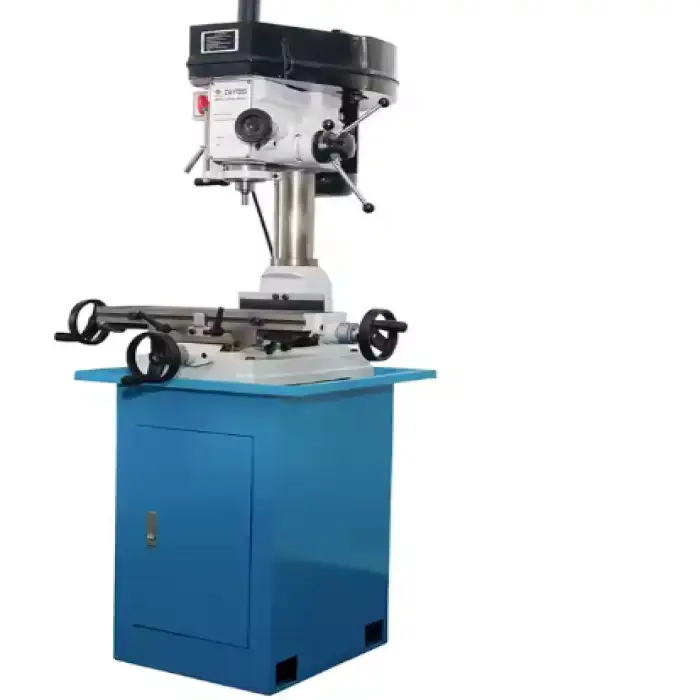

The ZAY7020 Mini Milling Drilling Machine is designed for both milling and drilling tasks, making it ideal for various applications in small workshops and DIY projects.
The maximum drilling diameter the ZAY7020 can handle is 20mm.
The spindle speed range of the ZAY7020 is adjustable from 100 to 2200 revolutions per minute (r.p.m).
The power rating of the ZAY7020 is 0.55 kW.
The net weight of the machine is 130 kg, and the gross weight is 190 kg.
The dimensions of the ZAY7020 are 620mm in length, 750mm in width, and 1000mm in height.

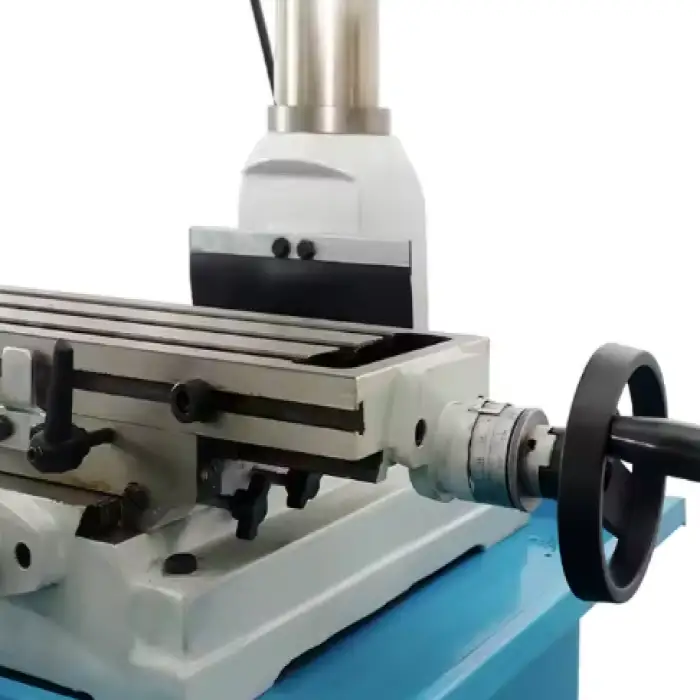

The table size of the ZAY7020 is 520mm by 160mm.
The spindle travel capacity of the ZAY7020 is 80mm.
The distance from the spindle nose to the table is 435mm.
The face milling capacity of the ZAY7020 is 63mm.
Yes, the ZAY7020 features a compact and user-friendly design, making it suitable for beginners as well as experienced users.
The ZAY7020 is suitable for metalworking, woodworking, model making, and prototyping tasks.
Yes, the spindle speed can be adjusted to accommodate various tasks and materials.
The ZAY7020 is ideal for small workshops, DIY projects, model making, metalworking, and woodworking for intricate designs.
Yes, the ZAY7020 is suitable for educational purposes, especially in engineering classes where hands-on machining experience is beneficial.
