Automatic OEM CNC Parts Vertical Centering Machining Machine
- Section : Electrical & Tools
- Category : Machining
- SKU : 1601043595503

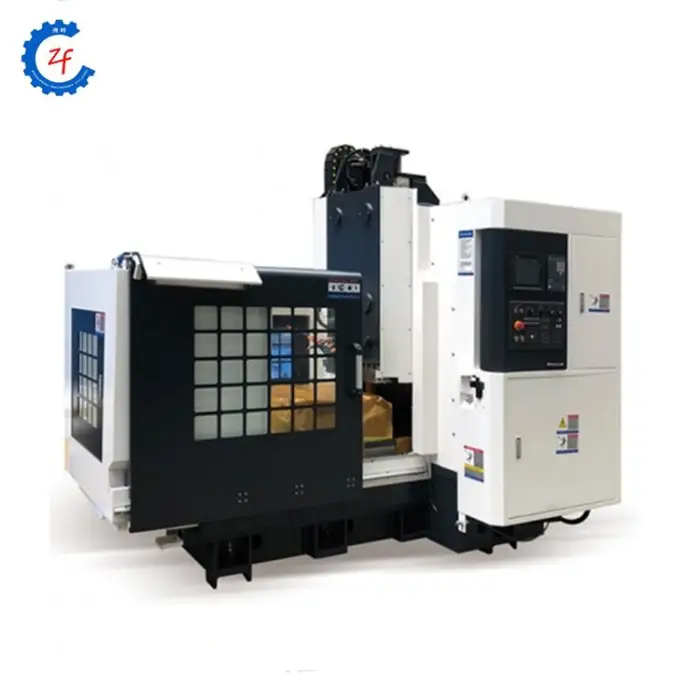

Automatic OEM CNC Parts Vertical Centering Machining Machine
The Automatic OEM CNC Parts Vertical Centering Machining Machine is a powerful and versatile tool designed for precision machining. With its advanced CNC control system, this machine can handle various tasks efficiently. It's perfect for businesses that need high-quality machining with minimal downtime.
Specifications
| Attribute | Details |
|---|---|
| Machining Capacity | Heavy Duty |
| Max. Table Load (kg) | 400 |
| Min. Time of Tool Change (s) | 0.5 |
| No. of Spindles | 4 |
| Positioning Accuracy (mm) | 0.005 |
| Range of Spindle Speed (r.p.m) | 1000 - 3000 |
| Rapid Feed Speed (mm/min) | 1 - 2 |
| Repeatability (x/y/z) (mm) | 0.003 |
| Spindle Taper | BT30 |
| Table Size | 700 x 600 |
| Table Travel (x) (mm) | 700 |
| Table Travel (y) (mm) | 600 |
| Table Travel (z) (mm) | 300 |
| Tool Magazine Capacity | 16, 12, 24 |
| Voltage | 380 V |
| Warranty | 1 Year |
| Weight (t) | 3.8 |
Key Features
- Advanced CNC control for high precision.
- Heavy-duty design for tough machining tasks.
- Fast tool change time of just 0.5 seconds.
- Multiple spindle options for versatility.
- Accurate positioning with 0.005 mm precision.
Applications
- Manufacturing custom CNC parts.
- Prototyping and development of new products.
- High-volume production runs.
- Aerospace and automotive component machining.
- Precision engineering tasks.
Product Paramenters
| information | Units | YS-760A | YS-760B | YS-770 | YS-870A | YS-870B | YS-8012 |
| X/Y/Z axis | mm | 700/600/300 | 700/600/300 | 700/700/350 | 800/700/300 | 800/700/300 | 800/1200/300 |
| Spindle to worktable | mm | 90-330 | 225-525 | 175-525 | 130-430 | 205-505 | 195-495 |
| Three axis guideway | Linear Guideway | ||||||
| Door width | 760 | 760 | 740 | 810 | 810 | 810 | |
| worktable size | 700*600 | 700*600 | 700*700 | 720*640 | 720*640 | 1200*800 | |
| Max table load | 400 | 400 | 400 | 400 | 400 | 1000 | |
| T-slot | 5-16*125 | 5-16*125 | 5-16*120 | 5-16*120 | 5-16*120 | 7-18*100 | |
| Spindle taper | type | BT-30 | ER32 | ER32 | BT-30 | ER32 | BT-40 |
| Spindle speed | rpm | 24000 | 24000 | 24000 | 24000 | 24000 | 15000 |
| Spindle drive type | Built-in | Dds | |||||
| Rapid traverse | m/min | 15/15/12 | 15/15/12 | 15/15/12 | 15/15/12 | 15/15/12 | 15/15/12 |
| Cutting feedrate | m/min | 12 | 12 | 12 | 12 | 12 | 12 |
| Tool changer | Carousel Servo ATC | ARM ATC | |||||
| Spindle motor | kw | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 5.5 |
| Three axis servo motor | kw | 0.85/0.85/1.3 | 0.85/0.85/1.3 | 0.85/0.85/1.3 | 0.85/0.85/1.3 | 0.85/0.85/1.3 | 1.3/3/1.3 |
| Accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| repeatability | mm | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Power requirement | kva | 10 | 10 | 10 | 10 | 10 | 12 |
| Extemal dmensions | mm | 2.1*2.5*2.55 | 2.1*2.5*2.55 | 2.1*2.7*2.6 | 2.1*2.7*2.55 | 2.1*2.7*2.55 | 3*2.5*2.6 |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum load capacity of the Automatic OEM CNC Parts Vertical Centering Machining Machine?
The maximum table load capacity is 400 kg.
2. What is the minimum time for tool change on this machine?
The minimum time for tool change is just 0.5 seconds.
3. How precise is the positioning accuracy of this machine?
The positioning accuracy is 0.005 mm.
4. What is the range of spindle speed for this CNC machine?
The spindle speed ranges from 1000 to 3000 revolutions per minute (r.p.m).
5. What type of spindle taper does this machine use?
This machine uses a BT30 spindle taper.
6. What is the weight of the Automatic OEM CNC Parts Vertical Centering Machining Machine?
The machine weighs 3.8 tons.
7. What is the warranty period for this machine?
The machine comes with a 1-year warranty.
8. What applications is this CNC machine suitable for?
This machine is suitable for manufacturing custom CNC parts, prototyping, high-volume production runs, and precision engineering tasks in the aerospace and automotive industries.
9. How many spindles does this machine have?
The machine is equipped with 4 spindles.
10. What is the tool magazine capacity of this machine?
The tool magazine can hold 16, 12, or 24 tools, depending on the configuration.
11. What are the table dimensions of the machine?
The table size is 700 x 600 mm.
12. What is the rapid feed speed of the machine?
The rapid feed speed ranges from 1 to 2 mm/min.
13. What type of control system does this CNC machine use?
The machine features an advanced CNC control system for high precision machining.
14. Can this machine handle heavy-duty machining tasks?
Yes, the machine is designed with a heavy-duty structure to handle tough machining tasks efficiently.
15. What is the repeatability of the machine in the x, y, and z axes?
The repeatability in the x, y, and z axes is 0.003 mm.
