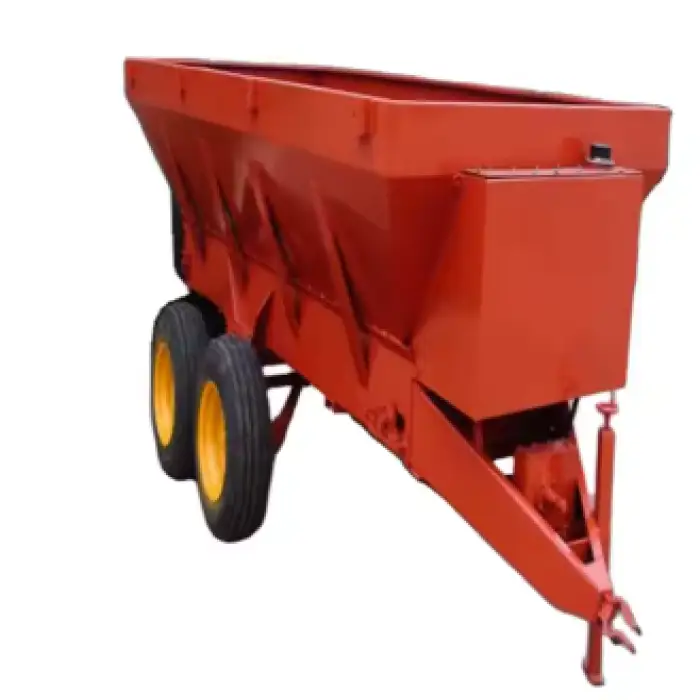

The manure spreader has different models with capacities ranging from 1.73 m³/2500 kg to 7.5 m³/12000 kg, depending on the model selected.
The dimensions of the fertilizer tank vary by model: SF-2500 is 2350*1500*782 mm, SF-5500 is 2820*1760*810 mm, SF-7500 is 3260*1760*910 mm, and SF-12000 is 4000*2000*1253 mm.
The matched power requirements for the different models range from 40 hp for the SF-2500 to 80-100 hp for the SF-12000.
The spreading width varies by model, ranging from 15 m for the SF-2500 to 18 m for the SF-12000.
The PTO rotation speeds vary: 350 r/min for SF-2500, 400 r/min for SF-5500, and 1000 r/min for both SF-7500 and SF-12000.
The total weight of the manure spreaders varies by model. For example, the SF-2500 weighs 970 kg, and the SF-12000 weighs 2300 kg.
The manure spreader is designed as a trailed unit.
The manure spreader uses a 6 spline PTO shaft.
Yes, the manure spreader is designed to efficiently handle various types of farmyard manure.
The dimensions of the machine vary by model: SF-2500 is 3650*1800*1650 mm, SF-5500 is 4280*1960*1650 mm, SF-7500 is 4567*1960*1750 mm, and SF-12000 is 5605*2000*2176 mm.
The recommended tractor horsepower for the SF-5500 model is between 70 to 80 hp.
The SF-2500 model is particularly suitable for smaller farms due to its lower capacity and power requirements.
Regular maintenance includes checking the PTO shaft, lubricating moving parts, and ensuring the spreader is clean after use.
The manure spreader is designed with safety features such as sturdy construction, appropriate safety shields, and easy access for maintenance.
Replacement parts for the manure spreader can typically be purchased from the manufacturer or authorized dealers. Please check with them for availability.
