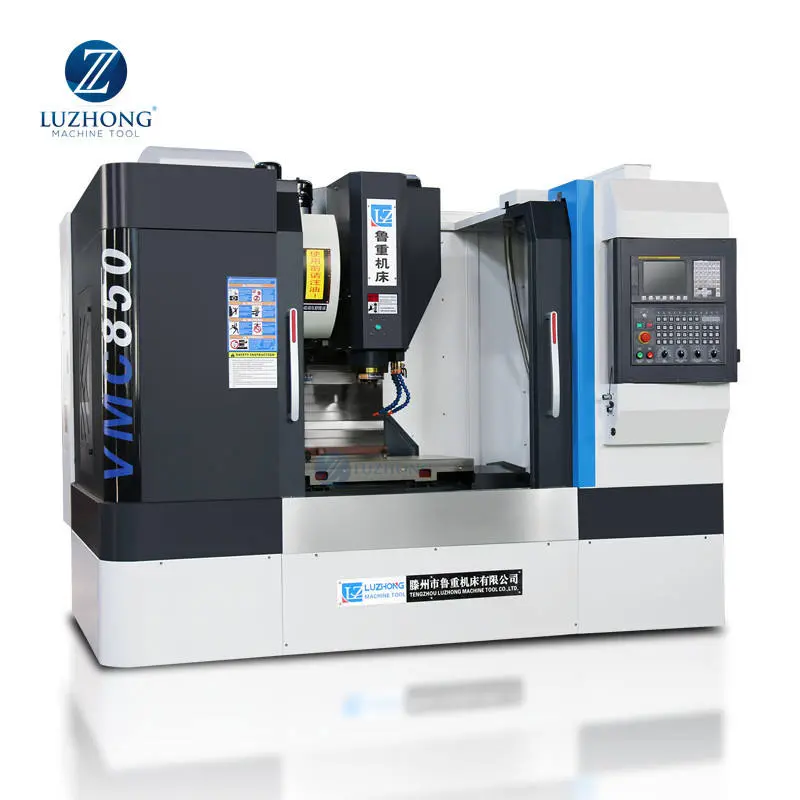

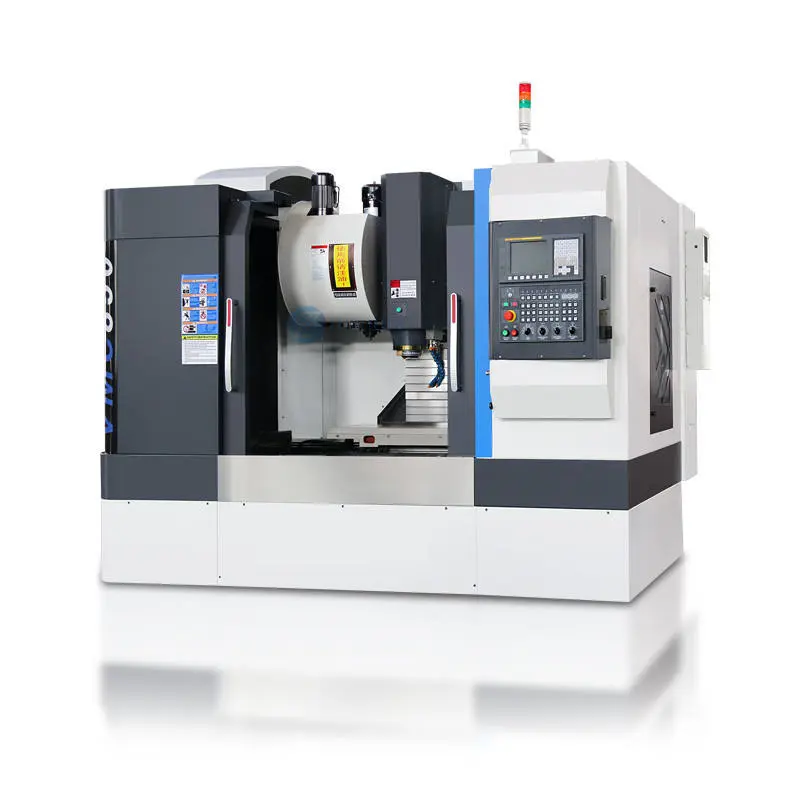

4 Axis CNC Milling Machine (VMC850)

0 Customer Reviews

Add To Wishlist Add To Compare Share to Social

Section : Machinery
Category : Machine Tool Equipment
SKU : 60494595416

Premium B2B Benefits

🎯 Exclusive Enterprise-Level Support

Vetted Suppliers with Verified Quality ISO-certified partners ensuring premium standards
Comprehensive Operator Training Full commissioning & hands-on instruction included

Discuss delivery, installation & ongoing support — no obligation

Product Description

Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Taiwan linear railway
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Specifications	Units	VMC850
Table size	mm	1000x500
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Max. worktable load	kg	500
T slot(number-width-pitch)		5-18x100
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	7.5/11
X/Y/Z rapid traverse speed	m/min	24/24/20 (Optional:48/48/36 )
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	525
Distance between spindle nose and worktable surface	mm	130-630
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	5600
Overall dimension	mm	2600X2300X2800

Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 May, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.

1. What are the main features of the VMC850 4 Axis CNC Milling Machine?

The VMC850 features high-quality resin sand construction, a Taiwan spindle, Taiwan ball screw and locking nut, a Taiwan pressure cylinder, Taiwan linear railway, Japanese NSK bearings, a Germany R+W coupling, an automatic lubrication system, and an optional chip conveyor.

2. What applications is the VMC850 suitable for?

The VMC850 is suitable for mechanical processing and mold making. It can handle various tasks including rough machining and finish machining, as well as milling, drilling, tapping, and boring.
