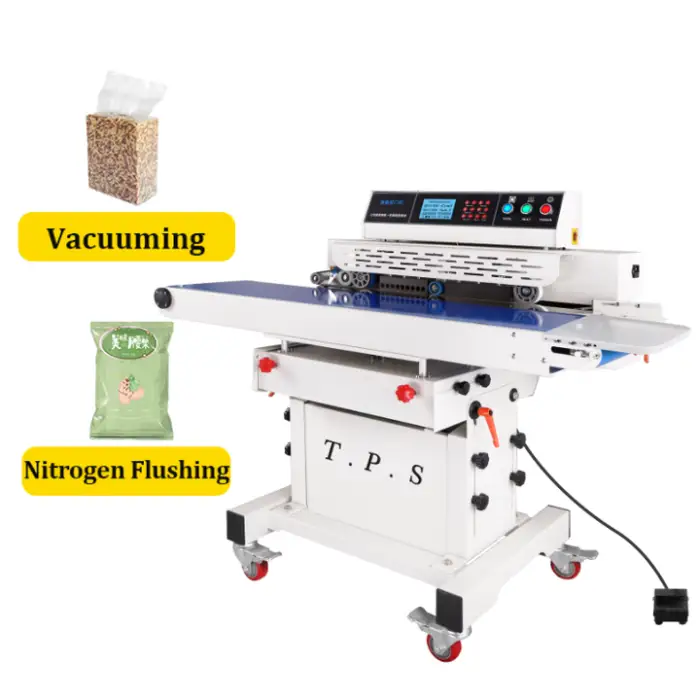

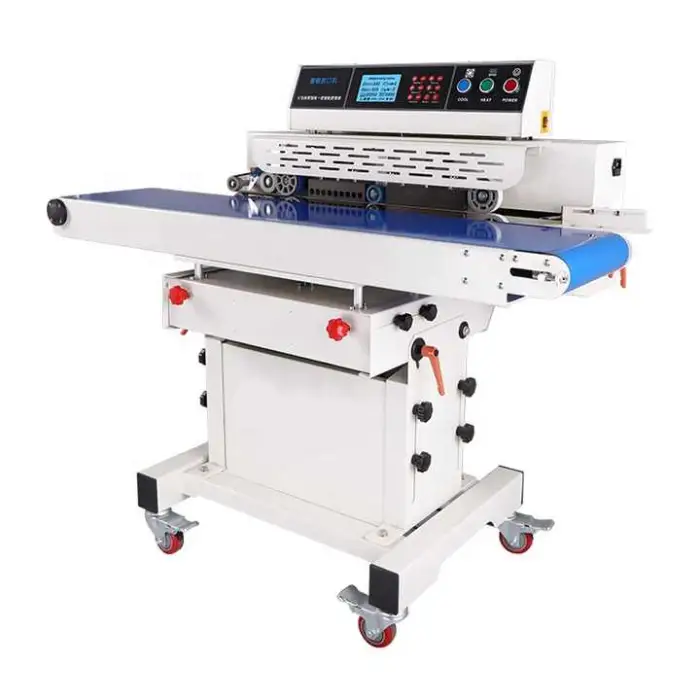

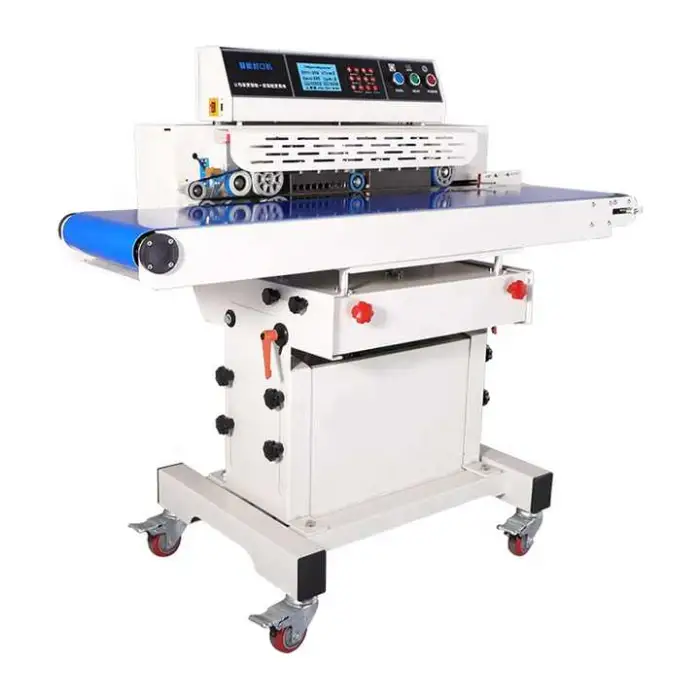

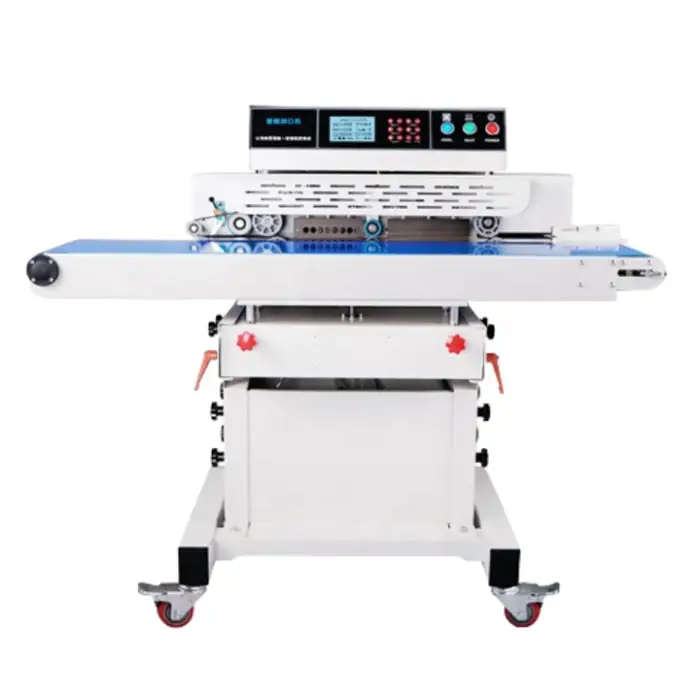

280Q Horizontal Sealing Machine Auto Control Vacuum Sealer Nitrogen Gas Flushing Continuous Band Sealer with Printing
- Section : Machinery
- Category : Packaging Machines
- SKU : 1601023803568
280Q Horizontal Sealing Machine Auto Control Vacuum Sealer Nitrogen Gas Flushing Continuous Band Sealer with Printing
Introducing the 280Q Horizontal Sealing Machine, a powerful and efficient solution for all your packaging needs. This semi-automatic vacuum sealer is designed to enhance productivity while ensuring the freshness of your products. With advanced features such as nitrogen gas flushing and intelligent control, this machine is perfect for various applications in food, beverage, and more.
Specifications
| Attribute | Details |
|---|---|
| Driven Type | Electric |
| Packaging Type | Stand-up Pouch, Bags, Film, Foil, Pouch |
| Voltage | 220V/50-60HZ |
| Sealing Type | Heat Sealing |
| Automatic Grade | Semi-automatic |
| Weight | 10 KG |
| Dimension (L*W*H) | 1500*620*1060 mm |
| Temperature Range | 0-280℃ (Adjustable) |
| Conveyor Load | 10 kg |
| Maximum Size of Packaging Bag | 400*300*0.15 mm |
| Pumping Vacuum | -0.05-0.088 Mpa |
| Air Consumption | 280 L/min |

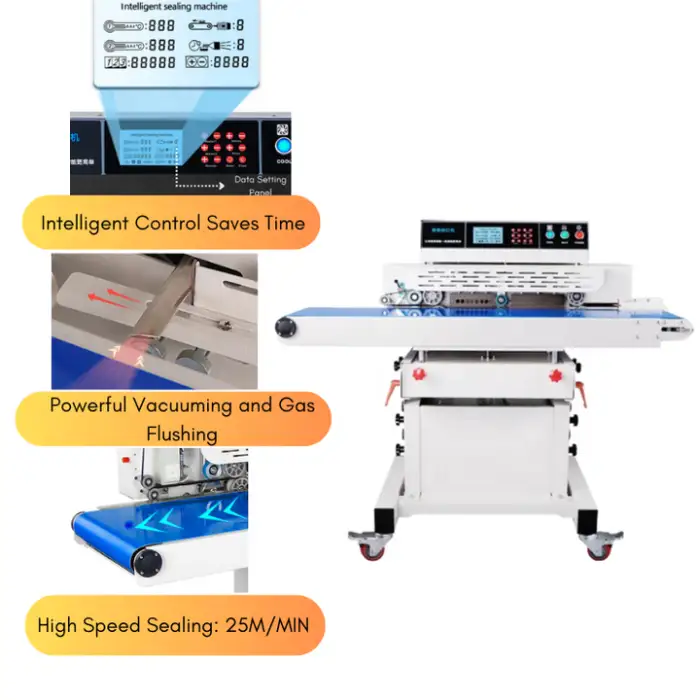

Key Features
- Gas filling for extended product freshness.
- Vacuum sealing to keep items secure.
- Integrated printing for easy labeling.
- Adjustable temperature settings for various materials.

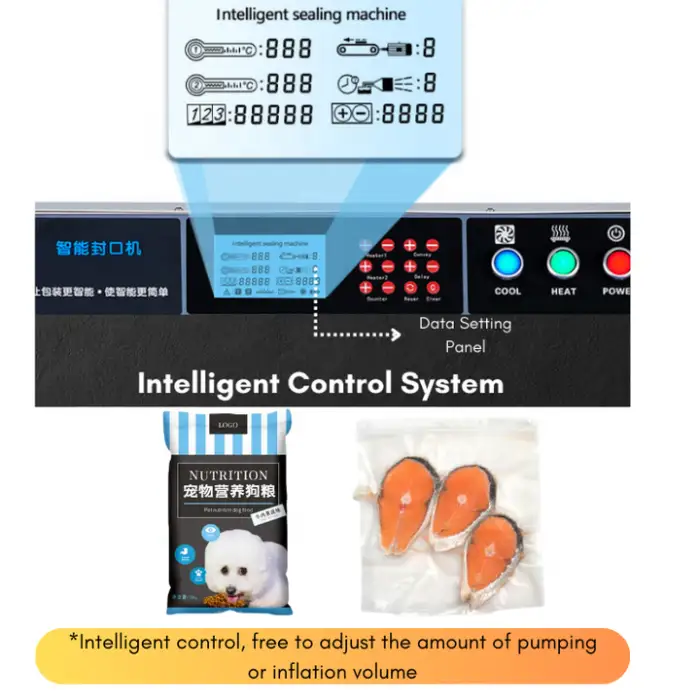

- Intelligent control system for user-friendly operation.
Applications
- Food packaging for meats, cheeses, and snacks.
- Beverage packaging for juices and sauces.
- Commodity packaging for household goods.
- Chemical packaging for safe storage.
- Textile packaging for apparel and fabric products.
The 280Q Horizontal Sealing Machine is the perfect addition to any packaging line. With its robust design and advanced features, it ensures your products are sealed and preserved with the highest quality. Experience the difference with this all-in-one packaging solution!
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the 280Q Horizontal Sealing Machine used for?
The 280Q is a semi-automatic horizontal vacuum sealing and continuous band sealer with nitrogen gas flushing and integrated printing. It is used to vacuum-seal and gas-flush stand-up pouches, bags, film and foil to extend shelf life and apply batch/date codes for food, beverage, chemical, textile and consumer goods packaging.
2. What power and electrical requirements does the machine need?
The machine operates on 220V, 50–60 Hz AC power. Confirm site electrical capacity and proper grounding prior to installation.
3. What are the maximum bag dimensions and material limits?
Maximum bag size is 400 x 300 mm with material thickness up to approximately 0.15 mm. Compatible packaging types include stand-up pouches, bags, film and foil. Always test your specific film and pouch combinations for optimal seal quality.
4. What vacuum level and air consumption does the unit provide?
Pumping vacuum range is approximately -0.05 to -0.088 MPa. Air consumption is about 280 L/min. Actual values depend on settings, bag volume and production conditions.
5. How does the nitrogen gas flushing feature work and what do I need to use it?
Nitrogen flushing replaces oxygen in the package headspace before sealing to extend shelf life. To use it you need an external nitrogen gas source, pressure regulator and appropriate hoses/fittings. Flow and timing are adjustable via the control panel — consult the manual for recommended settings by product.
6. Can this machine print batch numbers, dates or lot codes?
Yes. The 280Q includes integrated printing for labeling seals with dates, batch numbers or other simple codes. Capabilities (print size, font and variable data) depend on the installed printer module—contact the supplier for details or optional printer upgrades.
7. What temperature range is available for heat sealing?
The sealing temperature is adjustable from 0 to 280°C to accommodate a range of packaging materials. Always select the lowest temperature that produces a consistent, strong seal to avoid film damage.
8. Is the machine fully automatic or semi-automatic?
The 280Q is semi-automatic. It provides intelligent controls and continuous conveyor/band sealing, but loading/unloading and some adjustments are operator-assisted.
9. What is the conveyor load capacity and machine dimensions/weight?
The conveyor load capacity is 10 kg. Machine dimensions are 1500 x 620 x 1060 mm (L x W x H) and the listed weight is approximately 10 kg.
10. What routine maintenance is required?
Regular maintenance includes cleaning sealing jaws and conveyor belts, inspecting and replacing worn heating elements, sealing belts and Teflon strips, checking vacuum pump oil/condition (if applicable), verifying nitrogen fittings for leaks, and keeping the printer module clean. Follow the manufacturer maintenance schedule for service intervals.
11. What common troubleshooting steps should I try if seals are weak or incomplete?
Check and adjust sealing temperature, speed and pressure settings; inspect/replace worn heating elements, Teflon strips and sealing belts; ensure bag material is compatible and free of contaminants at the seal area; verify vacuum level and nitrogen flushing timing; and confirm the conveyor speed is correct.
12. Are safety features included?
The machine includes standard safety features such as emergency stop and guarded moving parts. Recommended safe practices include proper operator training, securing gas connections, ensuring electrical grounding and following the safety instructions in the user manual. Ask the supplier for details on optional safety upgrades and certifications.
13. Can the 280Q handle liquids or wet products?
Yes, the vacuum and gas flushing features make it suitable for many wet or moist products (sauces, marinated items), but liquid-management precautions are required to avoid pump or electronics contamination. Use appropriate bag loading techniques and discuss liquid packaging requirements with the supplier.
14. How do I get spare parts, service and warranty information?
Warranty length, service plans and spare part availability vary by supplier. Contact the manufacturer or your authorized dealer for warranty terms, replacement parts (heating strips, belts, sensors, printer consumables) and recommended service contracts.
15. Do I need training to operate the machine and is installation required?
Basic operator training is recommended and often provided by the dealer. Installation requires connecting 220V power, grounding and a nitrogen gas source (if using gas flushing). A technician may be needed for initial setup, parameter calibration and staff training—confirm what installation services are offered by your supplier.
