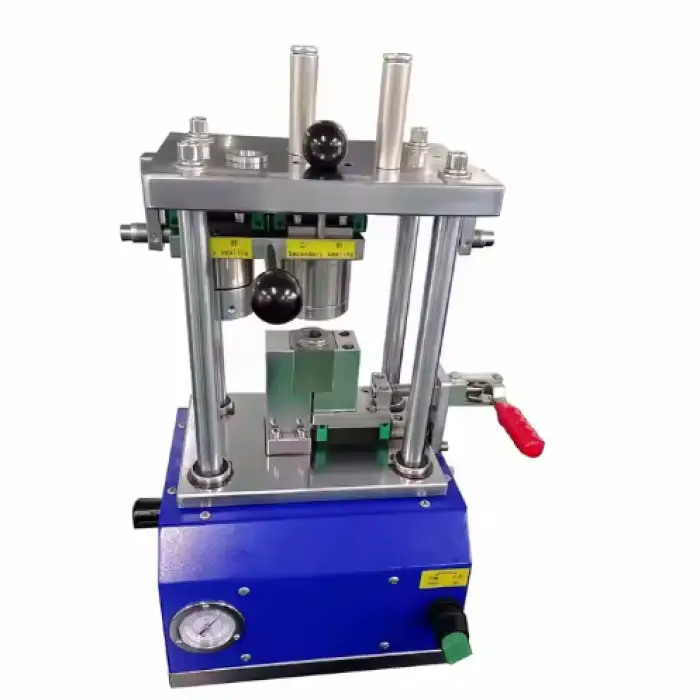

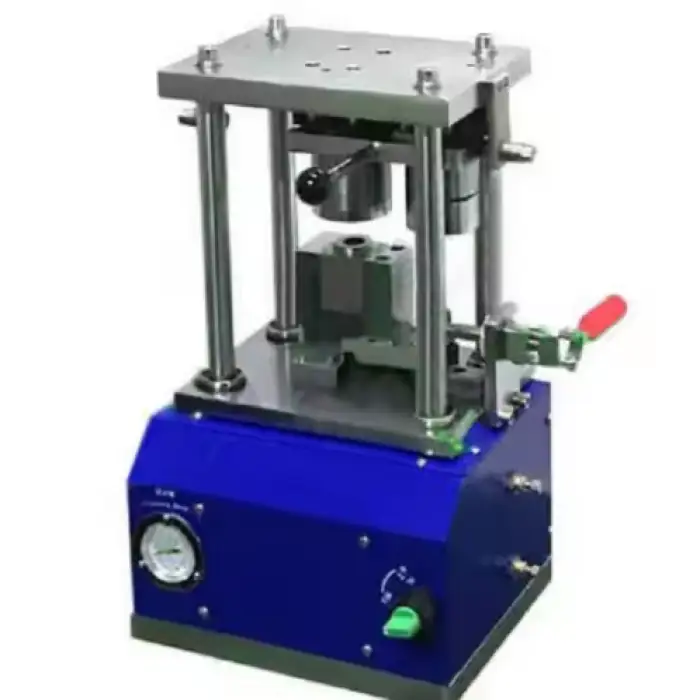

The machine is a semi-automatic hydraulic/pneumatic sealer designed to crimp and seal cylindrical lithium battery cases (e.g., 18650) during battery manufacturing and assembly.
It is designed for 18650 cylindrical cells and other similar cylindrical battery formats. For different diameters or custom dimensions, additional tooling or a modification may be required—consult the supplier.
Drive type: pneumatic. Sealing type: hydraulic sealing (pneumatically driven hydraulic crimp).
Electrical: 220V, 50Hz. Compressed air supply: 0.6–1.0 MPa (6–10 bar). Install a regulated, dry air supply and appropriate fittings.

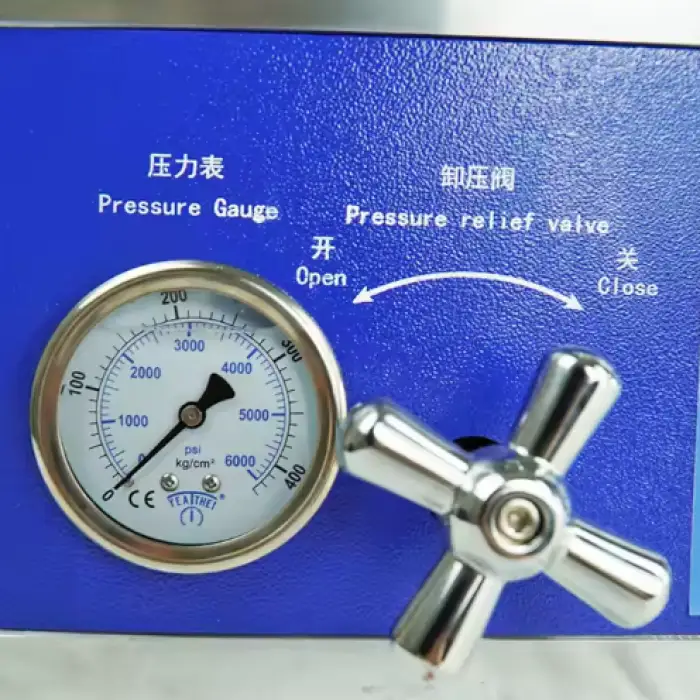

Sealing pressure is adjustable in the range of approximately 10–150 kg/cm² to accommodate different crimping requirements.
Machine dimensions: 385 × 160 × 325 mm. Net weight: 50 kg. Single package size: 55 × 55 × 55 cm. Single gross (packaged) weight: 100 kg.
Yes. It is semi-automatic and designed for simple operation. The supplier provides video technical support and online assistance to help new users get started.
Cycle time depends on operator skill and settings. Typical semi-automatic operation ranges roughly 4–12 seconds per seal (approximately 5–15 seals per minute). Actual throughput will vary.
Use proper PPE (gloves, eye protection), ensure correct cell orientation, avoid shorting terminals, work in a well-ventilated area, and follow battery handling best practices. Isolate electrical and air supplies before maintenance. Always follow local regulations for lithium battery handling.
Regularly check and maintain air lines, filters, pneumatic fittings, hydraulic oil level and condition, gearbox lubrication, and sealing tooling. Clean the machine after use and replace wear parts (seals, O-rings) as needed. Follow the supplier's maintenance schedule.
Yes. Typical spare parts include sealing dies/tooling, O-rings, hydraulic seals, valves and pneumatic fittings. Contact the supplier for part lists and lead times.
The product listing includes video technical support and online assistance. On-site installation or in-depth training may be available—please contact the supplier to arrange training services.
Custom tooling, different crimp profiles, and other adaptations are often possible. Contact the manufacturer/supplier with your specific application and dimensional requirements for customization options.
Recommended tests include visual inspection, dimensional check of the crimp, mechanical pull/shear testing of the crimp joint, and electrical continuity/resistance checks. Establish acceptance criteria based on your product specifications.
Warranty terms and safety/certification documentation (e.g., CE, RoHS) vary by supplier and region. Request warranty details and copies of any certifications from the vendor before purchase.
