1+4 Tile Making Machinery for Ceramic Floor Tile Making Machinery Automatic Stone Machine
- Section : Machinery
- Category : Tile Making Machinery
- SKU : 1601018385351

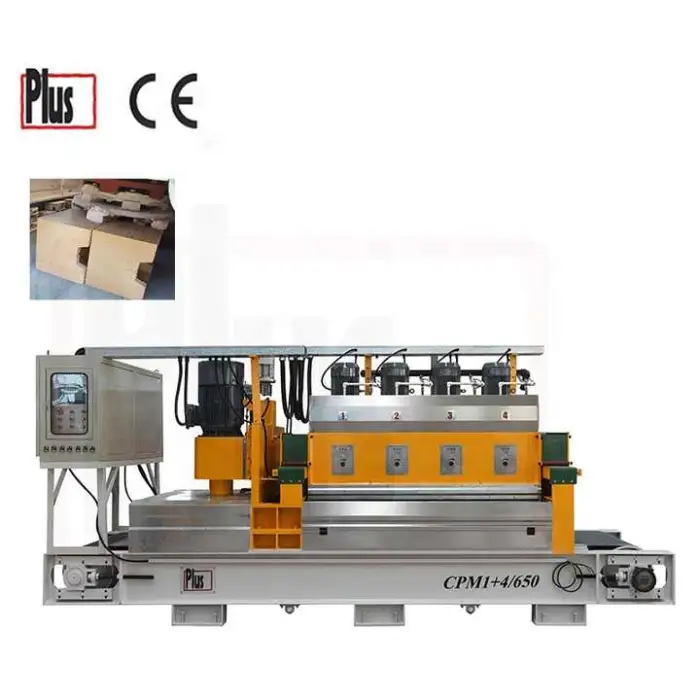

1+4 Tile Making Machinery for Ceramic Floor Tile Making Machinery Automatic Stone Machine
The 1+4 Tile Making Machinery is an advanced solution for creating high-quality ceramic floor tiles. This automatic stone machine is designed to boost productivity with its powerful features. It can handle various stone and concrete materials, making it a versatile addition to your manufacturing process.
Specifications
| Attribute | Details |
|---|---|
| Type | Stone Polishing Machine |
| Voltage | 380V |
| Power | 1.5kW |
| Cutting Thickness (max) | 100MM |
| Production Capacity | 1000m² |
| Weight | 5800kg |
| Core Components | Pressure vessel, motor, bearing, gear, pump, gearbox, engine, PLC |
| Dimensions (L*W*H) | 3700mm x 2200mm x 1800mm |
| Model | Terrazzo tile calibrating and polishing machine |
| No. of Heads | 1+3/1+4 (more heads on request) |
| Max. Useful Working Width | 650mm (width on request) |
| Calibrating Plate Diameter | 680mm |
| Displayed Belt Forwarding Speed | 1.0-5.0m/min |
| Overall Dimensions | 4500mm x 2000mm x 2200mm |
Key Features
- High productivity with a production capacity of 1000m².
- Automatic operation for easy use and efficiency.
- Can process various stone and concrete materials.
- Robust design with a weight of 5800kg for stability.
- Multiple head options available for diverse applications.
Applications
- Manufacturing ceramic floor tiles.
- Polishing and calibrating terrazzo tiles.
- Processing various stone materials for construction.
- Creating custom tile designs for commercial projects.
- Utilized in large-scale flooring projects.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the production capacity of the 1+4 Tile Making Machinery?
The 1+4 Tile Making Machinery has a production capacity of 1000m².
2. What types of materials can this machine process?
This machine can handle various stone and concrete materials, making it versatile for different applications.
3. What is the maximum cutting thickness of the machine?
The maximum cutting thickness that the 1+4 Tile Making Machinery can achieve is 100MM.
4. What is the weight of the 1+4 Tile Making Machinery?
The machine weighs 5800kg, providing stability during operations.
5. What are the dimensions of the machine?
The overall dimensions of the 1+4 Tile Making Machinery are 4500mm x 2000mm x 2200mm.
6. Is this machine automatic?
Yes, the 1+4 Tile Making Machinery features automatic operation for easy use and efficient production.
7. What are the key components of this machinery?
Key components include a pressure vessel, motor, bearing, gear, pump, gearbox, engine, and PLC.
8. Can I customize the number of heads on the machine?
Yes, the machine comes with options for 1+3 or 1+4 heads, and more heads can be requested for diverse applications.
9. What is the voltage requirement for this machine?
The 1+4 Tile Making Machinery operates on a voltage of 380V.
10. What is the power requirement for the machine?
The machine requires a power supply of 1.5kW.
11. What applications is this machinery suitable for?
It is suitable for manufacturing ceramic floor tiles, polishing and calibrating terrazzo tiles, processing various stone materials, creating custom tile designs, and utilized in large-scale flooring projects.
12. What is the maximum useful working width of the machine?
The maximum useful working width is 650mm, although width can be customized upon request.
13. What is the displayed belt forwarding speed of the machine?
The displayed belt forwarding speed ranges from 1.0 to 5.0m/min.
14. What model is this machine?
This machine is identified as the Terrazzo tile calibrating and polishing machine.
15. How does this machine contribute to productivity?
With its high production capacity and automatic features, the 1+4 Tile Making Machinery significantly boosts productivity in tile manufacturing.
