Single Cup Smart Oil BDV Breakdown Voltage Tester PS-1001
- Section : Consumer Electronics
- Category : Test Instruments
- SKU : 1601042163767

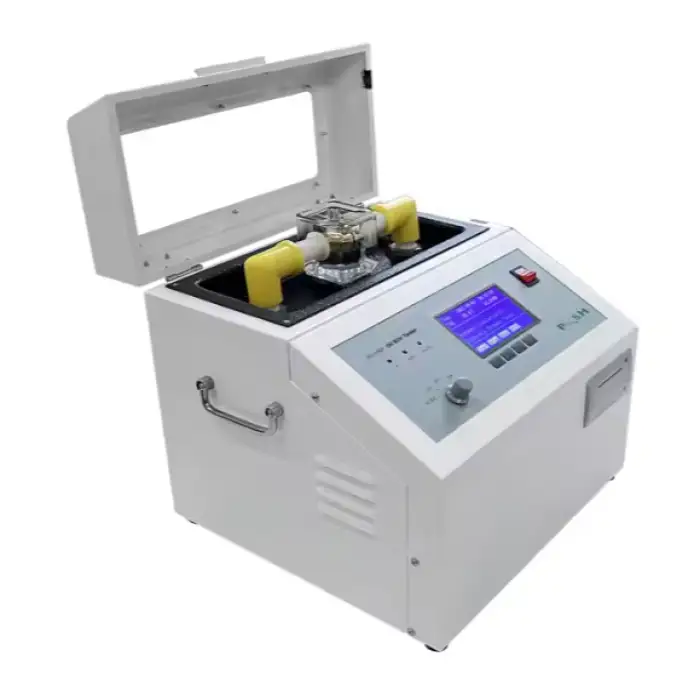

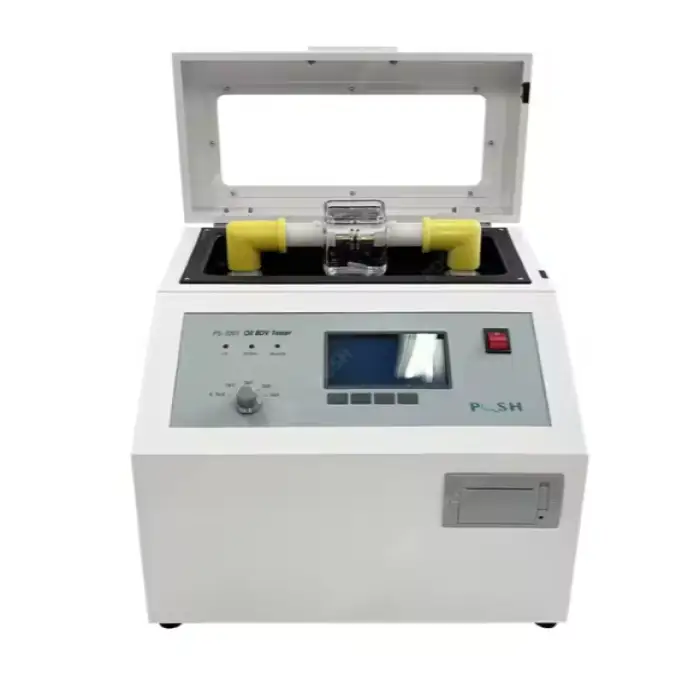

Single Cup Smart Oil BDV Breakdown Voltage Tester PS-1001
The PS-1001 Oil BDV Breakdown Voltage Tester is a high-precision device for assessing the dielectric strength of transformer oil. With its advanced features and compliance with international standards, this tester is ideal for laboratories, power plants, and industrial applications.
Key Features
Comprehensive Test Standards:

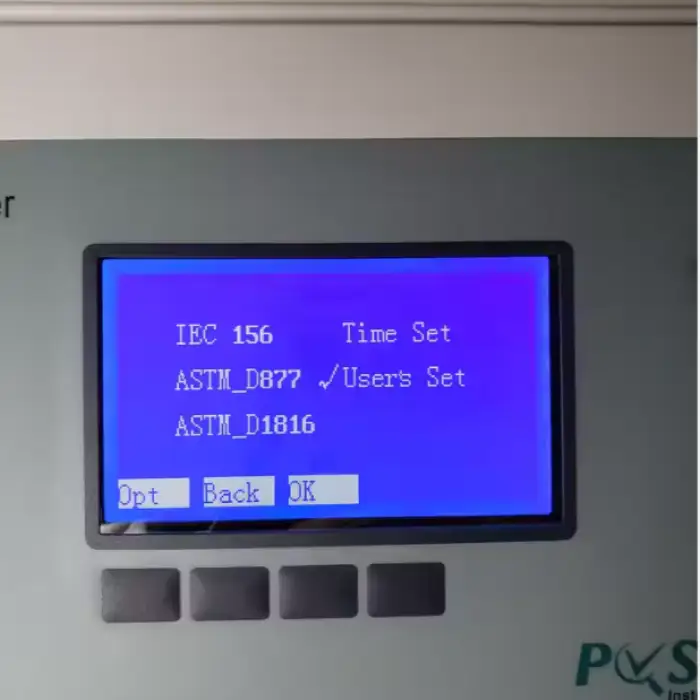

Meets ASTM D1816, ASTM D877, and IEC60156 standards for reliable and accurate testing.
Wide Voltage Range:
Offers a maximum test voltage of 0–80kV, with an optional extension to 100kV, accommodating various testing requirements.
Adjustable Boosting Speed:
Features customizable boosting speeds of 0.5–5.0 kV/s, including presets for 0.5 kV/s, 1kV/s, 2.0kV/s, 3.0kV/s, and 5.0kV/s.
Versatile Electrode Options:

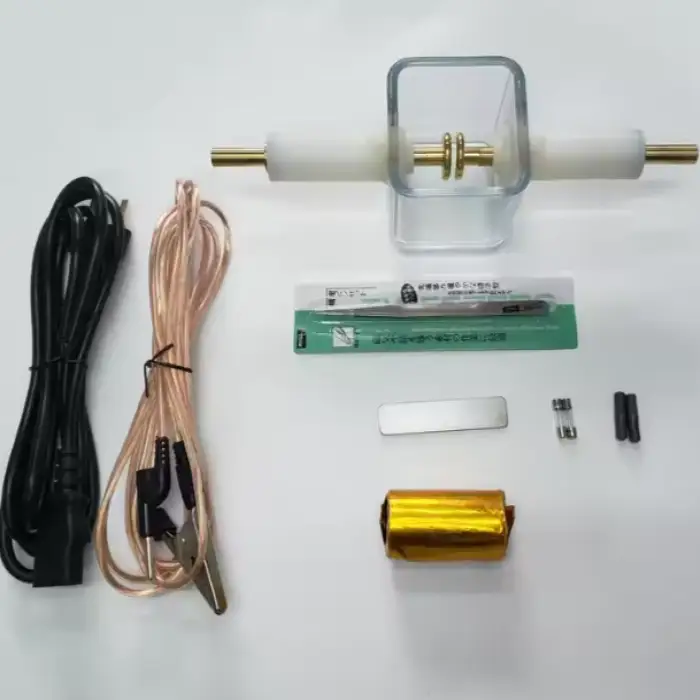

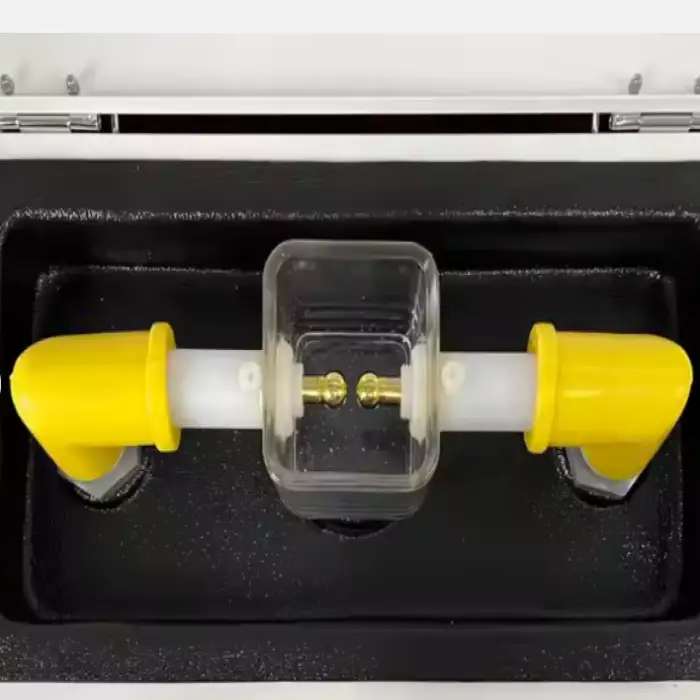

Compatible with multiple electrode types, including mushroom, disk, and spherical, for flexible testing configurations.
Efficient Power Supply:
Operates with AC220V±10% at 50Hz/60Hz, with customization options available for special power requirements.
Durable and Portable Design:
Weighs 29kg, making it sturdy yet manageable for transportation and setup.
Optimized Working Environment:
Functions reliably in temperatures from 0°C to 45°C and humidity below 85% RH.
Certified Accuracy:
Backed by ISO9001, CE, and Calibration Certificates for assured performance and quality.
| Name | Indicators |
| Output voltage: | 0~80 kV(0-100KV can be set) |
| THDu | <2% |
| pressure rate | 2.0~3.5 kV/s(Δ = 0.5 kV/s) |
| Booster capacity | 1.5 kVA |
| measurement accuracy | 1% |
| supply voltage | AC 220 V ±10% |
| Power frequency | 50 Hz ±2% |
| Power | 200 w |
| Applicable temperature | 0~45℃ |
| Applicable humidity | <85 % RH |
| Width x high x depth | 409×393×388(mm) |
| Net weight | ~ 29 kg |
The PS-1001 Oil BDV Breakdown Voltage Tester delivers precision and reliability for transformer oil testing, ensuring compliance with safety and operational standards in critical electrical systems.
Product Info Gallery
product parameters
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 26 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the primary function of the Single Cup Smart Oil BDV Breakdown Voltage Tester PS-1001?
The PS-1001 is designed to assess the dielectric strength of transformer oil, ensuring compliance with safety and operational standards.
2. What testing standards does the PS-1001 meet?
The PS-1001 complies with ASTM D1816, ASTM D877, and IEC60156 standards for reliable and accurate testing.
3. What is the maximum test voltage the PS-1001 can handle?
The tester offers a maximum test voltage of 0–80kV, with an optional extension to 100kV.
4. Can the boosting speed be adjusted on the PS-1001?
Yes, the PS-1001 features customizable boosting speeds ranging from 0.5 to 5.0 kV/s, with several preset options.
5. What types of electrodes can be used with the PS-1001?
The PS-1001 is compatible with various electrode types, including mushroom, disk, and spherical electrodes.
6. What power supply does the PS-1001 require?
The device operates on an AC220V±10% power supply at 50Hz/60Hz, with options available for customization.
7. How portable is the PS-1001?
Weighing approximately 29kg, the PS-1001 is designed to be sturdy yet manageable for easy transportation and setup.
8. What environmental conditions can the PS-1001 operate in?
The tester functions reliably in temperatures ranging from 0°C to 45°C and humidity levels below 85% RH.
9. Is the PS-1001 certified for accuracy?
Yes, the PS-1001 is backed by ISO9001, CE, and Calibration Certificates, ensuring its performance and quality.
10. What is the measurement accuracy of the PS-1001?
The PS-1001 features a measurement accuracy of ±1%.
11. What is the pressure rate range for the PS-1001?
The pressure rate for the PS-1001 ranges from 2.0 to 3.5 kV/s, with a change increment of 0.5 kV/s.
12. What are the dimensions of the PS-1001?
The dimensions of the PS-1001 are 409mm (width) x 393mm (height) x 388mm (depth).
13. What is the power consumption of the PS-1001?
The power consumption of the PS-1001 is 200 watts.
14. Who can benefit from using the PS-1001?
The PS-1001 is ideal for laboratories, power plants, and industrial applications requiring precise testing of transformer oil.
15. Can the PS-1001 be used for testing other types of oil?
While primarily designed for transformer oil, it may be adaptable for other oils depending on their dielectric properties.
