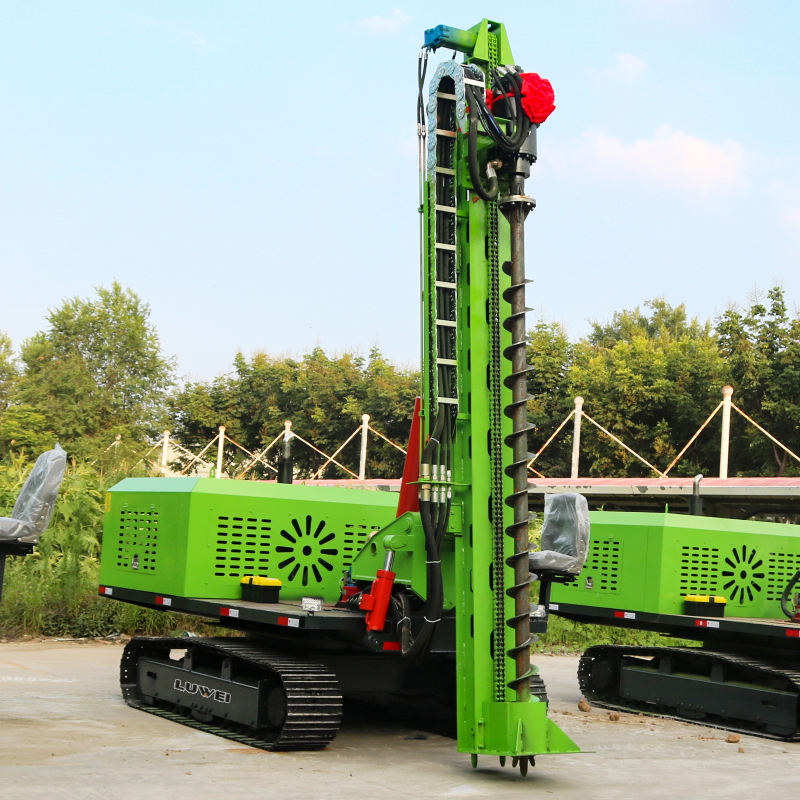

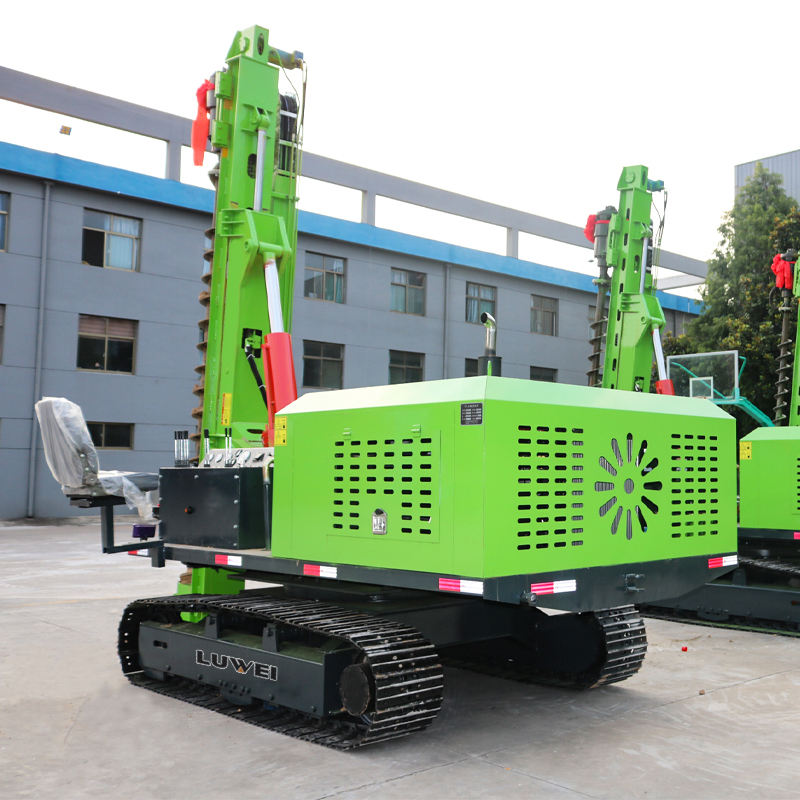

The maximum drilling depth of the hydraulic solar PV piles drill machine is 70 meters.
The machine weighs 5000 kg.
Yes, the drilling diameter can be customized and ranges from 90 mm to 400 mm.
The machine is equipped with a Yuchai 4105ZY engine rated at 85 kW.

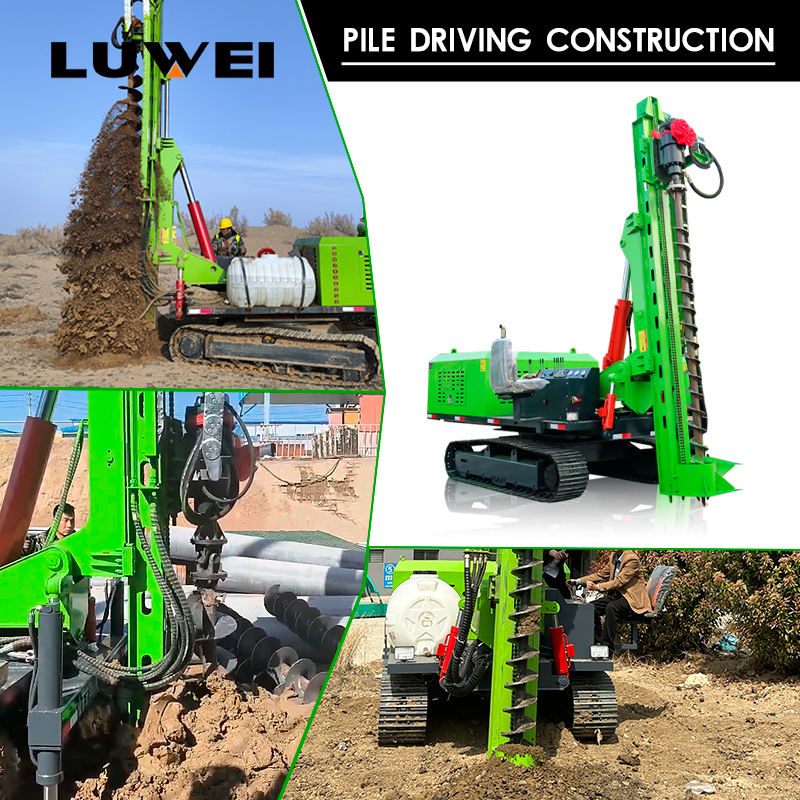

This machine is suitable for foundation pile driving for solar photovoltaic systems, construction of buildings and structures, installation of poles, and support for heavy machinery.
The hydraulic solar PV piles drill machine comes with a 1-year warranty.
The machine operates efficiently with an output of 85 kW.
The piling speed ranges from 550 to 1050 n/minute.
Yes, the machine is customizable to meet various construction requirements.
The core components include the engine, pressure vessel, and bearing.
The dimensions of the machine are 3.5 meters in length, 2.2 meters in width, and 3.4 meters in height.
Yes, the machine is designed to work effectively in various terrains and soil conditions.

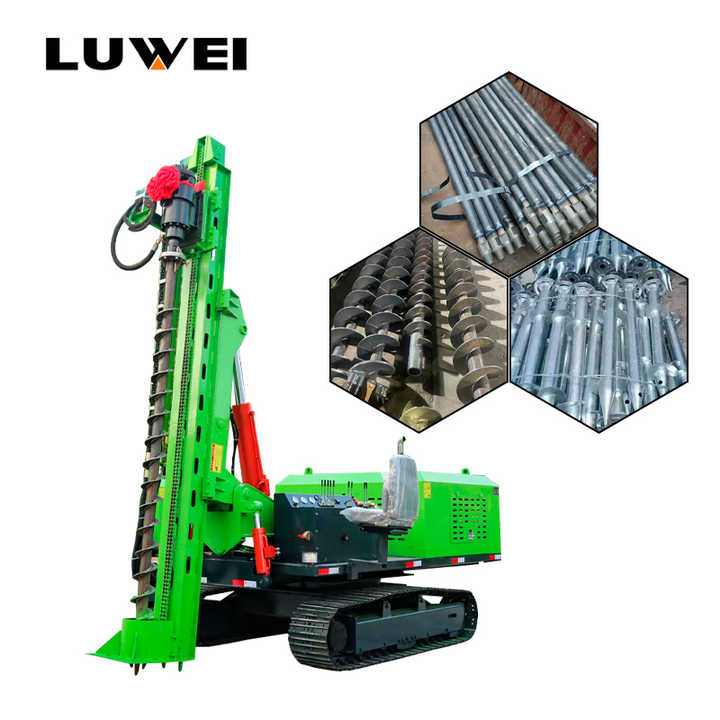

The machine comes with various accessories for enhanced flexibility and performance during use.
The power head torque is 13000 N·m.
The machine is built with a durable design to ensure long-lasting performance in demanding environments.
