Motion Control Module – MC602-CPU3310G1616D for Complex Motion Control
- Section : Computers
- Category : Computer Accessories
- SKU : 1601009677283
Motion Control Module – MC602-CPU3310G1616D for Complex Motion Control
The Motion Control Module (model MC602-CPU3310G1616D) is a powerful tool designed to complete user program execution, logic control, and complex motion control tasks. Ideal for medium to large PLC applications such as process control, motion control, and more, this module provides high-performance computing with reliable and diverse communication options. It is perfect for users who require a flexible, high-speed control system in their operations.
Key Features
- High-Speed Performance: Powered by a 4-core CPU with a main frequency of 1.5GHz, providing fast processing speeds with 4ns basic instruction instruction running speed.
- Versatile Programming Support: Supports IEC61131-3 programming languages, including LD, FBD, IL, ST, SFC, and CFC, for a wide range of applications.
- Wide Communication Support: The module supports multiple industrial field bus protocols like Ethernet/IP, Modbus TCP, CANopen, Profinet, EtherCAT, and more, offering robust networking capabilities.
- Flexible Storage: Equipped with 512MB program storage, 4GB data storage, and expandable storage up to 32GB, ensuring ample space for large-scale data handling.
- Remote I/O Expansion: Can expand up to 127 remote I/O racks through fieldbus, making it scalable for large projects.
- Comprehensive Motion Control: Supports motion control features such as Cam, Gear, CNC, SCARA, robotic control, and up to 64 bus axes for advanced control in robotics, CNC machines, and motion tracking systems.
- Web-Based Configuration: Configuring the system is easy with web tools that allow for network configuration, I/O debugging, program downloads, and more, without the need for additional programming software.
- Integrated WebVisu Function: Offers visual control of the system via WebHMI, allowing users to view and modify data through a web browser on any device.
- Rich Connectivity: Supports OPC UA, Modbus TCP, MQTT, and other standard protocols for data interaction with SCADA systems, HMI, and cloud platforms.
| Product Name | Motion control module |
| Model | MC602-CPU3310G1616D |
| Brand | LicOS |
| Place Of Origin | Yunnan，China |
| Condition | 100% New 100% Original |
| Series | MC600 series |
| Production Function | Completes the execution of user programmes, completes logic control, and completes complex motion control. |
| Application | Medium to large PLC applications such as process control, logic control, motion control, etc. |
| Core Points | ★1. CPU main frequency: 4 cores * 1.5GHz. ★2. Support IEC61131-3 programming language (LD, FBD, IL, ST, SFC, CFC). ★3. CPU module supports a variety of industrial field bus. ★4. CPU module supports a variety of industrial fieldbus protocols: Ethernet/IP, ★5. can communicate with the host computer through a variety of ★6. 512M programme storage space, 4G data storage space, 2M can achieve data power-off hold, 32G expandable storage space. ★7. 4ns/basic instruction instruction running speed. ★8. can be configured through the Web for network information. ★9. integrated with the standard backplane bus, the body supports a maximum of 16 GL100 I/O modules (16 * 32 = 512 points), the first and last refresh time is less than 5ms. ★10. 127 remote I/O racks can be extended through fieldbus to achieve large-scale I/O point control. ★11. EtherCat supports 64 bus axes (128 axes in dual-master mode). ★12. supports PTP control, electronic cam (flying shear, rotary cut, tracking shear, following, synchronous), electronic gear, linear/arc/3-axis helical interpolation, CNC (supports G code), robotics (Delta, SCARA, Portal, Tripod, gantry, Bipod and 4-axis palletising, 6-axis free-jointed robots), etc., which allows you to control the complex motion control. |
| Technical consulting support | Yes |
| Warranty | 1 year |
| Product Feature | 1. Support six languages (LD, FBD, IL, ST, SFC, CFC) that comply with IEC 61131-3 programming standards. 2. Support Cam, Gear, CNC, SCARA, ROBOT motion control components, Supports up to 64 axis. 3. Up to 127 remote racks can be extended via fieldbus. 4. Maximum analog channel: 8192 ~ 32768 points; Maximum digital channel: 32768 ~ 131072 points. 5. Support Profinet, EtherCAT, Modbus TCP, EtherNet/IP, CANopen and other industrial fieldbus. 6. Do not need to install programming software can be realized through Web tools PLC network configuration, I/O debugging, program download, View and modify data in Area M, update firmware, etc. 7. Integration of WebVisu function, with rich visual elements, can be achieved in the programming software by dragging, The Web version of the HMI allows you to browse PLC devices on any device via a Web browser. 8. Through OPC UA, Modbus TCP, Modbus RTU, MQTT and other standard communication protocols, as well as user Define network protocol for data interaction with SCADA system, HMI and cloud platform. |
This Motion Control Module is the ultimate solution for users needing complex motion control, scalability, and high-speed performance for their PLC applications. With its wide range of features, it simplifies system management while offering flexibility for future expansion. It’s a valuable addition to any industrial setup requiring advanced motion control and network connectivity.

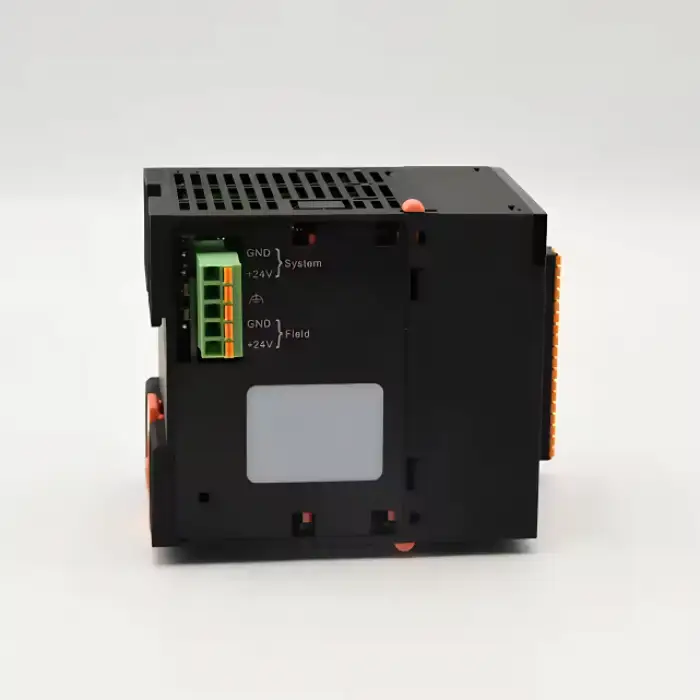

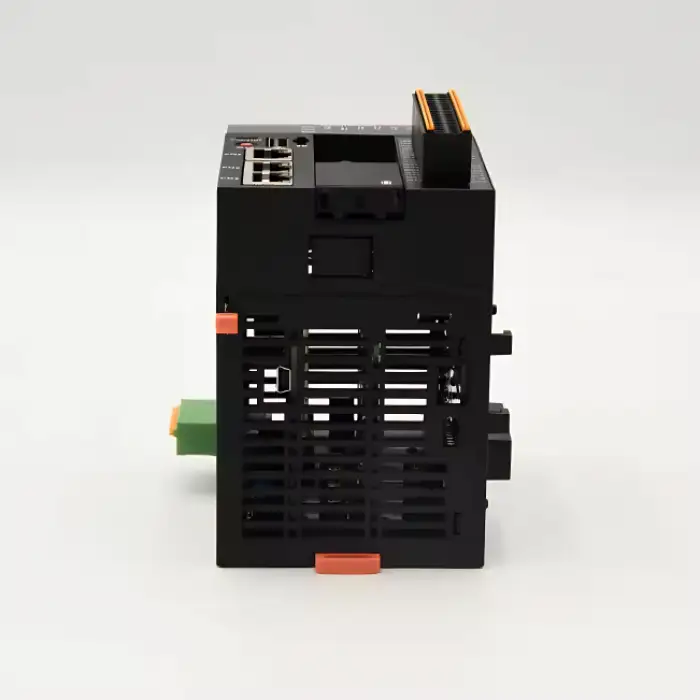

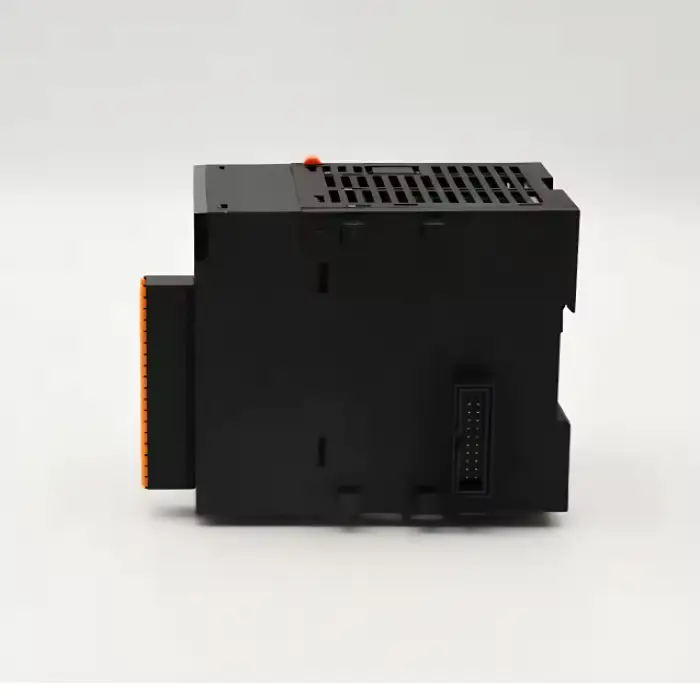

Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 26 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the main purpose of the Motion Control Module MC602-CPU3310G1616D?
The MC602-CPU3310G1616D is designed to complete user program execution, logic control, and complex motion control tasks, making it ideal for medium to large PLC applications.
2. What programming languages does the module support?
This module supports IEC61131-3 programming languages, including LD, FBD, IL, ST, SFC, and CFC.
3. What is the processing speed of the MC602-CPU3310G1616D?
It is powered by a 4-core CPU with a main frequency of 1.5GHz, offering a basic instruction running speed of 4ns.
4. How many remote I/O racks can be expanded with this module?
The MC602-CPU3310G1616D can expand up to 127 remote I/O racks through fieldbus.
5. What are the communication protocols supported by this module?
The module supports multiple industrial field bus protocols including Ethernet/IP, Modbus TCP, CANopen, Profinet, EtherCAT, and more.
6. Can this module be used for robotic control?
Yes, it supports advanced motion control features including robotic control for various configurations like SCARA and Delta robots.
7. What type of storage does the MC602-CPU3310G1616D provide?
It is equipped with 512MB program storage, 4GB data storage, and expandable storage up to 32GB.
8. Is there a web-based configuration option for this module?
Yes, the system can be configured easily with web tools for network configuration, I/O debugging, program downloads, and more.
9. What warranty is offered with the Motion Control Module?
The MC602-CPU3310G1616D comes with a 1-year warranty.
10. What is the maximum number of axes supported for motion control?
The module supports up to 64 bus axes for advanced control in robotics and CNC machines.
11. Does the module require additional software for configuration?
No, the module can be configured through web tools without the need for additional programming software.
12. What types of applications is the MC602-CPU3310G1616D suitable for?
It is suitable for a wide range of applications including process control, logic control, and complex motion control.
13. How does the integrated WebVisu function benefit users?
The WebVisu function allows users to visually control the system and modify data through a web browser on any device.
14. What kind of technical support is available for this module?
Technical consulting support is available for users of the MC602-CPU3310G1616D.
15. What are the maximum digital and analog channels supported?
The module supports a maximum of 32768 to 131072 digital channels and 8192 to 32768 analog channels.
