Mingda Large Size Industrial 600*600mm 3D Printer for Plastic
- Section : Consumer Electronics
- Category : 3D Printers
- SKU : 1601205300764
Mingda Large Size Industrial 600*600mm 3D Printer for Plastic

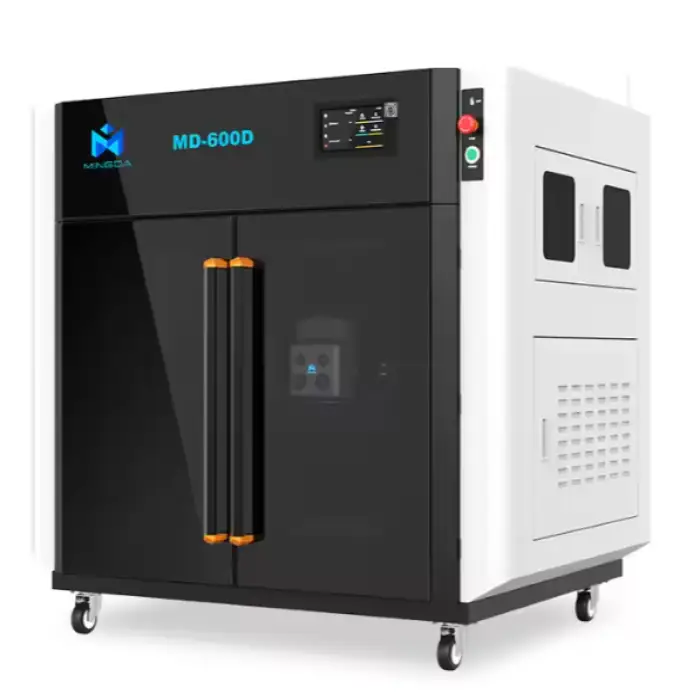

The Mingda MD-600D 3D Printer is a large-format industrial 3D printer designed for high-precision prototyping and production. With a massive printing volume of 600600600mm and dual extruder capability, this printer is perfect for manufacturing plastic prototypes, industrial parts, and models with exceptional detail and reliability.
Key Features:
- Large Print Volume: With a maximum print size of 600600600mm, ideal for large industrial applications.
- FDM Technology: Utilizes Fused Deposition Modeling (FDM) for high-quality and precise 3D prints.
- Dual Extruder: Capable of printing with two colors or materials simultaneously for more complex designs.
- Multi-Axis Functionality: Supports multi-axis printing for enhanced flexibility and design complexity.
- Heated Bed: Equipped with a heated bed to improve print quality and adhesion.
- Resume Printing: Automatically resumes printing after interruptions, ensuring continuous production.
- Filament Detection: Detects when filament is running low, preventing print failures.
- Auto Leveling: Automatically levels the bed for accurate and consistent prints.
- Wide Material Compatibility: Supports various filaments, including PA-CF/GF, PET-CF/GF, HtPA-CF/GF, ABS-GF25, PA-GF25, S-Mulit, S-HtPA, and PVA.
- High Print Speed: Capable of printing at speeds up to 500mm/s, making it ideal for rapid prototyping.
- Extruder Temperature: The extruder can reach temperatures up to 350°C, allowing for use with high-temperature materials.
- Max Flow Rate: Supports up to 40mm³/s for efficient extrusion.
- Accurate Performance: Acceleration of 10000mm/s² for smooth and precise movements during printing.
- Rated Power: Consumes 1400W, with 1200W allocated to the heated bed.
- Compact Design: Despite its large print size, the printer's dimensions (13009651255mm) and 200kg weight ensure a sturdy, reliable build.
Product Parameters
| Printing | ||
| Model Name | MD-600D | |
| Build Volume | 600x600x600mm | |
| Machine Dimensions | 1300*965*1255mm | |
| Print Technology | FDM | |
| Number of Nozzle | Auto-rising Dual Extruders 350℃ | |
| Layer Resolution | 0.05 mm-0.3mm | |
| Filament Diameter | 1.75 mm | |
| Filament Compatibility | Common Filament：PLA,ABS,TPU,PETG Engineering Filament:PA-CF/GF,PET-CF/GF,HtPA-CF/GF,ABS-GF20,PA-GF25/CF25 Support Filament:S-Mulit,S-HtPA,PVA,etc. | |
| Nozzle Diameter | 0.4mm ( 0.6, 0.8, 1.0mm) | |
| Temperature | ||
| Max. Nozzle Temp. | 350℃ | |
| Max. Bed Temp. | 110℃ | |
| Speed | ||
| Best Printing Speed | 200-300mm/s | 150-200mm/s |
| Max Printing Speed | 500mm/s | 200mm/s+ |
| Max Flow | 40mm³/s | |
| Levelling | Auto Leveling and Babystep | |
| Eletrical | ||
| Power Requirements | 110V/240AC 50/60Hz | |
| Max. Power | 1400W(Hot Bed Power:1200W) | |
| Screen | 7.0 inch HDMI Touch Screen | |
| Connectivity | USB,Wifi | |
| Software | ||
| Support Software | Mingda-Cura,Prusa Slicer,etc. | |
| Firmware | klipper |
The Mingda MD-600D is a versatile and reliable 3D printer suitable for industries requiring high-quality, large-scale plastic prototypes and models. Its dual extruder and advanced features ensure efficient production and top-tier performance.
Product Info Gallery:
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum print volume of the Mingda MD-600D?
The Mingda MD-600D has a maximum print volume of 600x600x600mm, making it suitable for large industrial applications.
2. What technology does the Mingda MD-600D use for printing?
The Mingda MD-600D utilizes Fused Deposition Modeling (FDM) technology for high-quality and precise 3D prints.
3. Can the Mingda MD-600D print with multiple materials?
Yes, the Mingda MD-600D features dual extruders, allowing it to print with two colors or materials simultaneously for more complex designs.
4. What types of filament are compatible with the Mingda MD-600D?
The Mingda MD-600D supports various filaments including PLA, ABS, TPU, PETG, and engineering filaments like PA-CF/GF, PET-CF/GF, and more.
5. What is the maximum nozzle temperature of the Mingda MD-600D?
The maximum nozzle temperature of the Mingda MD-600D can reach up to 350°C, allowing for the use of high-temperature materials.
6. Does the Mingda MD-600D have an auto-leveling feature?
Yes, the Mingda MD-600D is equipped with an auto-leveling feature to ensure accurate and consistent prints.
7. What is the printing speed of the Mingda MD-600D?
The Mingda MD-600D can print at speeds up to 500mm/s, making it ideal for rapid prototyping.
8. How does the resume printing feature work?
The resume printing feature automatically resumes printing after an interruption, ensuring continuous production without losing progress.
9. What kind of screen does the Mingda MD-600D have?
The Mingda MD-600D features a 7.0 inch HDMI touch screen for easy operation and monitoring.
10. What is the power consumption of the Mingda MD-600D?
The Mingda MD-600D has a maximum power consumption of 1400W, with 1200W allocated to the heated bed.
11. Is the Mingda MD-600D suitable for industrial use?
Yes, the Mingda MD-600D is designed for industrial applications requiring high-quality, large-scale plastic prototypes and models.
12. What is the layer resolution of the Mingda MD-600D?
The Mingda MD-600D offers a layer resolution range from 0.05 mm to 0.3 mm for detailed prints.
13. What connectivity options are available for the Mingda MD-600D?
The Mingda MD-600D supports USB and Wi-Fi connectivity for easy file transfer and printer control.
14. What firmware does the Mingda MD-600D use?
The Mingda MD-600D operates on Klipper firmware, which enhances its performance and capabilities.
15. What are the dimensions of the Mingda MD-600D?
The Mingda MD-600D has dimensions of 1300x965x1255mm and weighs 200kg, ensuring a sturdy and reliable build.
