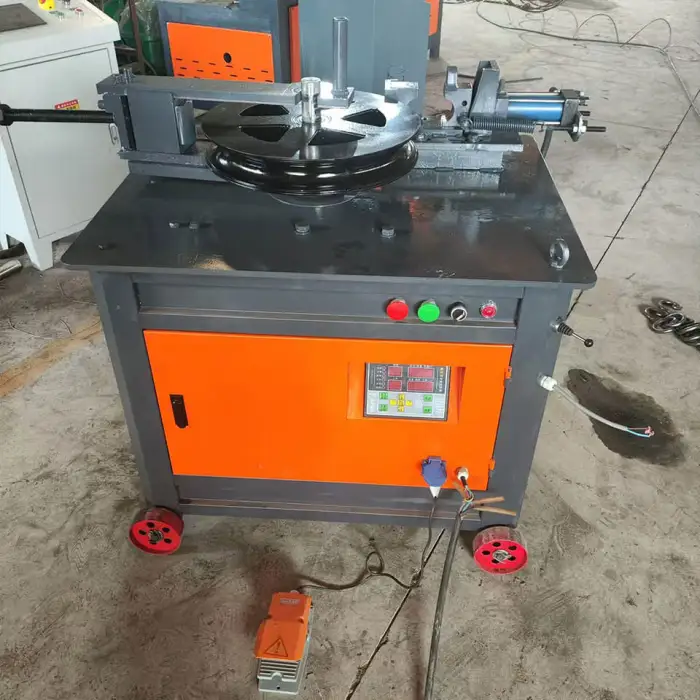

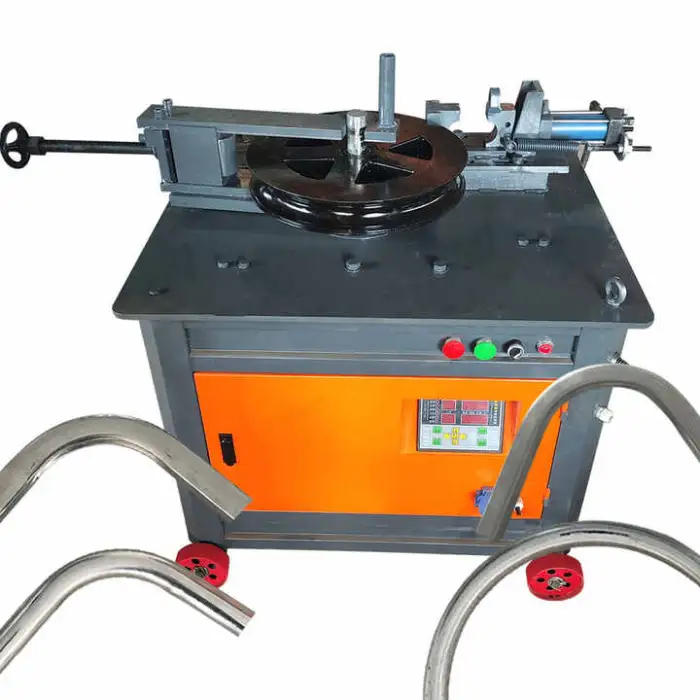

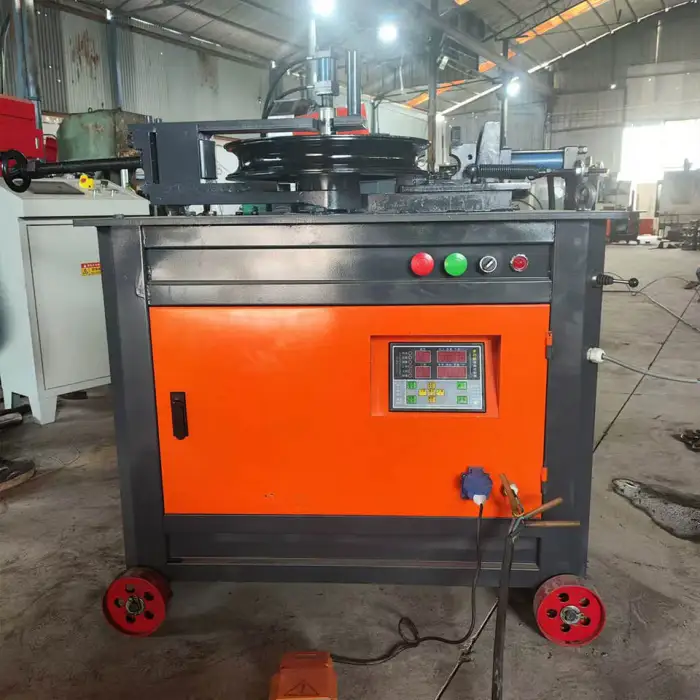

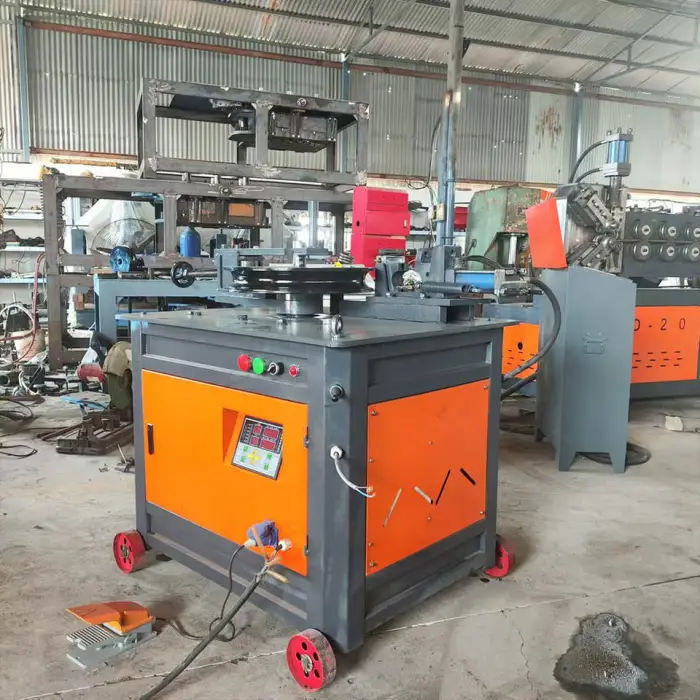

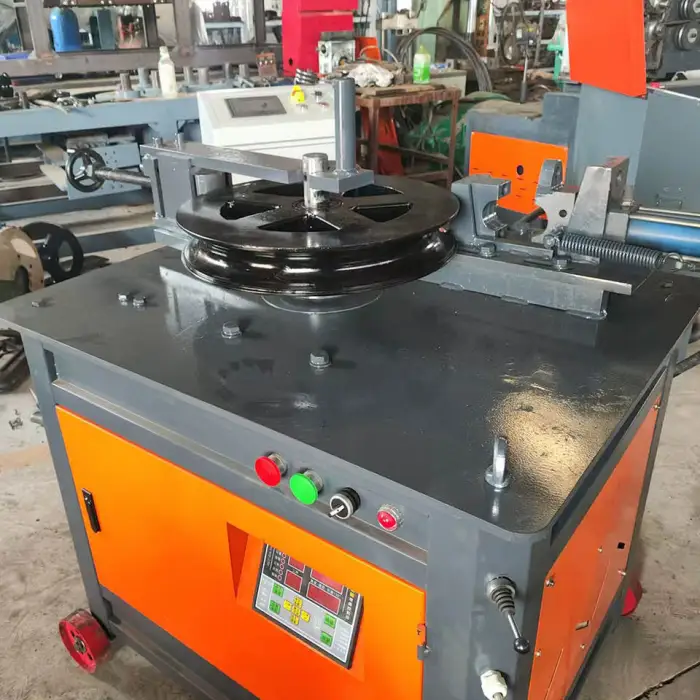

The Copper Busbar Aluminum Profile Welded Wire Mesh Bending Machine can handle various metal types, including copper, aluminum, and stainless steel.
The machine can bend materials with a diameter range of 10-50mm.
The maximum bending thickness that can be processed with this machine is less than 3mm.
The machine provides a hydraulic clamping force of about 2 tons.
The hydraulic motor power is rated at 0.75 kW.
The maximum size of the bendable round tube is 51mm x 3mm.
The maximum square tube size that can be bent is 4mm x 6mm x 3mm.
The bending precision of the machine is 0.2 degrees.
The bending radius range is from 125mm to 250mm.
The machine can achieve a maximum bending angle of 180 degrees.
The weight of the machine is 250 kg.
The machine features semi-automatic operation for ease of use.

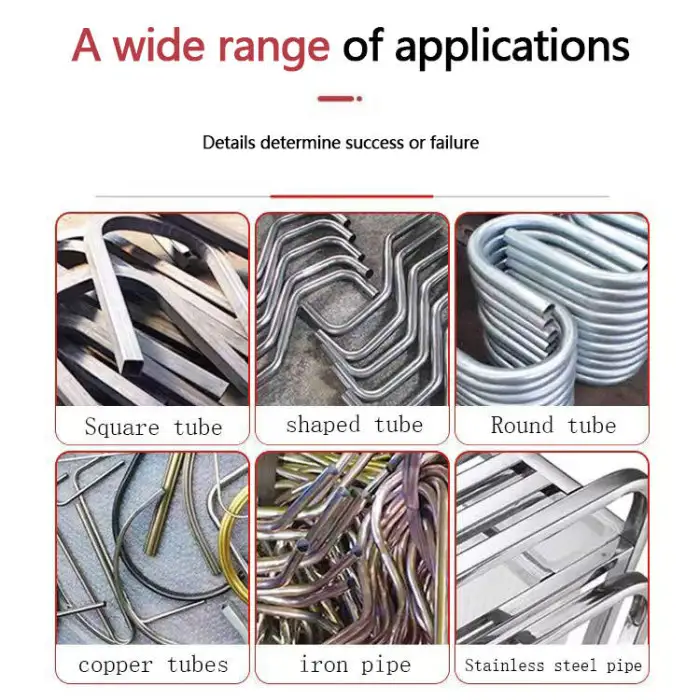

This machine is suitable for daily hardware manufacturing, automotive parts production, construction projects, custom metal fabrication, and art and design metalworks.
Yes, the machine offers customizable settings to meet various bending requirements.
We recommend that users consult the manual provided with the machine for setup and operation guidance. Additionally, we can offer training sessions upon request.
