Busbar Processing Machine Model: DHY-200
- Section : Electrical & Tools
- Category : Tools & Hardware
- SKU : 1601008189868

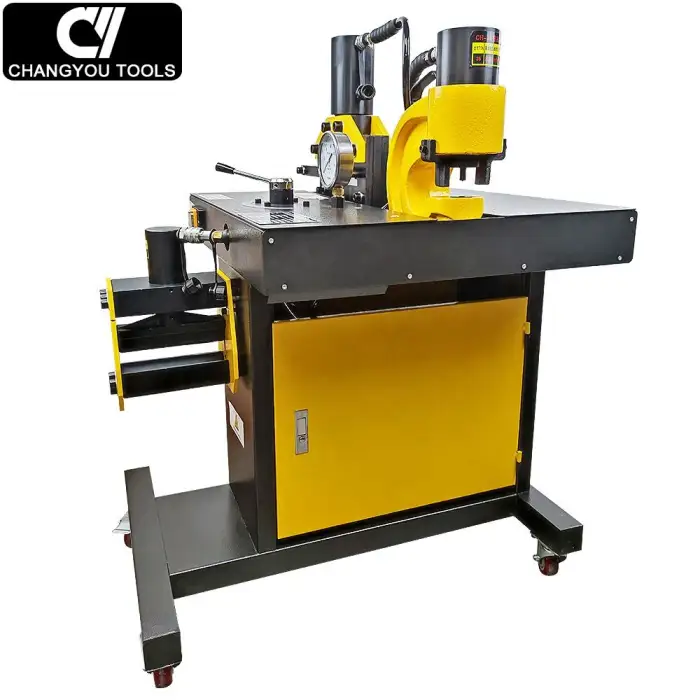

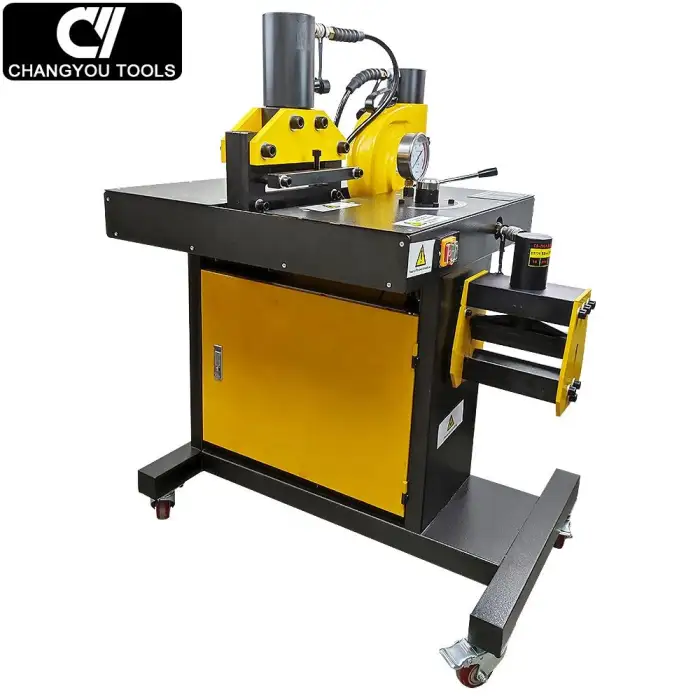

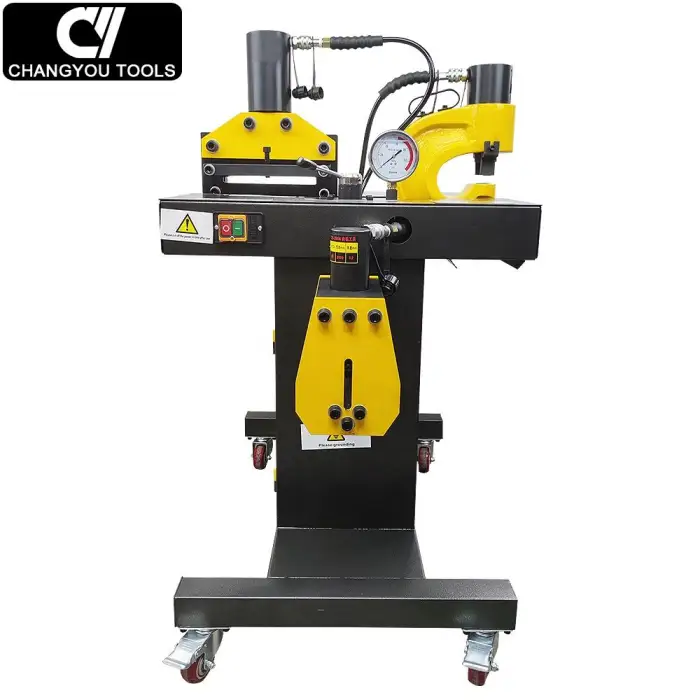

Busbar Processing Machine
The Busbar Processing Machine is a specialized machine used for processing copper and metal busbars. With robust features and customizable motor power, this machine ensures efficient and precise processing of busbars in various industrial applications.
Specifications:
| Model | DHY-200 |
| Input Voltage/Control Voltage | 220V/380V |
| Rating Working Oil Pressure | 700 kgf/cm² |
| Output Cutting Force | 35 Ton |
| Output Punching Force | 35 Ton |
| Output Bending Force | 16 Ton |
| Cutting Max | 200 mm Width, Cu/AL Thickness 3-12 mm |
| Punching Max | 200 mm Width, Cu/AL Thickness 3-12 mm |
| Bending Max | 200 mm Width, Cu/AL Thickness 3-12 mm |
| Throat Depth of Punching | 110 mm |
| Punching Dies | 7/9/10.5/13.8/17/20.5 mm |
| Weight | 206 kgs |
| Package Size | 100 cm x 78 cm x 133 cm |
Features & Functions:
- This machine is the light of advanced products and is combined with the actual order to improve efficiency and ensure the operational safety requirements of designed equipment.
- Suitable for transmission and distribution in a large workshop and site construction work, as well as for power distribution equipment and switchgear and other electrical appliances factory use.
- High flexibility, small size, and strong function, along with high production capacity and efficiency.
- Low-noise sound, beautiful, and will not have finished processing the work environment pollution.
- Multiple functions could make producing busbar easily and quickly.

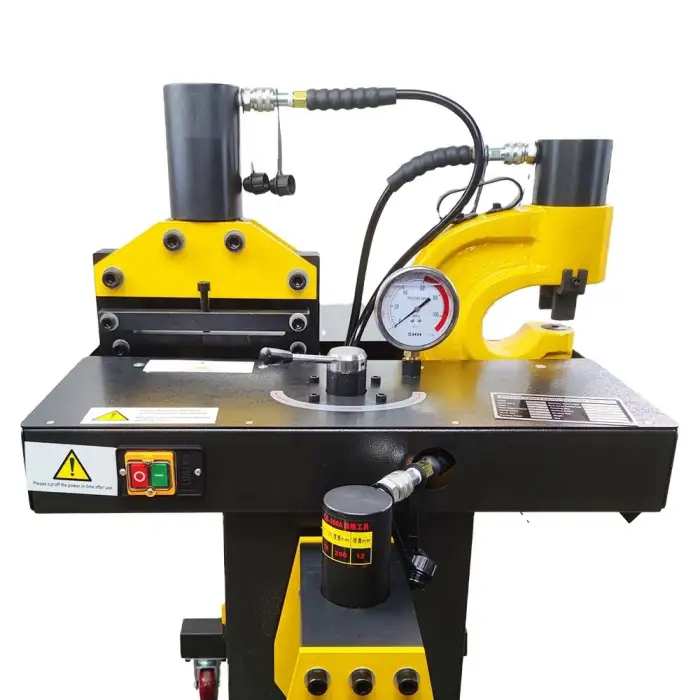

Note: DHY-200 Consists of 4 Tools:
- CWC-200 Hydraulic Cutting Tool
- CB-200A Hydraulic Bending Tool
- CH-70 Hydraulic Punching Tool
- HHB-700A Hydraulic Electric Pump
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the Busbar Processing Machine Model DHY-200?
The DHY-200 is a specialized busbar processing machine for cutting, punching and bending copper and aluminum busbars. It combines multiple hydraulic tools to provide efficient, precise processing for switchgear, power distribution, and electrical equipment manufacturing.
2. Which operations can the DHY-200 perform?
The DHY-200 performs hydraulic cutting, punching and bending of busbars. It is supplied as a set of four tools: CWC-200 hydraulic cutting tool, CH-70 hydraulic punching tool, CB-200A hydraulic bending tool and HHB-700A hydraulic electric pump.
3. What materials and sizes can it process?
It is designed for copper and aluminum busbars. Maximum workable width is 200 mm and recommended thickness range is 3–12 mm for cutting, punching and bending.
4. What are the machine's main performance specifications?
Cutting force: 35 ton; Punching force: 35 ton; Bending force: 16 ton; Rated working oil pressure: 700 kgf/cm²; Punching throat depth: 110 mm.
5. What punching die sizes are available with the DHY-200?
Standard punching dies supplied include sizes: 7 mm, 9 mm, 10.5 mm, 13.8 mm, 17 mm and 20.5 mm.
6. What are the electrical requirements?
The machine is available for 220 V or 380 V input/control voltage. Confirm the exact control voltage option with your supplier when ordering.
7. What are the machine weight and packaged dimensions?
Net weight is approximately 206 kg. Package size is 100 cm × 78 cm × 133 cm.
8. Is motor power customizable?
Yes. The DHY-200 supports customizable motor/pump power options to suit different production needs. Contact the manufacturer or dealer to specify motor power when ordering.
9. What safety features and precautions should I follow?
Use appropriate PPE (gloves, eye protection), keep guards and safety interlocks in place, follow lockout/tagout procedures before maintenance, and ensure only trained personnel operate the machine. Always follow the supplied operator manual for detailed safety instructions.
10. What maintenance is required to keep the DHY-200 running reliably?
Perform daily cleaning and visual inspection, check hydraulic oil level and hoses for leaks, keep dies and tooling clean, and replace hydraulic oil and filters per the supplier's service schedule. Follow the manufacturer's maintenance manual for recommended intervals.
11. What installation requirements are there?
Install on a stable, level floor capable of supporting the machine weight. Provide the specified electrical supply (220 V or 380 V), adequate grounding, and space for access and material handling. Ensure the hydraulic pump (HHB-700A) is connected and positioned per the installation guide.
12. Can the DHY-200 be used on-site (e.g., construction) as well as in workshops?
Yes. The machine is designed for both workshop production and site construction work, including transmission/distribution installations, due to its relatively compact footprint and portability compared with larger stationary equipment.
13. How many operations per hour can the DHY-200 perform?
Throughput depends on part complexity, operator skill, setup and automation level. The DHY-200 is built for high production capacity, but exact cycles per hour vary—discuss your target throughput with the supplier for a process assessment and recommended tooling.
14. Are spare parts and additional tooling available?
Yes. Common spare parts and additional punching dies, cutting blades and bending tooling are typically available. Contact the manufacturer or authorized dealer to order spare parts or special dies.
15. What warranty and after-sales support are provided?
Warranty terms and after-sales support vary by supplier and region. Check with your vendor for specific warranty coverage, availability of training, technical support and service agreements.
