80GHz Radar Level Meter / Radar Level Transmitter - High-Precision Split Type Radar Level Sensor
- Section : Consumer Electronics
- Category : Measuring & Gauging Tools
- SKU : 1601166228496
80GHz Radar Level Meter / Radar Level Transmitter - High-Precision Split Type Radar Level Sensor
The JUBO JBRD-800FD-P Radar Level Meter is a high-precision, split-type radar level sensor designed to meet the demands of industries dealing with strong corrosive liquids, stirring environments, and water vapor condensation. This advanced radar sensor utilizes 80GHz frequency technology for accurate, reliable, and non-contact level measurement across a wide range of industrial applications.
Key Features:
- High-Precision Measurement: The JUBO Radar Level Sensor offers exceptional accuracy with a measurement range of up to 120 meters, making it suitable for both short and long-range applications.
- Advanced 80GHz Technology: Operating at a frequency range of 76~81GHz, it ensures high-resolution measurements even in challenging conditions.
- Wide Operating Conditions: The sensor operates effectively in temperatures ranging from -40°C to 100°C and process pressures between -0.1 MPa to 1 MPa, offering broad versatility in industrial environments.
- Non-Contact Measurement: The radar sensor provides a non-contact measurement solution, minimizing wear and tear and maintenance requirements.
- Flexible Output Options: The device supports both 4-20mA and RS-485 outputs, ensuring easy integration with existing control systems.
- Rugged Construction: Made from high-quality aluminum casting and stainless steel, the sensor is durable and designed to withstand harsh industrial environments.
- Lens Antenna: Equipped with a lens antenna for superior signal directionality and accuracy.
- IP68 Protection: The device is rated for IP68 protection, ensuring it is resistant to dust, moisture, and submersion in water.

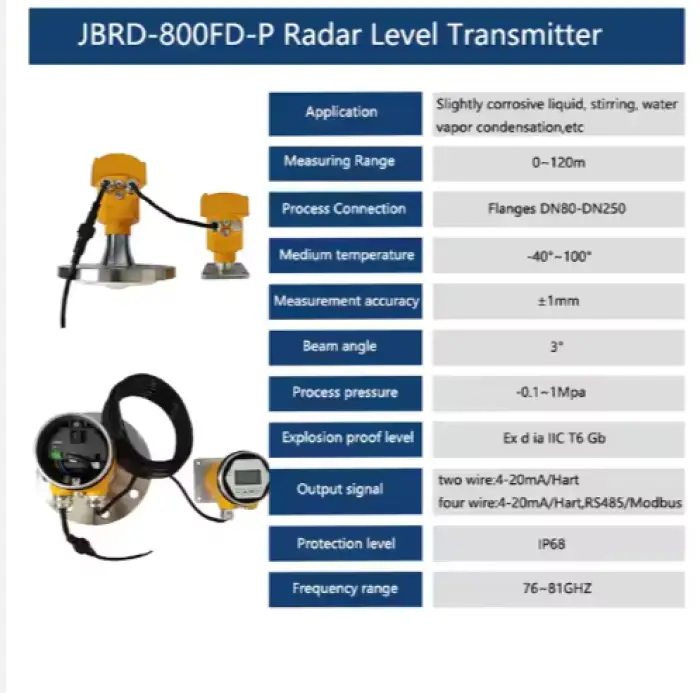

| Place of Origin | Hebei, China (Mainland) |
| Brand Name | JUBO |
| Model Number | JBRD-800-FD-P |
| Grade | Industrial |
| Application | Strong corrosive liquid, stirring, water vapor condensation,Etc |
| Medium temperature | -40°~100° |
| Measuring Range | 120m |
| Beam Angle | 3° |
| Type | Non-contact |
| Material | Stainless Steel/Aluminum alloy |
| Power supply | RS485:9-36V 4-20mA:12-36V |
| Output signal | two wire:4-20mA/Hart four wire:4-20mA/Hart,RS485/Modbus |
| Measurement accuracy | ±1mm |
| Installation method | Flange |
| Protection grade | IP68 |
| Explosion proof level | Ex d ia IIC T6 Gb |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 26 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the measurement range of the JUBO JBRD-800FD-P Radar Level Meter?
The JUBO JBRD-800FD-P Radar Level Meter has a measurement range of up to 120 meters, making it suitable for both short and long-range applications.
2. What frequency does the radar level sensor operate at?
The radar level sensor operates at an advanced frequency range of 76~81GHz, ensuring high-resolution measurements even in challenging conditions.
3. What is the temperature range in which this sensor can operate?
The sensor operates effectively in temperatures ranging from -40°C to 100°C, making it versatile for various industrial environments.
4. Is the JUBO Radar Level Sensor suitable for corrosive liquids?
Yes, the JUBO Radar Level Sensor is designed to meet the demands of industries dealing with strong corrosive liquids.
5. What are the output options available for this radar level meter?
The device supports both 4-20mA and RS-485 outputs, ensuring easy integration with existing control systems.
6. What is the construction material of the radar level sensor?
The sensor is made from high-quality aluminum casting and stainless steel, providing durability and resistance to harsh industrial environments.
7. Does the sensor require contact with the liquid for measurement?
No, the JUBO Radar Level Sensor provides non-contact measurement, minimizing wear and tear and reducing maintenance requirements.
8. What is the protection rating of this device?
The device is rated at IP68, ensuring it is resistant to dust, moisture, and even submersion in water.
9. What types of environments can this sensor be used in?
The sensor is designed for use in environments with strong corrosive liquids, stirring conditions, and water vapor condensation.
10. What is the beam angle of the radar level meter?
The radar level meter has a beam angle of 3°, which enhances its measurement accuracy.
11. What is the installation method for the JUBO Radar Level Sensor?
The sensor is typically installed using a flange method.
12. What is the measurement accuracy of this radar level transmitter?
The measurement accuracy of the JUBO Radar Level Transmitter is ±1mm.
13. Is this product explosion-proof?
Yes, the JUBO Radar Level Sensor has an explosion-proof level rated as Ex d ia IIC T6 Gb.
14. Where is the JUBO JBRD-800FD-P Radar Level Meter manufactured?
The product originates from Hebei, China (Mainland).
15. What power supply options are available for this radar level sensor?
The radar level sensor requires a power supply of RS485: 9-36V or 4-20mA: 12-36V.
