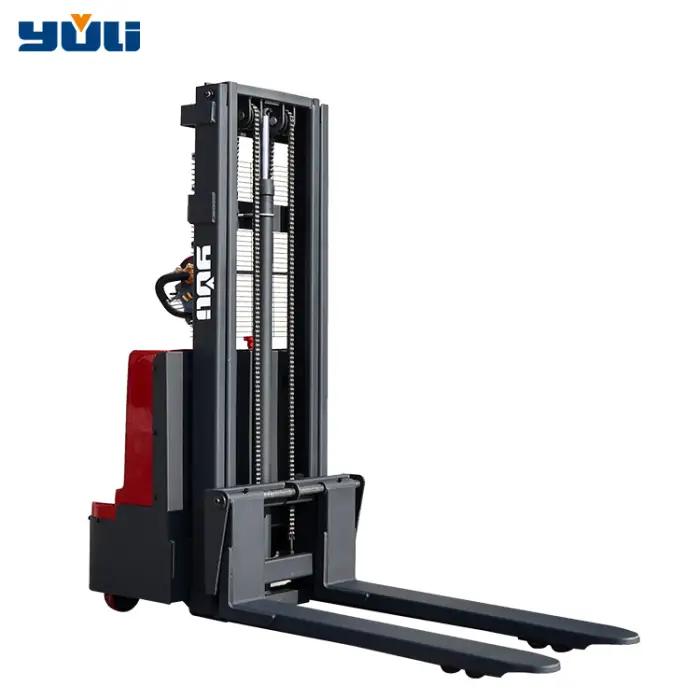

The maximum load capacity of the 1.5ton Electric Stacker is 1500 kg.
The electric forklift stacker has a maximum lifting height of 3.5 meters (3500 mm).
This electric stacker operates in a walking style, allowing the operator to walk alongside the vehicle while controlling its movement.
The fork specifications are 1150 mm in length, 170 mm in width, and 60 mm in thickness.
The minimum height of the forks is 85 mm.
The weight of the battery is 47 kg.
The minimum turning radius of the electric stacker is 1520 mm.
The maximum driving speed of the stacker is 4.9 km/h, regardless of whether it is loaded or unloaded.
The maximum climbing angle is 6 degrees when fully loaded and 10 degrees when unloaded.
The wheelbase of the electric stacker is 1350 mm.
The dimensions of the vehicle body are 1820 mm in length and 805 mm in width.
The electric stacker is equipped with a 0.75 KW driving motor and a 2.2 KW lifting motor.
The battery voltage is 24V with a capacity of 80Ah.
The self-weight of the electric stacker, including the battery, is 750 kg.
The electric stacker is primarily designed for indoor use. For outdoor applications, please consult the manufacturer for compatibility.
