YN-FFU-A01 Air Cleaning Equipment Laminar Flow Hood FFU Fan Filter Unit HEPA Filter Core Component Motor Clean Room Air Purifier U16
- Section : Machinery
- Category : Air Cleaning Equipment
- SKU : 1601072006855
FFU
Product Description
FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.
FFU Features
Negative pressure ventilation
Because of its ability to provide static pressure, the clean room is positive pressure relative to the outside world. Therefore,
external particles are not subject to leakage into the clean area, makes sealing easy and safe.
Save space
Compared to other systems,
FFU system occupies less floor
height in the supply air plenum.
And basically does not occupy
the clean room space.
Shorten construction period
Using FFU saves the production and installation of air ducts.
Shorten the construction period.
Reduce operating costs
Although when choosing FFU, theinitial investment is higher than using duct ventilation. However, in the later operation, it prominently shows the characteristics of energy saving and maintenance-free.
Convenient and fast control
Remote and precise control of single or group FFU, And it is not affected by other pipe network systems.
It is flexible and easy to replace, install and move
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
| Material Classification | |
| Aluminium zinc plate | Stainless steel plate |
| Aluminum alloy plate | Powder coating steel |
| Rotor Classification | |
| Internal rotor fan | External rotor fan |
| Current Classification | |
| AC fan | EC fan |
| DC fan | |
| System Classification | |
| AC in-situ control | AC PC control system |
| EC PC control system | DC PC control system |
| Filter Level Classificat | |
| 99.95%@0.3μm（H13） | 99.995%@0.3μm（H14） |
| 99.9995%@0.12μm（U15） | 99.99995%@0.12μm（U16） |
Group Control Features
The system is easy to operate, can monitor the FFU on the computer and touch screen, has strong anti-interference and low construction cost. The system is designed based on 485 bus and adopts hierarchical control. The system can control up to 64516 units, which can be precisely controlled according to the customer's on-site FFU layout.
The FFU can work independently during PC and PLC standby
Supply Power: AC 1N 110,220V/50,60HzControl Function: Can control single or group FFU A. Start B. Stop C.RegulationMonitoring Function: Can monitor single or group FFU A. Working Status B. Error Alarm
Pressure deviation range:±5%FFU test standard base on; IEST-CCO0361-2014, GB/T388-2012, GB/T1236-20000, GB9068-1988Noise value is 1.5m below the air outlet of the filterAbove data is laboratory test value,deviation value depend on site situationcan customized acording to client's requierements

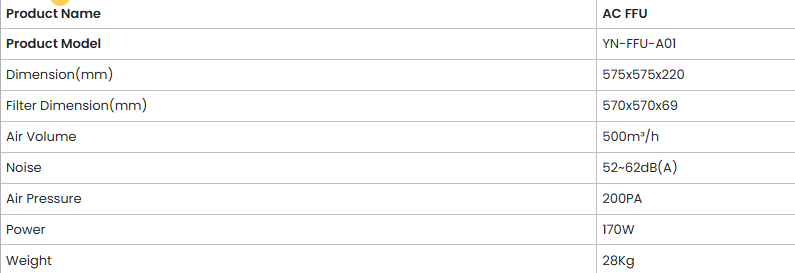

Product Parameter
Success case show
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the primary function of the YN-FFU-A01 Air Cleaning Equipment?
The primary function of the YN-FFU-A01 is to inhale air from the top, filter it using a HEPA filter, and then evenly distribute the clean air at a velocity of 0.45m/s across the outlet surface to maintain the cleanliness of the environment.
2. In which industries can the YN-FFU-A01 be used?
The YN-FFU-A01 is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, automobiles, hospitals, food processing, spraying, printing, and other cleanroom applications.
3. What are the benefits of using an FFU system compared to traditional duct systems?
FFU systems occupy less floor height, reduce the need for air ducts, shorten construction periods, and provide energy savings and maintenance-free operation in the long term.
4. What is the filter efficiency of the HEPA filter used in YN-FFU-A01?
The HEPA filter in the YN-FFU-A01 can achieve efficiencies of up to 99.99995% for particles as small as 0.12μm, depending on the filter classification.
5. Can the YN-FFU-A01 be controlled remotely?
Yes, the YN-FFU-A01 can be controlled remotely, allowing for precise operation of single or multiple units without interference from other systems.
6. What power supply is required for the YN-FFU-A01?
The YN-FFU-A01 requires an AC power supply of 110 or 220V at 50 or 60Hz.
7. How does the YN-FFU-A01 maintain a clean environment?
The YN-FFU-A01 maintains a clean environment by creating positive pressure in the cleanroom relative to the outside, preventing external particles from entering the clean area.
8. What materials are available for the YN-FFU-A01's construction?
The YN-FFU-A01 can be made from various materials including aluminum zinc plate, stainless steel plate, aluminum alloy plate, and powder-coated steel.
9. Is the YN-FFU-A01 easy to install?
Yes, the YN-FFU-A01 is designed for easy installation and can be mounted on ceiling keels and equipment machines in clean areas.
10. What noise level can be expected from the YN-FFU-A01?
The noise level of the YN-FFU-A01 is measured to be 1.5m below the air outlet of the filter, with laboratory test values available for reference.
11. Can the system be customized based on client requirements?
Yes, the YN-FFU-A01 can be customized according to specific client requirements, including different control systems and monitoring features.
12. What monitoring features are included with the YN-FFU-A01?
The YN-FFU-A01 includes monitoring features for checking working status and receiving error alarms for both single and group units.
13. What is the construction period savings when using the YN-FFU-A01?
Using the YN-FFU-A01 can significantly shorten the construction period by eliminating the need for extensive ductwork.
14. What types of fans are available in the YN-FFU-A01?
The YN-FFU-A01 is available with various fan types including internal rotor fans, external rotor fans, AC fans, EC fans, and DC fans.
15. What is the pressure deviation range for the YN-FFU-A01?
The pressure deviation range for the YN-FFU-A01 is ±5%, ensuring consistent performance in maintaining air quality.
