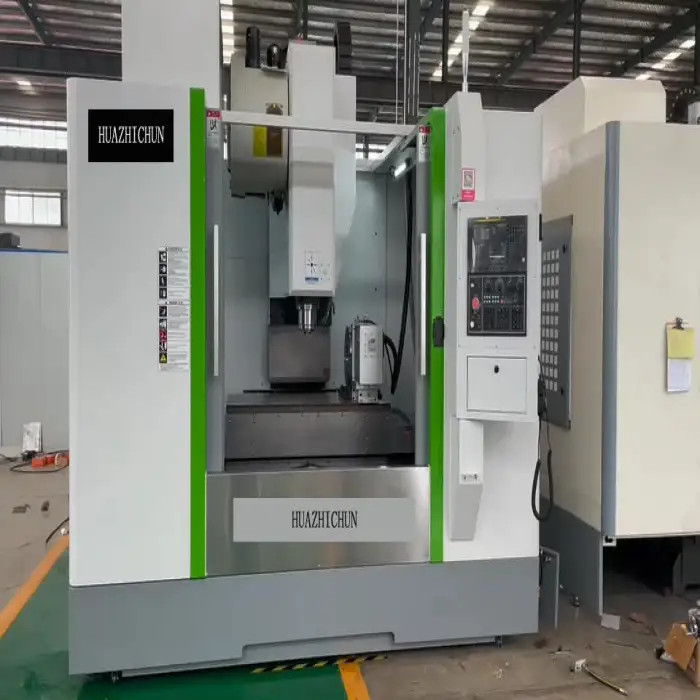

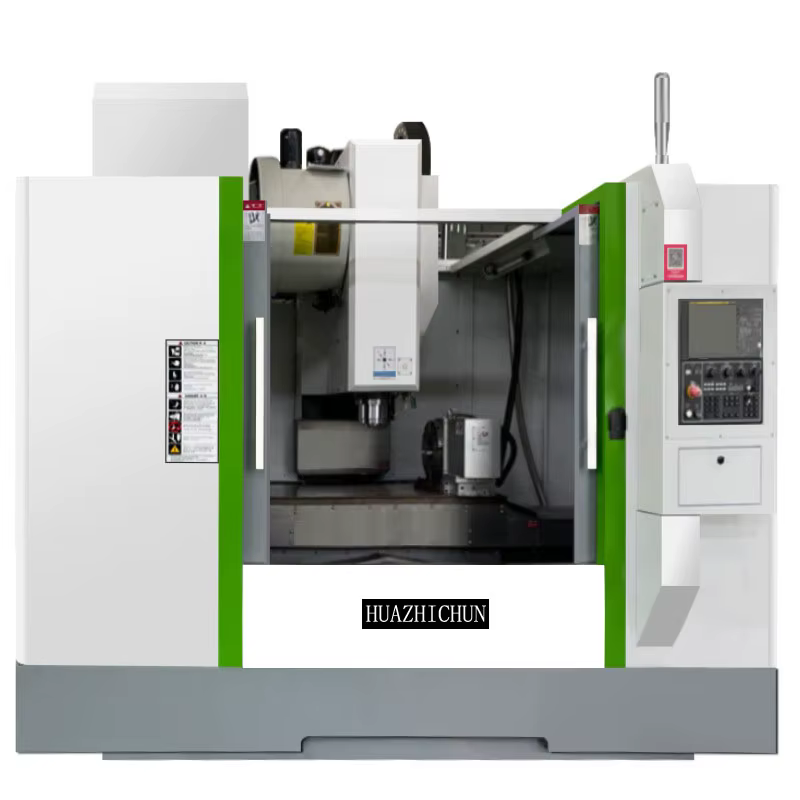

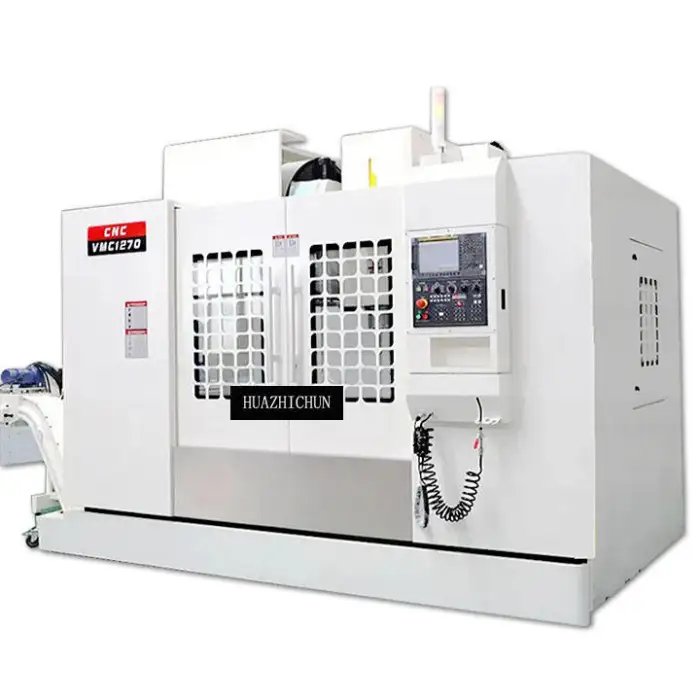

The dimensions of the HUAZHICHUN VMC1270 CNC Machining Center are 3400 mm (Length) x 2480 mm (Width) x 2960 mm (Height).
The HUAZHICHUN VMC1270 weighs 9500 kg.
The HUAZHICHUN VMC1270 CNC Machining Center utilizes the GSK CNC control system.
The maximum table load for the HUAZHICHUN VMC1270 is 1200 kg.
The minimum time of tool change in the HUAZHICHUN VMC1270 is just 7 seconds.
The spindle speed range of the HUAZHICHUN VMC1270 is from 1 to 8000 RPM.
The rapid feed speed of the HUAZHICHUN VMC1270 can reach up to 24000 mm/min.
The positioning accuracy of the HUAZHICHUN VMC1270 is ±0.0075 mm.
The repeatability for the X, Y, and Z axes is ±0.005 mm.
The table size of the HUAZHICHUN VMC1270 is 1300 mm x 700 mm.
The table travel distances are 1200 mm for X, 700 mm for Y, and 600 mm for Z.
The tool magazine capacity of the HUAZHICHUN VMC1270 can be 16, 24, or 32 tools.
The operating voltage for the HUAZHICHUN VMC1270 is 380 V.
The HUAZHICHUN VMC1270 comes with an 18-month warranty.
The HUAZHICHUN VMC1270 is suitable for manufacturing precision parts, creating custom components, machining complex shapes, producing prototypes, and heavy-duty machining tasks.
