P3.91 Indoor 1000x250mm Fixed LED Screen - Specification Overview

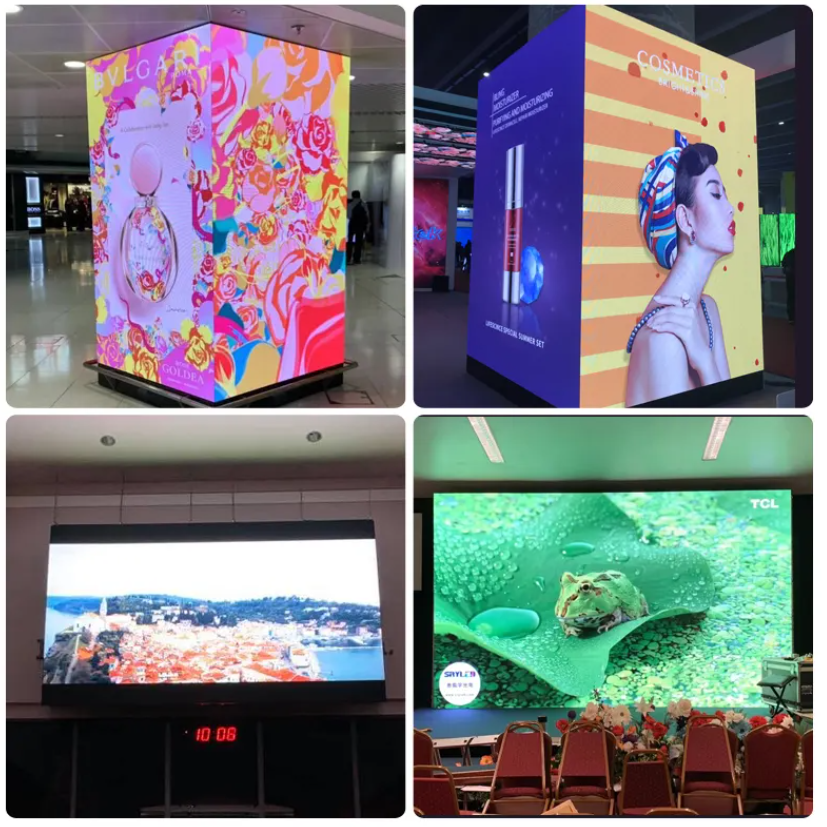

The P3.91 Indoor Fixed LED Screen is designed to offer high-quality displays for a variety of indoor applications such as retail, exhibitions, and digital signage. This screen is engineered with a sleek, space-saving design and features a front service design for easy maintenance, making it an ideal choice for installations where wall mounting is preferred without additional steel structures.

Key Features & Specifications:

• Pixel Pitch: 3.91mm – Offers clear visuals, especially for viewing distances between 4m to 40m.
• Pixel Density: 65536 dots/sqm – Provides excellent resolution and sharpness for indoor viewing.
• Color Configuration: 1R1G1B – Standard full-color LED display with red, green, and blue channels for accurate color rendering.
• LED Package: SMD2121 – High-quality, energy-efficient LEDs that provide better brightness and color consistency.

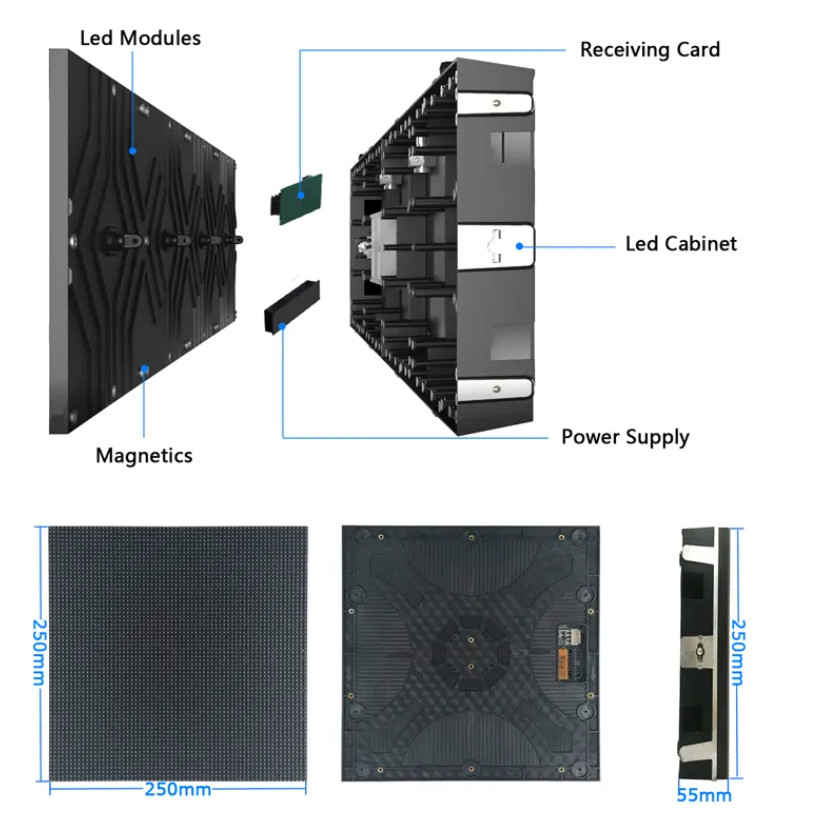

• Module Size: 250mm x 250mm – Modular design for easy setup and installation.
• Module Resolution: 64dots x 64dots – High resolution for enhanced image clarity.

Cabinet Details:

• Cabinet Material: Die Casting Aluminum – Lightweight, durable, and ensures superior heat dissipation.

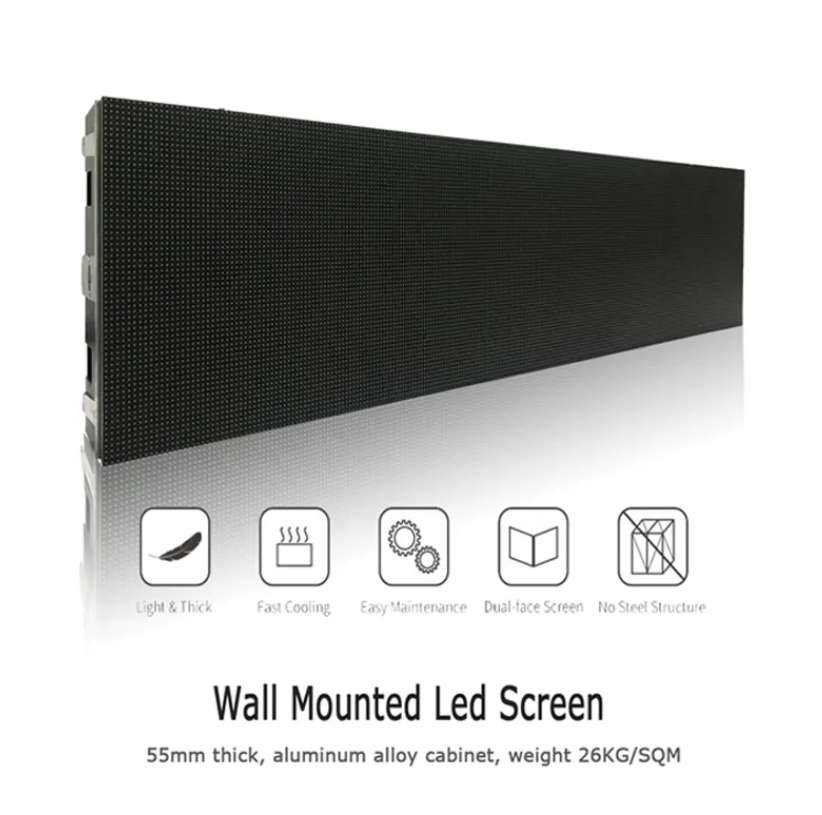

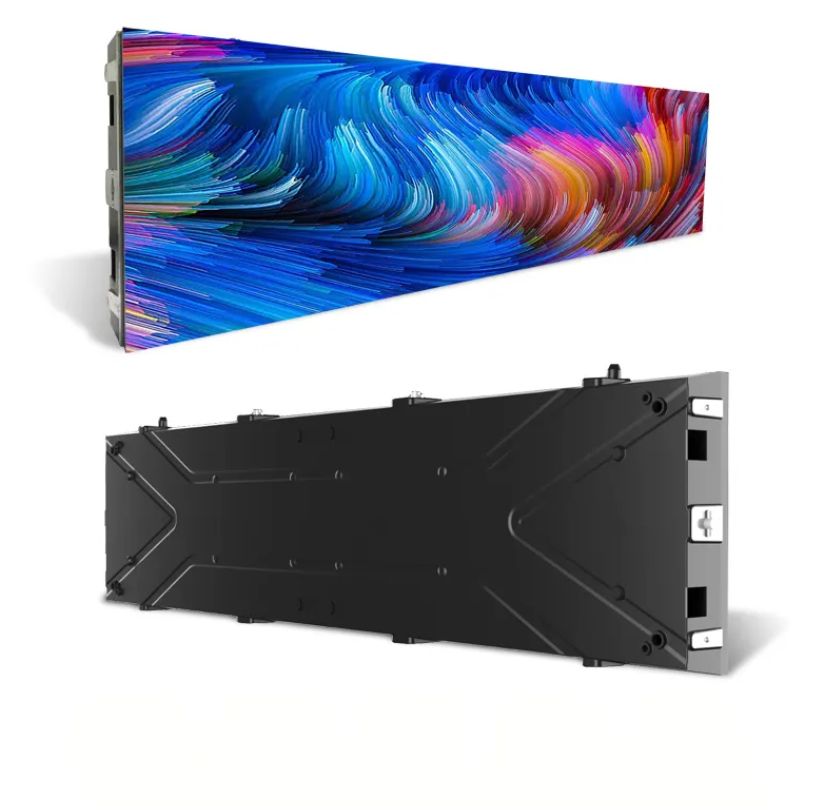

• Standard Cabinet Size: 1000mm x 250mm – Flexible for easy wall mounting with no need for steel structure.
• Cabinet Weight: 6kg – Lightweight, making installation easier.
• Waterproof Level: IP43 – Suitable for indoor use, protecting against dust and water ingress.

Display Performance:

• Brightness: ≥1200 cd/sqm – Adjustable via software, providing bright visuals even in well-lit environments.
• Viewing Distance: 4m to 40m – Ideal for use in medium to large-sized venues.
• Viewing Angle: H: 120°; V: 120° – Wide viewing angles for clear visibility from various angles.
• Refresh Rate: 2880Hz – Adjustable, offering smooth video playback and reducing flicker.
• Frame Rate: 120 frame/s – High frame rate for smoother video playback and animations.
• Grey Scale: 16.7M colors – True-to-life color representation and smooth gradation.
• Color Temperature: RGB brightness 256 level adjustable – Customize the screen's color temperature for optimal display.

Power Specifications:

• Power Input: AC110V/220V ±10%, 50Hz – Flexible power options for various regions.
• Average/Max Power Consumption: 300W/sqm - 392W/sqm – Energy-efficient and suitable for long-term operation.

Durability and Environmental Ratings:

• MTBF (Mean Time Between Failures): >10,000 Hours – Ensuring longevity and reliability.
• Life Span: >100,000 Hours – Long operational life, making it cost-effective over time.
• Storage Temperature: -30℃~+70℃
• Working Temperature: -20℃~+50℃
• Operating Humidity: 10%~90% RH

Control and Compatibility:

• Control Method: Synchronous, Asynchronous, 3G, WIFI, USB – Flexible control options for remote management.
• PC Display Resolution: 1280x1024 – Standard display resolution for PC use.
• Control PC: Requires a DVI Graphic Card.
• Operating System: Compatible with Windows 98, Win2000, XP, Win7, Win8, Win10.
• Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Advantages:

1. Front Service Design: Magnetic modules allow for easy maintenance without leaving space between the screen and wall.
2. Flexible Mounting: Can be directly mounted on the wall with no need for extra steel structure, offering a streamlined look.
3. Customizable Panel Sizes: Available panel sizes include 500x500mm, 750x500mm, and 1000x500mm, allowing for tailored installation.
4. Wide Range of Pixel Pitches: Available in P2.6, P2.976, P3.91, and P4.81 pixel pitches, making it suitable for various viewing distances and applications.

The P3.91 Indoor LED Screen is an ideal solution for businesses and venues requiring high-quality, efficient, and flexible digital signage solutions with easy installation and maintenance.
