SWZ100-4 Wheel-mounted Combination Station
- Section : Machinery
- Category : Crushers
- SKU : 1601368294423

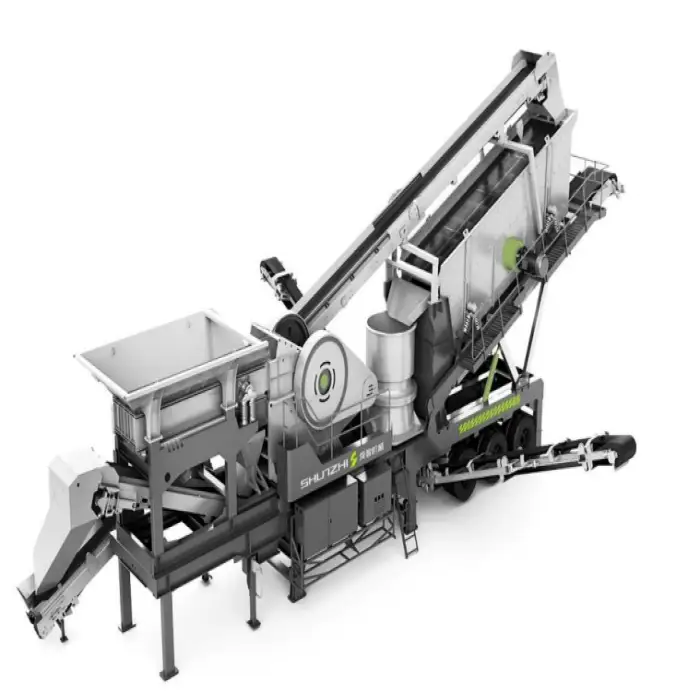

SWZ100-4 Wheel-mounted Combination Station
The integrated unit of integrated mobile station (i. e., integrated mobile crushing station) reduces the requirements of separate components on site infrastructure and the difficulty of installation of auxiliary facilities, which can save a lot of capital construction and relocation costs. The material can be broken on site and moved with the advancing of the raw material mining face, which greatly reduces the transportation cost of the material. Truly provide customers with efficient, low - cost project operation hardware facilities.
Key Features:
1.Machine: SWZ100-4 Wheel-mounted Combination Station
2.Capacity:450TPH
3.Input size: as large
4.Output size:5cm
Flow Chart:
Device Configuration:
| SWZ100-4 Wheel-mounted Combination Station ’s Configuration | |
|---|---|

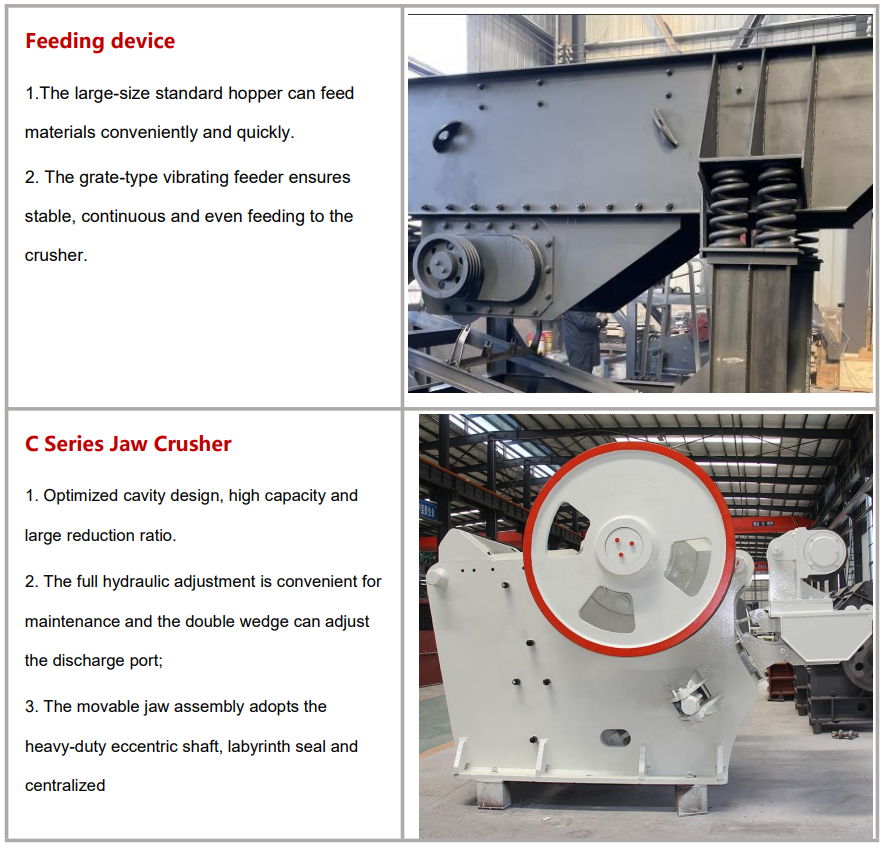

| Feeder Machine | FD8530 Model Vibrating Feeder Machine |
| Primary Crusher | SC96 Model Jaw Crusher Machine |

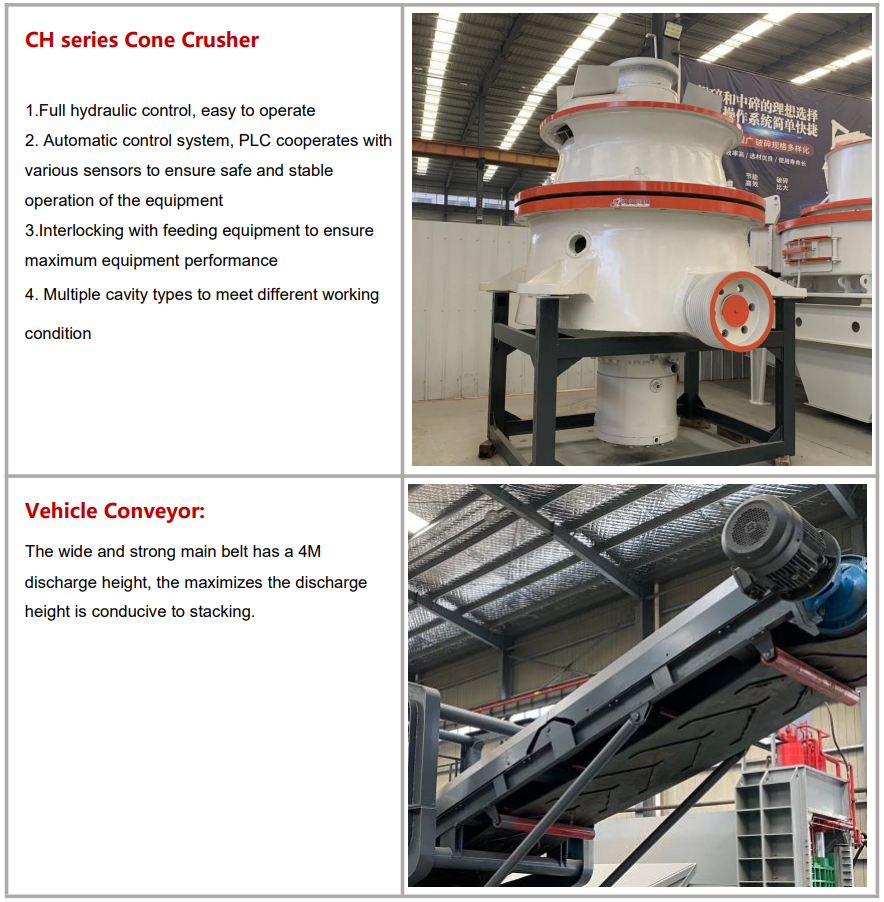

| Secondary Crusher | CH420 Cone Crusher |
| Screen machine | 3YK1560 Vibrating Screen |
| Belt Conveyor （Vehicle-mounted） | 1*B650x10.5m（main belt conveyor） |
| Belt Conveyor （Vehicle-mounted） | 1*B650x15.5m（Over – screen belt conveyor） |
| Belt Conveyor （Under Screen） | 1*B1000x8m |
| Belt Conveyor | 2*B500x15m |

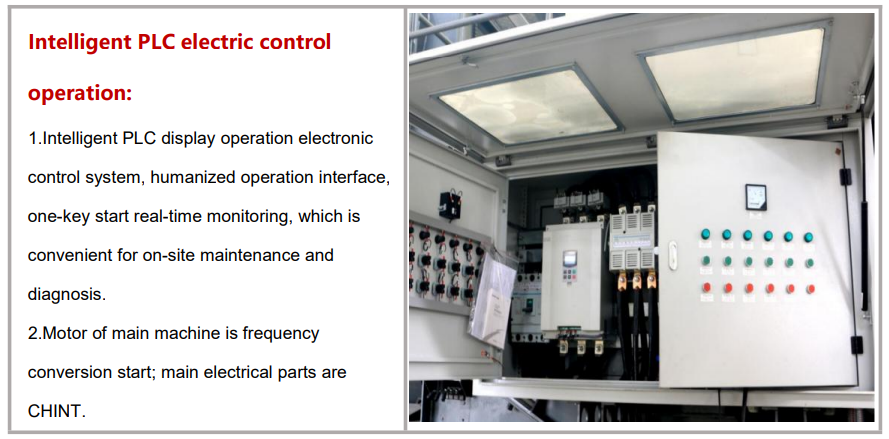

| Electrical System | Electric control cabinet |

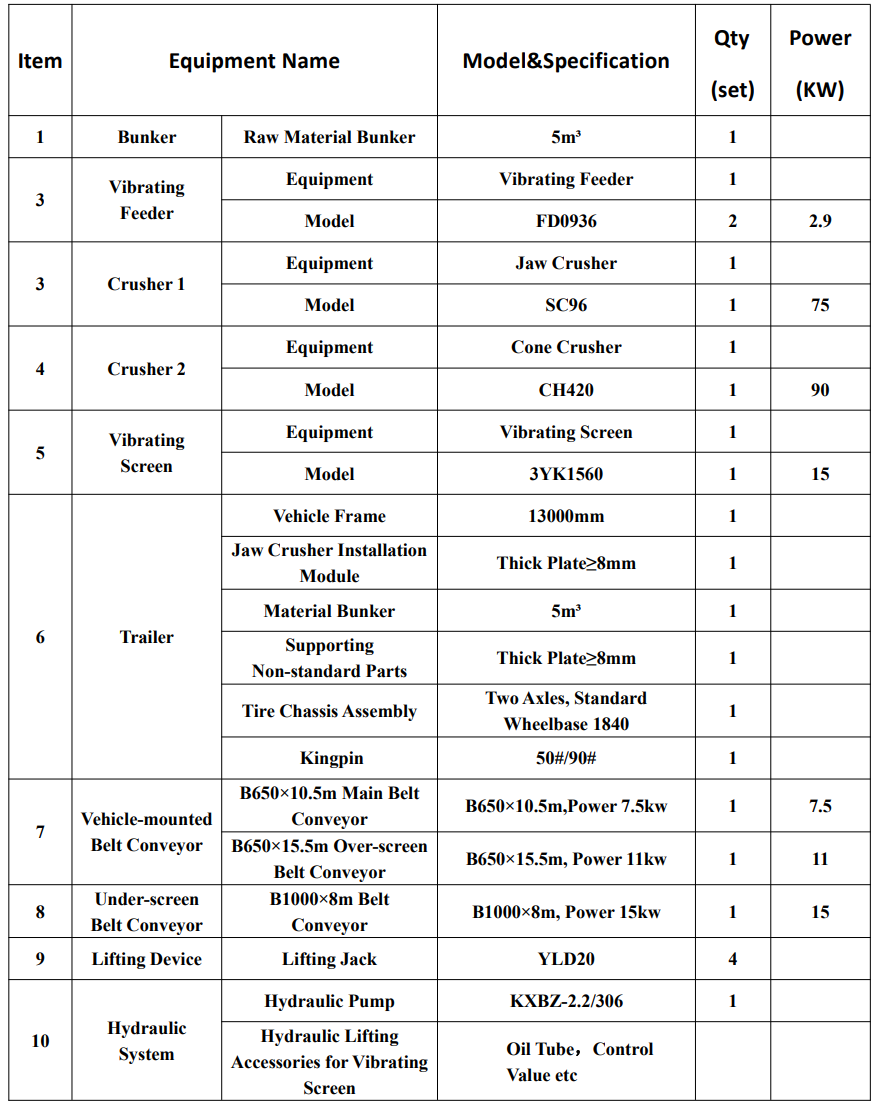

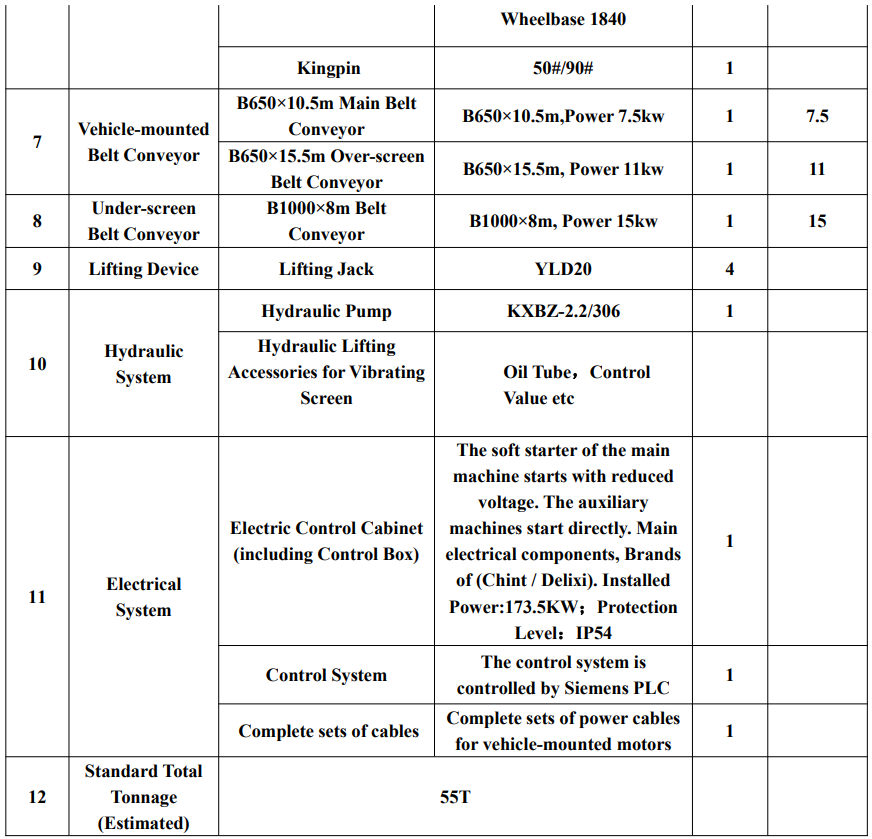

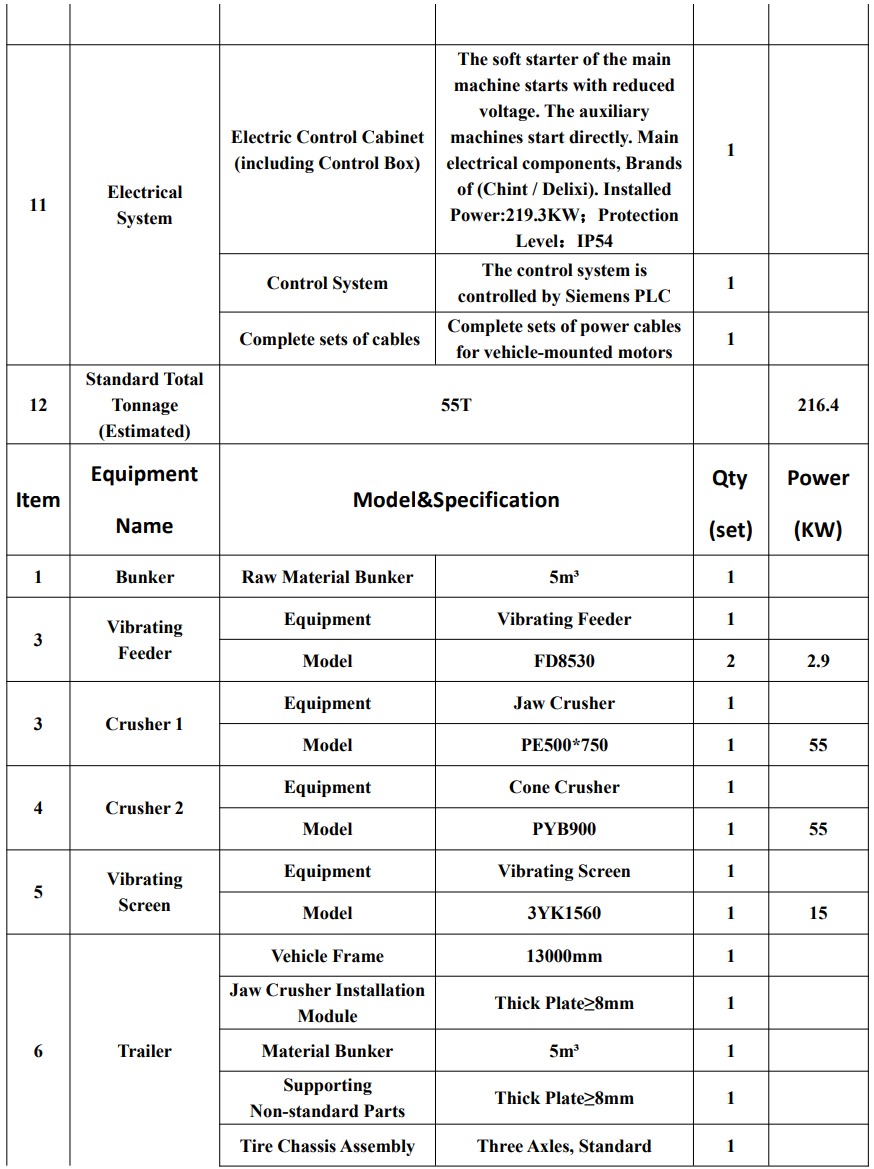

Specifications;
Product Info Gallery:
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Apr, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the capacity of the SWZ100-4 Wheel-mounted Combination Station?
The SWZ100-4 Wheel-mounted Combination Station has a capacity of 450 tons per hour (TPH).
2. What are the input and output size specifications for this product?
The input size is large, and the output size is 5 cm.
3. What types of crushing machines are included in the SWZ100-4 configuration?
The SWZ100-4 includes a primary SC96 model jaw crusher and a secondary CH420 cone crusher.
4. How does the SWZ100-4 help in reducing transportation costs?
The SWZ100-4 allows material to be crushed on-site and moved along with the raw material mining face, significantly reducing transportation costs.
5. What is the advantage of using a wheel-mounted combination station?
A wheel-mounted combination station reduces the need for separate components on-site, simplifies installation, and saves on capital construction and relocation costs.
6. What kind of feeder machine is included in the SWZ100-4?
The SWZ100-4 is equipped with an FD8530 model vibrating feeder machine.
7. Can the SWZ100-4 be easily relocated?
Yes, the wheel-mounted design of the SWZ100-4 allows for easy relocation as needed.
8. What is the purpose of the electrical control cabinet in the SWZ100-4?
The electrical control cabinet manages the operational controls and electrical systems of the SWZ100-4, ensuring efficient and safe operation.
9. What is the overall benefit of using the SWZ100-4 in a project?
The SWZ100-4 provides efficient, low-cost project operation hardware facilities, making it ideal for reducing operational complexities and costs.
10. How many belt conveyors are included in the configuration?
The SWZ100-4 configuration includes multiple belt conveyors: one main conveyor, one over-screen conveyor, one under-screen conveyor, and two additional conveyors.
11. Is the SWZ100-4 suitable for large-scale mining operations?
Yes, the SWZ100-4 is designed to handle large-scale operations with its high capacity and efficient crushing capabilities.
12. What maintenance is required for the SWZ100-4?
Regular maintenance includes checking the condition of crushers, conveyors, and electrical systems, as well as ensuring lubrication and cleaning of components.
13. What are the dimensions of the belt conveyors included?
The main belt conveyor is 1*B650x10.5m, the over-screen conveyor is 1*B650x15.5m, and there are additional conveyors with dimensions 1*B1000x8m and 2*B500x15m.
14. Does the SWZ100-4 have any specific operating requirements?
The SWZ100-4 is designed for mobile operation, with requirements primarily related to site preparation and electrical supply for the control systems.
