Sunpal Solar Waterpump System
- Section : Electrical & Tools
- Category : Solar Water Pump
- SKU : 60799697180
Sunpal Solar Waterpump System
The Sunpal Solar Waterpump System is an efficient and environmentally friendly solution for water pumping needs. Designed to harness solar power, this system provides a reliable and sustainable source of energy for pumping water, making it ideal for agriculture, irrigation, and other water-based applications. The system is built to deliver optimal performance while maintaining ease of installation and use.
Key Features
- Solar Panel: The system is powered by a 280W Mono 60 Cells solar panel, which efficiently converts sunlight into electrical energy, ensuring reliable operation throughout the day.
- DC Cable: The system includes a 4mm² DC cable for safe and efficient power transmission between the solar panel and pump.
- DC Disconnect Switch: Equipped with a 1000VDC 16A DC disconnect switch, ensuring safe operation and easy maintenance.
- AC Inverter: The system features a 15KW AC inverter, which allows the conversion of DC power from the solar panel into usable AC power for the water pump.
- Water Head Range: With a water head range of 20 to 18, this system can pump water effectively across various elevation levels, making it suitable for different terrains.
- Mounting System: The ground mounting system is designed to securely hold the solar panels in place, ensuring optimal solar exposure and efficient energy capture.
- Warranty: The Sunpal Solar Waterpump System comes with a 3-year warranty, ensuring long-lasting performance and reliability.
Conclusion
The Sunpal Solar Waterpump System is an ideal choice for anyone looking to utilize solar energy for water pumping applications. With its high-quality solar panel, efficient inverter, and reliable components, this system offers a sustainable and cost-effective way to meet your water pumping needs. It is perfect for agricultural, residential, and commercial use where water supply is essential.
Product Info Gallery
What's Included:
| Model | SP5HP-AC | SP10HP-AC | SP20HP-AC |
| 280W Mono Solar Panel (Pcs) | 20 | 40 | 80 |
| DC Disconnect Switch (Pcs) | 1 | 2 | 5 |
| Solar Pumping Inverter (#/Kw) | 1/5.5 | 1/7.5 | 1/15 |
| Solar Pump (#/Kw) | 1/3.7 | 1/5.5 | 1/13 |
| DC Cable (m) | 100 | 200 | 500 |
| MC4 Connector (Pair) | 4 | 8 | 20 |
| Water Level Switch (Pcs) | 1 | ||
| Mounting System | Ground Mounting System For STD | ||
| PV Tools | Wire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors Assembly |
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.
Solar Water Pumping System Configuration

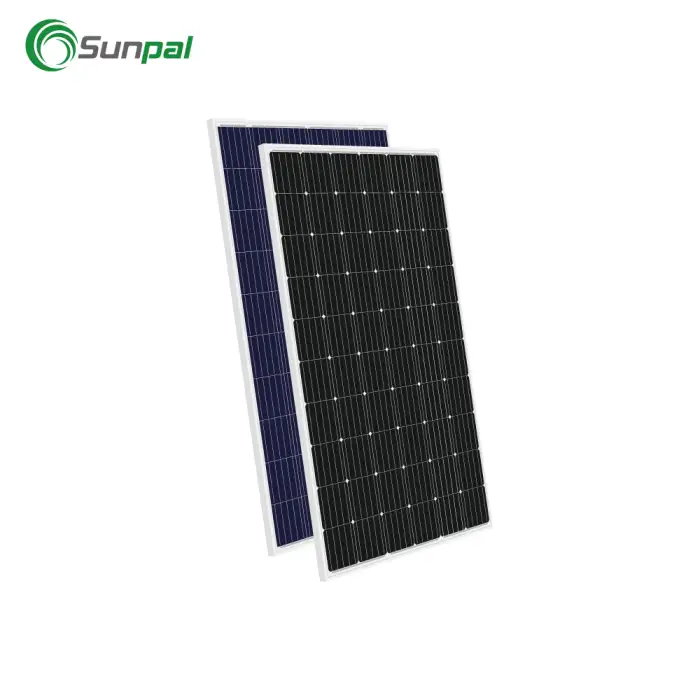

Mono Solar Panels
Peak Power Watts: 280W (SP280M-60), Poly Optional.
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

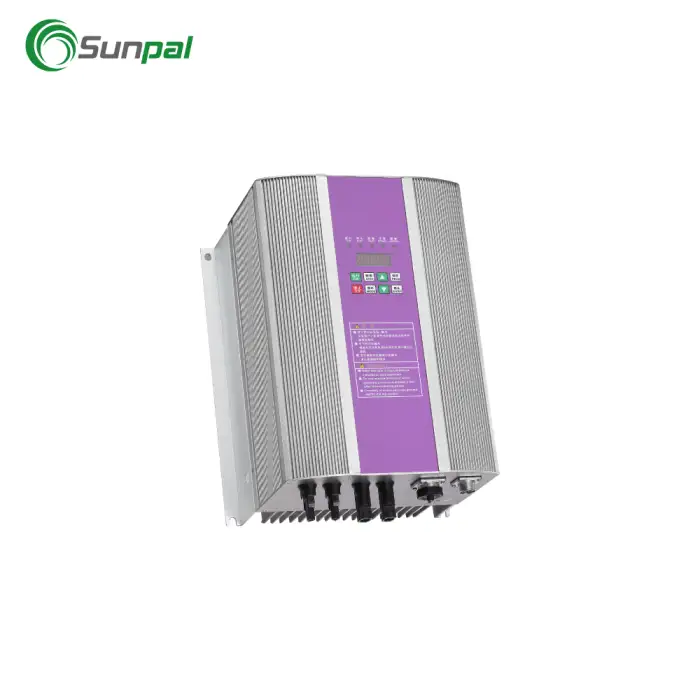

Solar Pump Inverter
Inverter Power: 5.5/7.5/15KW
Max. DC Input Voltage: 850V
MPP Voltage: 500-700VDC
Warranty: 3 Years (STD)
Wifi Stick For STD, Lan & GPRS Optional.
Water Level Switch
Water level switch is a reliable and user-friendly water level control device, it can be used for dry run protection in a well or overflow protection in a tank. The water level switch has the advantages of small size, fast response, high resistance to load impulse, and long lifetime.

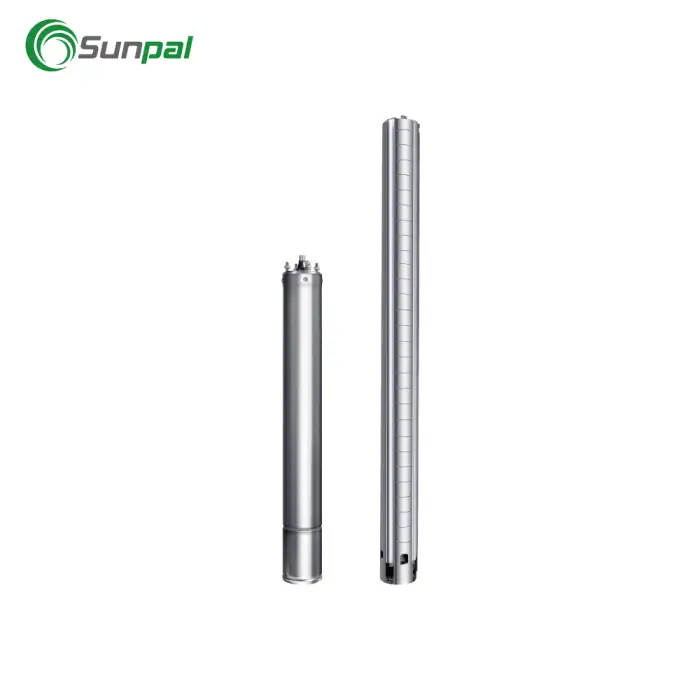

Permanent Magnet Solar Pump (AC)
Daily Water Flow: 10 - 20 m³ / 80 - 160 m3 / 700- 1100m³
Water Head: 145 - 90m / 79 - 43m / 22 - 18m
Pump Outlet Dia.: 30 mm 65 mm 150 mm
Pump Outlet Dia.: 1"1/4 2"1/2 6"
Adapting Well Dia.: 125 mm/200-250 mm/200-250 mm
Pump Body Material: AISI 304
Pump Enclosure Class: IP68
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
| Model | Single Set | 20' Container Load | 40' Container Load |
| BSM5HP-AC | 1.87 CBM | 12 Sets | 28 Sets |
| BSM10HP-AC | 3.74 CBM | 6 Set | 14 Set |
| BSM20HP-AC | 9.35 CBM | 2 Set | 5 Set |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the Sunpal Solar Waterpump System and what applications is it suitable for?
The Sunpal Solar Waterpump System is a solar‑powered water pumping solution designed for agriculture, irrigation, residential and commercial water supply. It harnesses solar panels and an inverter to run permanent magnet AC pumps for off‑grid or remote sites where sunlight is available.
2. Which models are available and what does each include?
Models: SP5HP-AC, SP10HP-AC, SP20HP-AC. Included per model: 280W mono panels (20 / 40 / 80 pcs), DC disconnect switches (1 / 2 / 5), solar pumping inverter (1 × 5.5 / 7.5 / 15 kW), solar pump (1 × 3.7 / 5.5 / 13 kW), DC cable (100 / 200 / 500 m), MC4 connector pairs (4 / 8 / 20), water level switch (1), ground mounting system and PV tools.
3. What are the solar panel specifications?
Standard panel: 280W mono, 60 cells. Vmp 31.8 V, Imp 8.81 A, Voc 38.8 V, Isc 9.33 A. Dimensions: 1650 × 992 × 35 mm. Weight: 18.6 kg.
4. What inverter options and electrical limits does the system use?
Inverter power options: 5.5 kW, 7.5 kW and 15 kW. Max DC input voltage: 850 V. MPPT operating voltage range: 500–700 VDC. Warranty: 3 years standard. Wi‑Fi stick, LAN and GPRS are available as options for monitoring.
5. How many panels should be connected in series to reach the inverter MPPT?
Because Vmp is 31.8 V per panel, you typically need about 16 panels in series to reach ~500 V and about 22 panels for ~700 V (500/31.8 ≈ 15.7; 700/31.8 ≈ 22.0). Do not exceed the inverter max DC input of 850 V (≈26 panels max in series). Final string design should be confirmed by an installer.
6. What are the pump performance ranges (daily flow and head) for each model?
Approximate daily flows and head ranges by system: SP5HP-AC: 10–20 m³/day with pump head ~145–90 m. SP10HP-AC: 80–160 m³/day with head ~79–43 m. SP20HP-AC: 700–1100 m³/day with head ~22–18 m. Actual output depends on site solar irradiance and system configuration.
7. What are the pump physical and protection specifications?
Pumps are permanent magnet AC with bodies in AISI 304 stainless steel. Outlet diameters: 1" (30 mm), 1¼" (65 mm), 2½" (150 mm) depending on model. Pump enclosure rating: IP68. Suitable for submerged/well and tank applications.
8. Does the system include dry‑run protection?
Yes. Each system includes a water level switch for dry‑run protection in wells and overflow protection for tanks. The switch is fast‑response, compact and designed for long life.
9. What are the DC cable, connector and disconnect switch specifications?
Standard DC cable supplied is 4 mm² (6 mm² optional). Rated voltage: 600 VDC (UL) / 1000 VDC (TUV). Rated current: 55 A (4 mm²) / 70 A (6 mm²). MC4 connectors supplied per model (4/8/20 pairs). DC disconnect switch: 1000 VDC rated voltage, available in 16 A and 20 A options, IP66 rated, M20/M25/MC4 connections.
10. What mounting and PV hardware are provided?
A ground mounting system is supplied for standard installations. Rails are aluminum AI6005 with SUS304 bolts, mid and end clamps in several sizes, L‑foot and asphalt/hanger bolt options, and optional cable clips, ground clips and lugs.
11. Is the system suitable for off‑grid use and does it include batteries?
The system is a direct solar pumping solution (PV → inverter → AC pump) and does not include batteries. It operates when sufficient sunlight is available. For 24/7 operation or night pumping you would need to integrate energy storage or an alternate power source, which is not included by default.
12. What monitoring and connectivity options are available?
Optional monitoring via a Wi‑Fi stick is available, and LAN or GPRS connectivity can be added for remote monitoring and data logging. The inverter supports these optional modules.
13. What warranty and expected lifetimes are provided?
Standard warranty is 3 years for the system. Typical component lifetimes: solar panels and DC cables are rated for long service life (DC cable lifetime ≤ 25 years). Regular maintenance extends service life.
14. What maintenance is required and how often should I service the system?
Recommended maintenance: clean panels periodically (dust/soiling), inspect and tight‑check electrical connections and MC4 connectors, check DC disconnect switch function, verify pump seal and wiring, and test water level switch. Visual inspections every 3–6 months and a professional service annually are typical.
15. How is the system shipped and what are container load quantities?
Shipping volumes per model: BSM5HP-AC: single set 1.87 CBM — 20' container 12 sets, 40' container 28 sets; BSM10HP-AC: single set 3.74 CBM — 20' container 6 sets, 40' container 14 sets; BSM20HP-AC: single set 9.35 CBM — 20' container 2 sets, 40' container 5 sets. Actual packaging and loads may vary.
