Small Tabletop SMT Pick and Place Machine for PCBA Prototyping and Small Batch Production
- Section : Machinery
- Category : Industrial Machinery
- SKU : 11000018555827

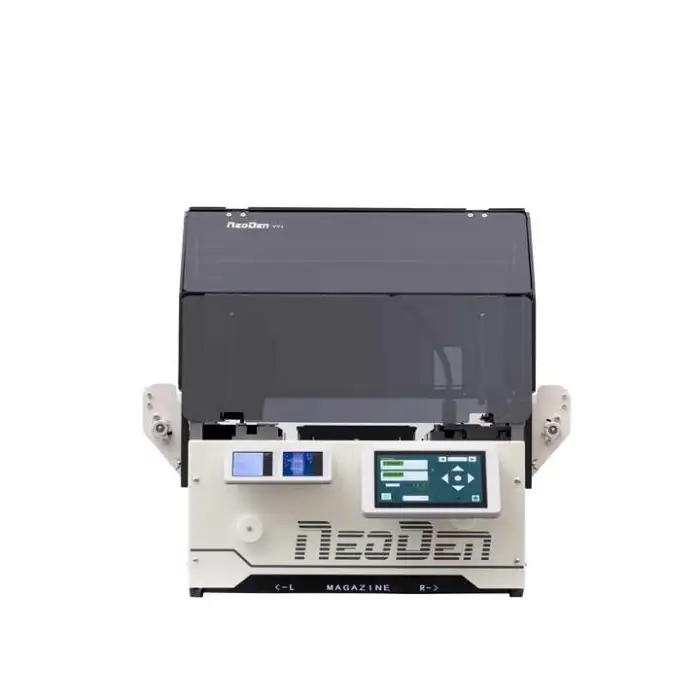

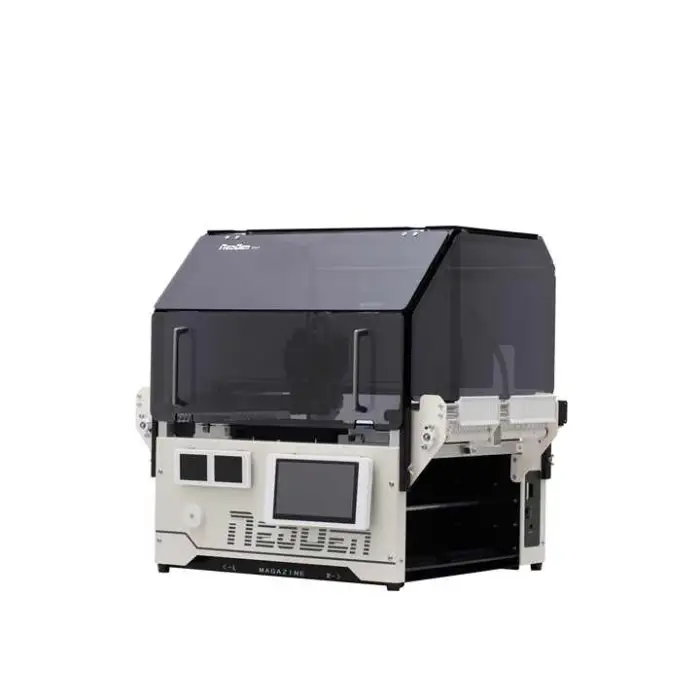

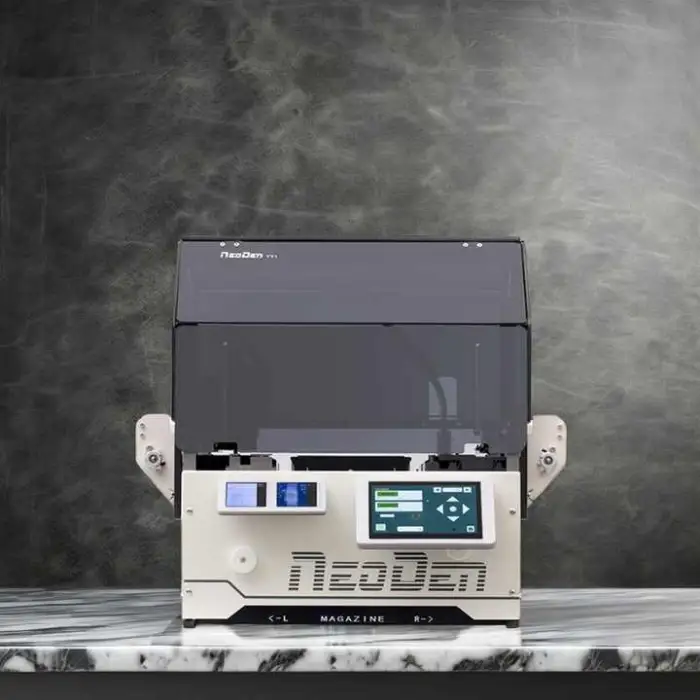

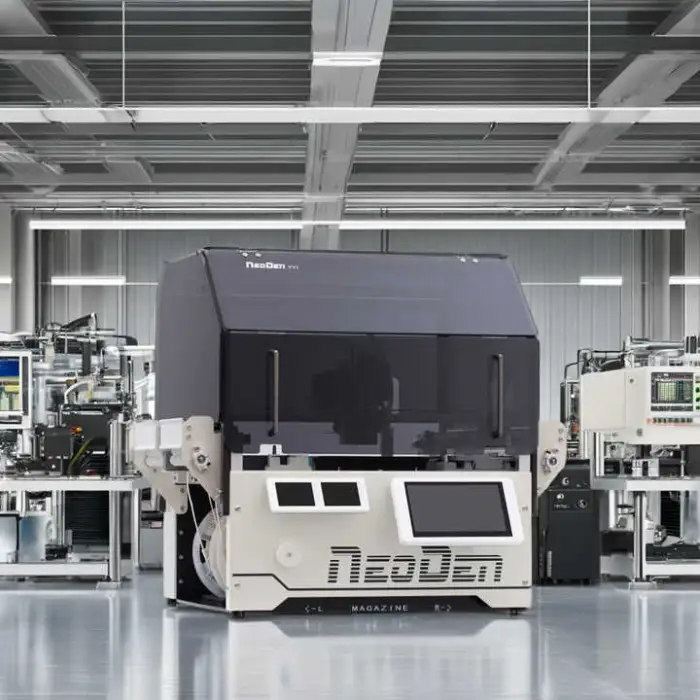

Small Tabletop SMT Pick and Place Machine for PCBA Prototyping and Small Batch Production
The Small Tabletop SMT Pick and Place Machine is perfect for PCBA prototyping and small batch production. This machine is designed to make your assembly process easier and faster. With its high placement rate and precision, you’ll get great results every time. Whether you are working on prototypes or small production runs, this machine will meet your needs.
Specifications
| Attribute | Details |
|---|---|
| Weight (kg) | 47 |
| Brand Name | NeoDen |
| Number of Heads | 2 |
| Placement Rate | 4000 CPH (without vision); 3000 CPH (with vision) |
| Tape Width | 8mm, 12mm, 16mm |
| Smallest Component Size | 0201 |
| Largest Component Size | 18mm x 18mm |
| Max Component Height | 12mm |
| Placement Accuracy | ±0.02mm |
| Applicable PCB Area | 249 x 350 (dual sides tape feeder), 315 x 350 (single side tape feeder) |
| Item | SMD machine pcb assembly machine for prototype auto nozzle changer |
| Application | SMT Production Line / PCB Assembly Line |
| Selling Units | Single item |
| Single Package Size | 75 x 65 x 65 cm |
| Single Gross Weight | 57.000 KG |
Key Features
- High placement rate of up to 4000 components per hour.
- Supports a wide range of component sizes.
- Placement accuracy of ±0.02mm for precise assembly.
- Easy to use for both prototyping and small batch production.
- Includes a machinery test report for quality assurance.
Applications
- PCBA prototyping for new designs.
- Small batch production for limited runs.
- Education and training in electronics assembly.
- Hobby projects and DIY electronics.
- Research and development in electronics.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 05 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the weight of the Small Tabletop SMT Pick and Place Machine?
The Small Tabletop SMT Pick and Place Machine weighs 47 kg.
2. What is the maximum placement rate of this machine?
The machine has a maximum placement rate of 4000 components per hour without vision and 3000 components per hour with vision.
3. What sizes of components can this machine handle?
The machine can handle the smallest component size of 0201 and the largest component size of 18mm x 18mm.
4. What is the placement accuracy of the machine?
The placement accuracy of the machine is ±0.02mm.
5. What is the applicable PCB area for this machine?
The applicable PCB area is 249 x 350 mm with dual sides tape feeder and 315 x 350 mm with a single side tape feeder.
6. How many heads does this SMT machine have?
The Small Tabletop SMT Pick and Place Machine has 2 heads.
7. Can this machine be used for educational purposes?
Yes, this machine is suitable for education and training in electronics assembly.
8. What types of projects can benefit from using this machine?
The machine is ideal for PCBA prototyping, small batch production, hobby projects, DIY electronics, and research and development.
9. Is the machine easy to operate for beginners?
Yes, the machine is designed to be user-friendly for both beginners and experienced users, making it suitable for prototyping and small batch production.

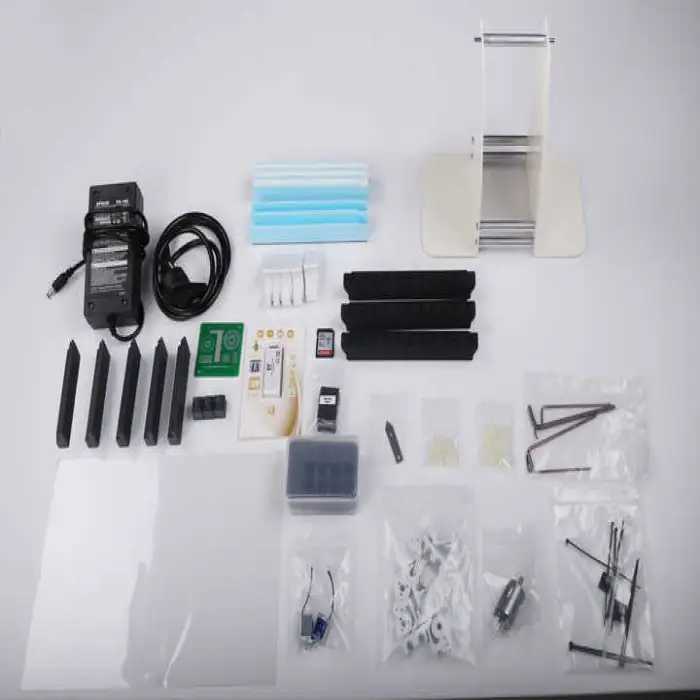

10. What is included with the purchase of the machine?
The purchase includes a machinery test report for quality assurance.
11. What is the single package size of the machine?
The single package size of the machine is 75 x 65 x 65 cm.
12. What type of assembly line can this machine be used in?
This machine can be used in SMT production lines and PCB assembly lines.
13. What is the maximum component height this machine can accommodate?
The maximum component height that the machine can accommodate is 12mm.
14. What tape widths are compatible with the machine?
The machine supports tape widths of 8mm, 12mm, and 16mm.
15. Can the machine be used for mass production?
This machine is primarily designed for prototyping and small batch production, not for large-scale mass production.
