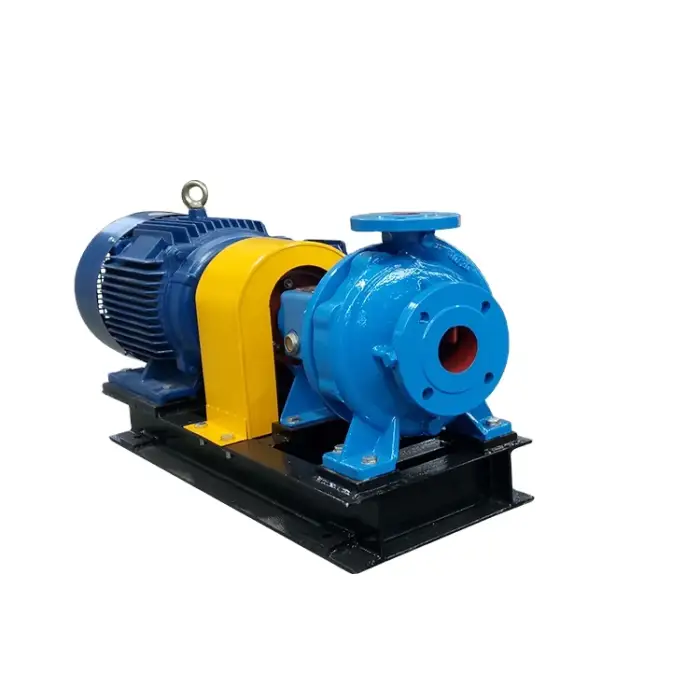

Single-Stage Single-Suction Centrifugal Pump (Pipeline Pump) – Model SW250-400
- Section : Machinery
- Category : Irrigation Systems
- SKU : 160059890427493
The SW250-400 Single-Stage Single-Suction Centrifugal Pump is a robust and efficient solution engineered for the circulation of hot or cold water in industrial and underground systems. Built for continuous operation under wet conditions, it combines durability, reliability, and superior hydraulic performance to meet demanding application requirements.
Key Specifications:
Model: SW250-400
Flow Rate: 479 m³/h
Head: 52 m
Power: 110 kW / 4-pole motor
Speed: 1450 rpm
Voltage: 525 V
Size: 250 mm (10 inch)
Body Material: Cast Iron
Seal Material: Fluoroelastomer (provides excellent resistance to heat, chemicals, and wear)
Dimensions: 1550 × 600 × 1150 mm
Weight: 1220 kg
Applications:
Ideal for circulating hot or cold water in power plants, HVAC systems, industrial processes, and underground installations. Designed for efficient heat exchange and long-lasting performance in wet or corrosive environments.
Features:
High-efficiency hydraulic design for optimized energy use and stable performance.
Sturdy cast iron body ensures extended durability and mechanical strength.
Fluoroelastomer sealing offers superior temperature and chemical resistance.
Smooth operation with minimal vibration and noise.
Reliable 1450 rpm speed for consistent flow and pressure output
Product Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum flow rate of the SW250-400 pump?
The SW250-400 pump has a maximum flow rate of 479 m³/h.
2. What is the head capacity of the SW250-400 pump?
The SW250-400 pump has a head capacity of 52 meters.
3. What type of motor is used in the SW250-400 pump?
The SW250-400 pump is equipped with a 110 kW 4-pole motor.
4. What is the operating speed of the SW250-400 pump?
The operating speed of the SW250-400 pump is 1450 rpm.
5. What is the voltage requirement for the SW250-400 pump?
The SW250-400 pump operates at a voltage of 525 V.
6. What is the size of the inlet and outlet for the SW250-400 pump?
The size of the inlet and outlet for the SW250-400 pump is 250 mm (10 inches).
7. What material is the body of the SW250-400 pump made from?
The body of the SW250-400 pump is made from cast iron, ensuring durability and mechanical strength.
8. What type of sealing material is used in the SW250-400 pump?
The SW250-400 pump uses fluoroelastomer sealing, which provides excellent resistance to heat, chemicals, and wear.
9. What are the dimensions of the SW250-400 pump?
The dimensions of the SW250-400 pump are 1550 mm in length, 600 mm in width, and 1150 mm in height.
10. How much does the SW250-400 pump weigh?
The SW250-400 pump weighs 1220 kg.
11. What applications is the SW250-400 pump suitable for?
The SW250-400 pump is ideal for circulating hot or cold water in power plants, HVAC systems, industrial processes, and underground installations.
12. What features make the SW250-400 pump efficient?
The SW250-400 pump features a high-efficiency hydraulic design for optimized energy use, sturdy cast iron construction, and smooth operation with minimal vibration and noise.
13. Is the SW250-400 pump suitable for corrosive environments?
Yes, the SW250-400 pump is designed for long-lasting performance in wet or corrosive environments.
14. Can the SW250-400 pump operate continuously?
Yes, the SW250-400 pump is engineered for continuous operation under wet conditions.
