The maximum coil loading weight for the Sheet Metal Steel Coil Uncoiler Leveler 3 in 1 Decoiler Straightener Feeder Machine is 5 tons.
This machine can handle high tensile steel, stainless steel (SS), mild steel (MS), and aluminum (AL).
The machine has adjustable feeding speeds of 15 m/min and 20 m/min.
The machine can process materials with a thickness ranging from 0.5 mm to 4.5 mm.
The maximum coil width that can be used with this machine is 600 mm.

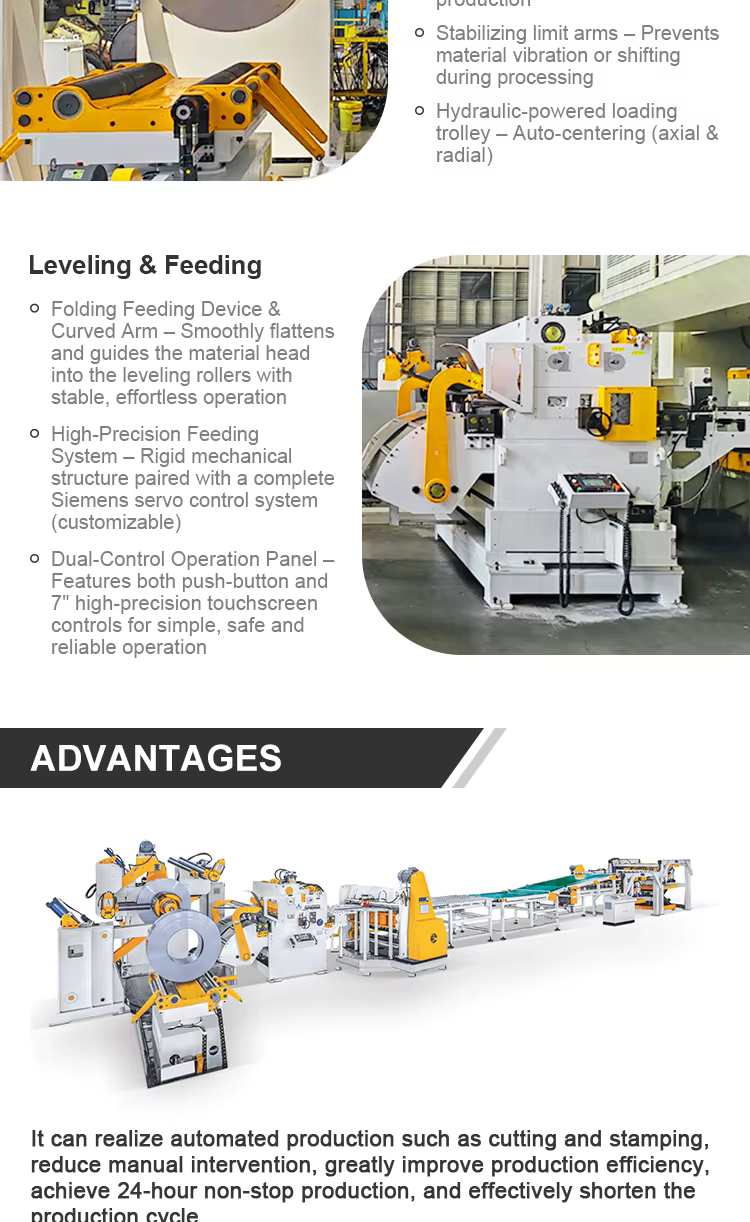

The machine combines decoiling, straightening, and feeding functions into one unit, which streamlines the production process and saves time and effort.
Yes, the machine is designed to be easy to operate, making it suitable for users of all skill levels.
The machine comes with a warranty period of 1 year.
The total power consumption of the machine is 12 KW.
The machine weighs approximately 5000 kg.
This machine is suitable for various industries, including sheet metal fabrication, industrial manufacturing processes, automotive parts production, construction, and home appliance manufacturing.
The machine accepts coils with an inner diameter (I.D.) of 508 mm.
The maximum coil outer diameter (O.D.) that the machine can handle is 1500 mm.
The feeding direction for this machine is fixed from left to right.
Yes, the machine has a durable design intended for long-lasting use in demanding environments.
