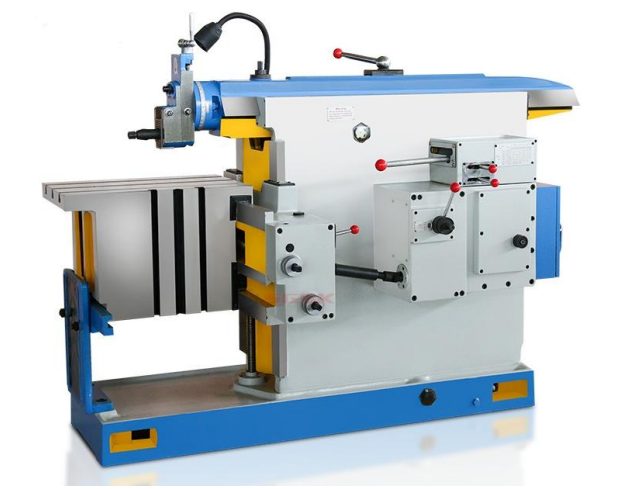

The maximum ram shaping length of the Shaper Machine is 660 mm.
The ram moving frequency can operate between 14 to 80 times per minute.
The table size of the Shaper Machine is 660 mm x 400 mm.
The horizontal travel distance of the table is 630 mm.
The vertical travel distance of the table is 360 mm.
The distance between the ram's lower end and the table surface is 385 mm.
The tool head travel distance is 120 mm.
The tool head can tilt at an angle of ±60 degrees.
The tool size compatible with the Shaper Machine is 20 mm x 30 mm.
The width of the table's T-slot is 18 mm.
The main motor power of the Shaper Machine is 3 kW.
The total weight of the Shaper Machine is 1920 kg.
The overall dimensions of the Shaper Machine are 2000 mm (L) x 1300 mm (W) x 1650 mm (H).
Yes, with its robust build and powerful motor, the Shaper Machine is suitable for heavy-duty operations.
Yes, the Shaper Machine is versatile and can be used for shaping a variety of materials, including metals and plastics.
