Rewinding and Unwinding Machine for Lithium Battery Lab Research
- Section : Machinery
- Category : Industrial Machinery
- SKU : 1601389540133

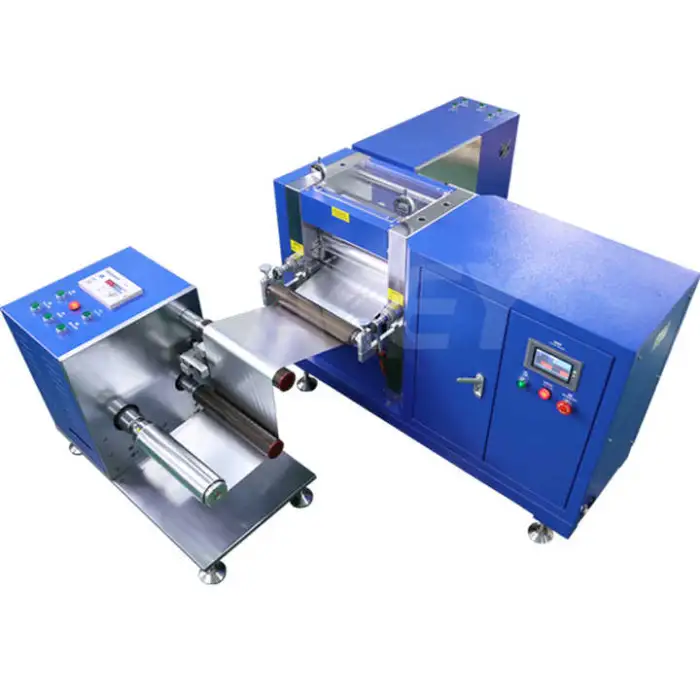

Rewinding and Unwinding Machine for Lithium Battery Lab Research
The Rewinding and Unwinding Machine is a powerful tool designed for lithium battery lab research. It helps researchers manage the winding and unwinding processes effectively. With a robust design and advanced features, this machine ensures precision and reliability in your lab work.
Specifications
| Attribute | Details |
|---|---|
| Power | 1 kW |
| Voltage | 220 V |
| Weight | 600 kg |
| Model No. | ACEY-RW300 |
| Rolling Force | Max 25 t |
| Mechanical Speed | Max 6 m/min |
| Work Roll Diameter | 200 mm |
| Roller Material | 9Cr3Mo |
| Roller Surface Width | 330 mm |
| Press Down Type | Hydraulic |
| Rolling Accuracy | ±1.5 μm |
| Operation Method | Automatic |
| Rolling Mill Opening | 2 mm |
| Single Package Size | 150 x 60 x 140 cm |
| Single Gross Weight | 650 kg |
Key Features
- High power of 1 kW for efficient operation.
- Automatic operation for user-friendly handling.
- Hydraulic press down type for optimal performance.
- Precision rolling accuracy of ±1.5 μm.
- Robust construction with a weight of 600 kg.
Applications
- Research and development in lithium battery technology.
- Winding and unwinding of battery cells.
- Testing and quality assurance in battery manufacturing.
- Material preparation for battery assembly.
- Experimental setups for new battery designs.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 05 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the main purpose of the Rewinding and Unwinding Machine?
The main purpose of the Rewinding and Unwinding Machine is to facilitate the winding and unwinding processes of lithium battery cells during lab research, ensuring precision and reliability.
2. What are the specifications of this machine?
The machine has a power of 1 kW, operates at 220 V, weighs 600 kg, and features a maximum rolling force of 25 t and a mechanical speed of up to 6 m/min.
3. How accurate is the rolling process?
The machine provides a rolling accuracy of ±1.5 μm, ensuring high precision in the winding and unwinding processes.
4. What is the maximum work roll diameter?
The maximum work roll diameter of the machine is 200 mm.
5. Is the operation of the machine automated?
Yes, the Rewinding and Unwinding Machine features automatic operation for user-friendly handling.
6. What type of hydraulic system does the machine use?
The machine uses a hydraulic press down type for optimal performance during the winding and unwinding processes.
7. What are the dimensions of the machine?
The single package size of the machine is 150 x 60 x 140 cm.
8. What is the weight of the machine?
The machine weighs 600 kg, making it robust and stable during operation.
9. What applications is this machine suitable for?
This machine is suitable for research and development in lithium battery technology, winding and unwinding of battery cells, testing and quality assurance in battery manufacturing, and material preparation for battery assembly.
10. What is the roller material used in the machine?
The roller material used in this machine is 9Cr3Mo, which provides durability and strength.
11. Can this machine be used for experimental setups?
Yes, the machine can be used for experimental setups focused on new battery designs, making it versatile for research purposes.
12. What is the maximum roller surface width?
The maximum roller surface width is 330 mm.
13. What is the rolling mill opening size?
The rolling mill opening size is 2 mm.
14. How can I ensure the machine runs effectively?
To ensure effective operation, regularly maintain the machine, follow the manufacturer's guidelines, and ensure it is set up correctly for the specific winding or unwinding tasks.
15. Where can I find product information and galleries?
Product information and galleries can typically be found on the manufacturer's website or through their customer support channels.
