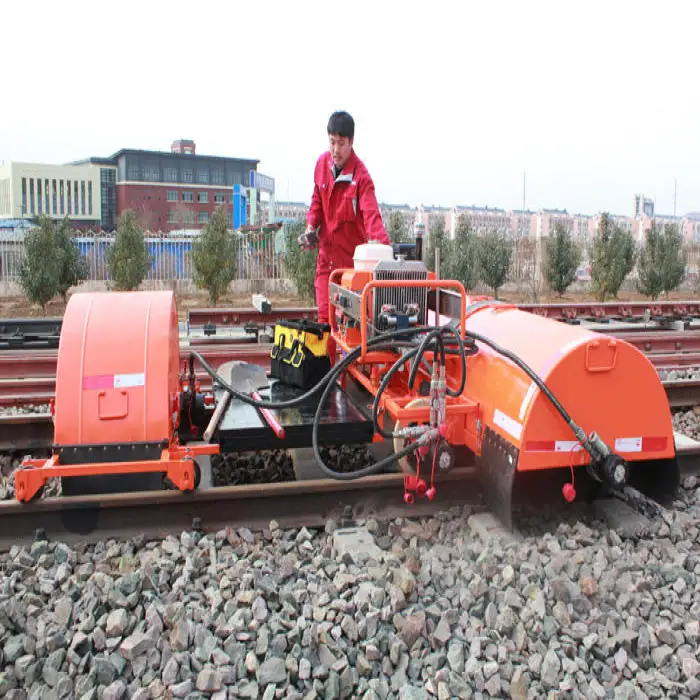

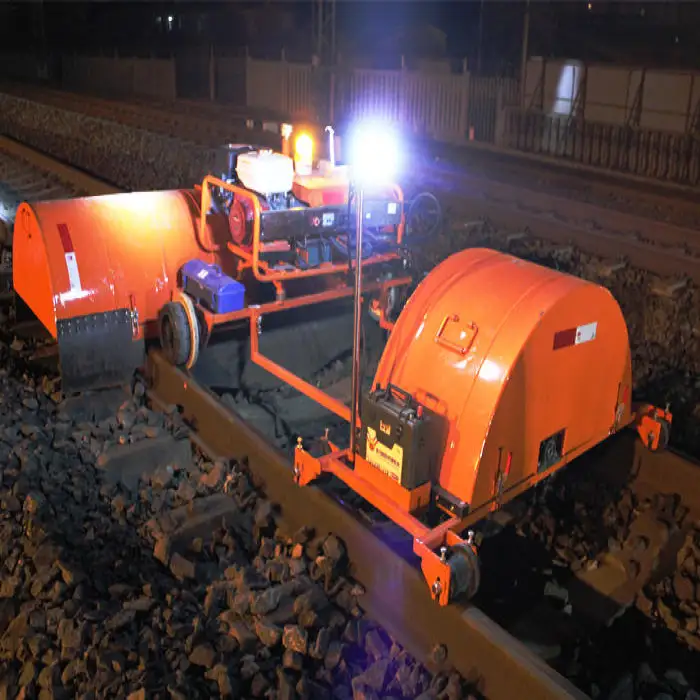

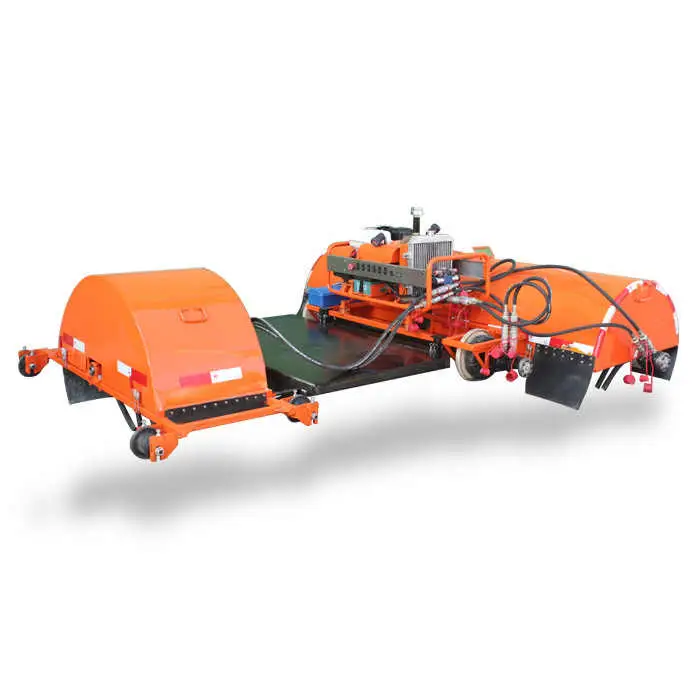

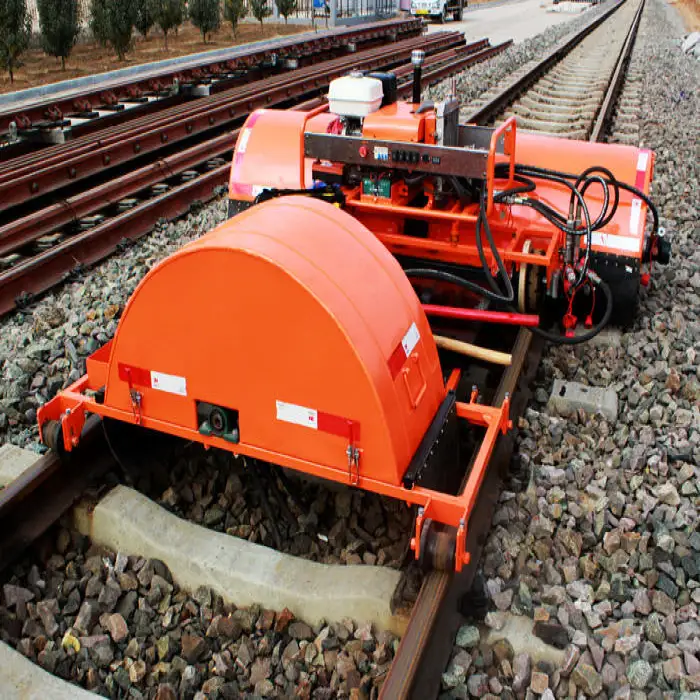

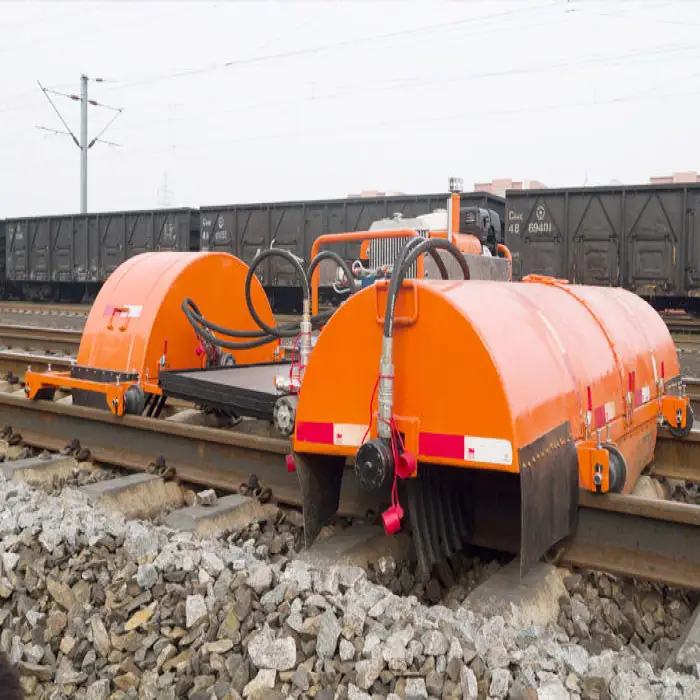

The ZYSZ-5 Ballast Profiling Machine is designed for efficient ballast profiling and sweeping, ensuring safe and functional railroad tracks.
The overall dimensions of the ZYSZ-5 Ballast Profiling Machine are 2800 mm x 2800 mm x 1200 mm.
The ZYSZ-5 is powered by a GX270 gasoline engine, providing a power output of 5.1 KW.
The fuel consumption of the gasoline engine is 1.1 liters per kilometer.
The ZYSZ-5 has a working efficiency of over 2 km/h.
The ZYSZ-5 is constructed from robust steel, ensuring durability and longevity.
The whole machine weight is less than or equal to 464 kg, while the maximum weight of a single equipment unit is 98 kg.
Yes, the ZYSZ-5 is suitable for both small and large railway maintenance projects.
The maximum system pressure for the ZYSZ-5 is 8 MPa.
The time required for replacement or repair using the ZYSZ-5 is 2 hours or less.
The ZYSZ-5 operates at an output voltage of 12 V.
Yes, the ZYSZ-5 features a compact design that allows for easy maneuverability.
Key features include robust steel construction, a high-performance gasoline engine, efficient ballast profiling and sweeping capabilities, and fast working speed.
The ZYSZ-5 Ballast Profiling Machine is manufactured by Tiegong.
The ZYSZ-5 is ideal for railway track maintenance, replacing and repairing sleepers, and effective ballast cleaning and profiling.
